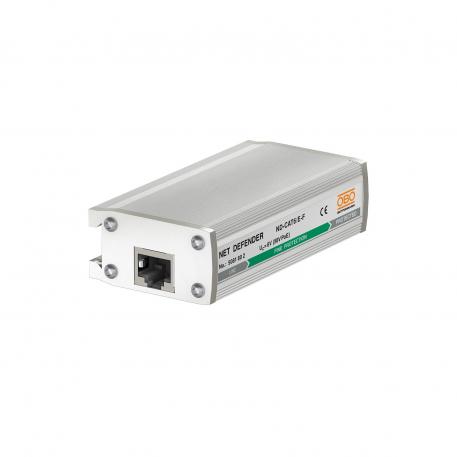

Surge protection for high-speed networks up to 1 GBit (Class ND-CAT6/E-F)

Item no. 5081802 | EAN 4012196532766

Item no. / Types

Number of poles	8

Version for	Fine protection, 8 wires + shield

Maximum continuous voltage DC	58

Plug-in system	RJ45 8(8)

Product description

Product description

Data cable protection device for high-speed networks
• High-quality RJ45 sockets
• Low protection level at high current load
• Earthing via DIN rail or connection cable
• Support of Power over Ethernet ++ (PoE++/4PPoE) to 1 A in accordance with IEEE 802.3
• Tested transmission quality in networks up to 1 GBit/s (Class E) or CAT6
• Fast installation through plug-in version
• Incl. DIN rail fastening set and earthing cable

Application example: 1 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camera systems, ISDN S0 interfaces

Technical data

Technical data

Cable type for surge protection devices	Data cable CAT
Channel performance Ansi/EA	CAT 6
Channel performance ISO/IEC	Class E
Colour	Silver grey; RAL 7001
Dimension	58V
Earthing via:	Connection cable / DIN rail
Explosion-tested version	no
Impulse durability wire-earth	C2: 3 kV / 1,5 kA (8/20µs)
Impulse durability wire-wire	C1: 0,3 kV / 0,15 kA (8/20µs)
Insertion loss	≤3 dB
Kategorie	Type 2+3 / C2+C1
Lightning protection zone LPZ	1→3
Material	Aluminium
Maximum continuous voltage AC	41
Maximum continuous voltage DC	58

Number of poles	8
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Plug-in system	RJ45 8(8)
Protection level wire-earth	<900 V
Protection level wire-wire	<40 V
Protection rating	IP20
Screening	Direct
Shielding connection available	yes
SPD to IEC 61643-21	Class II+III / C2+C1
Telecommunications contact	no
Testing standard	IEC 61643-21
Total discharge current (8/20)	5 kA
Version for	Fine protection, 8 wires + shield

All types

All types

Types	Number of poles	Version for	Maximum continuous voltage DC	Plug-in system	Item no.	Quantity	SSU
ND-CAT6A/EA	8	Fine protection, 8 wires + shield	58	RJ45 8(8)	5081800	piece	1 piece
ND-CAT6/E-F	8	Fine protection, 8 wires + shield	58	RJ45 8(8)	5081802	piece	1 piece
