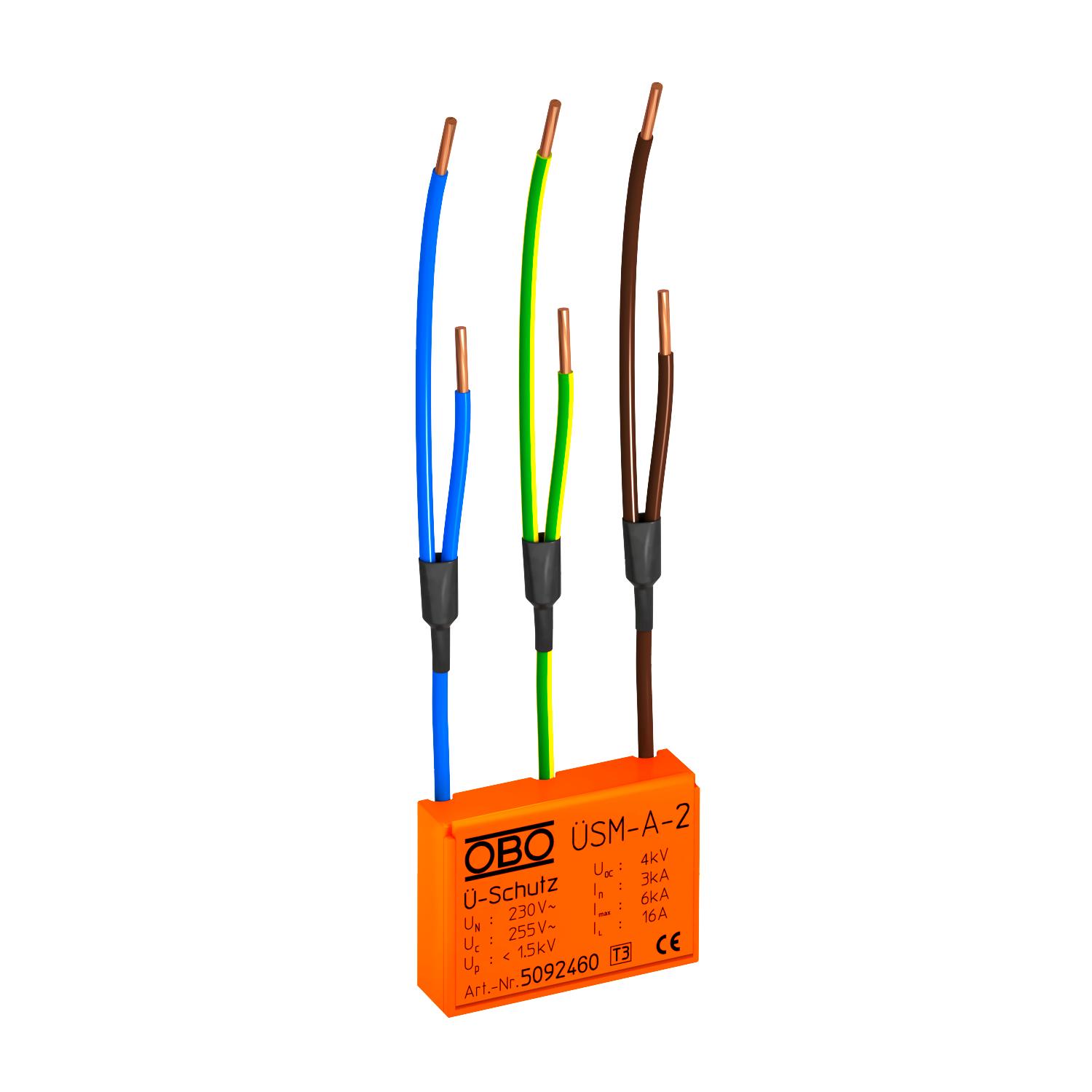

Name: Surge protective device 230 V for through wiring
Brand: OBO Bettermann
SKU: 5092460

Item no. 5092460 | EAN 4012195247098

Product description

Product description

Surge protective device type 3 to DIN EN 61643-11 for 230 V networks.

• With acoustic defect signal

• With 2 strands for continuous wiring

• With low construction height

• Halogen-free plastic (UL 94 V-0)

• Y circuit

Application: Universally applicable for all installation systems.

Technical data

Technical data

Cable type for surge protection devices	Power cable AV
Dimension	255V
Installation type	Wall socket
Lightning protection zone LPZ	2→3
Max. mains-side overcurrent protection	16
Maximum back-up fuse	16 A
Maximum continuous voltage AC	255
Maximum discharge current (8/20 μs)	6 kA
Network form	Other
Nominal discharge current (8/20 µs)	3 kA
Nominal voltage AC (50/60 Hz)	230 V

OBO_Nominal load current (input/output terminal)	16 A
Operating temperature, max.	60 °C
Operating temperature, min.	-15 °C
Pole version	1
Protection level [L-N]	≤1,3
Response time	<25 ns
Signalling on device	Acoustic
SPD to EN 61643-11	Type 3
SPD to IEC 61643-1	Class III
Version for	V connection
