Note: This article is discontinued.
You can find the current article here: 6364014 / Suspension clamp, tunnel 320
Suspension bracket for tunnels
Item no. 6364017 | EAN 4012195924470
- Product description
-
Product descriptionSpecial suspension bracket for cable support systems in tunnels. Additional variants, such as adapter or connection clamps, as well as various head shapes, on request.
-
- Technical data
-
Technical data

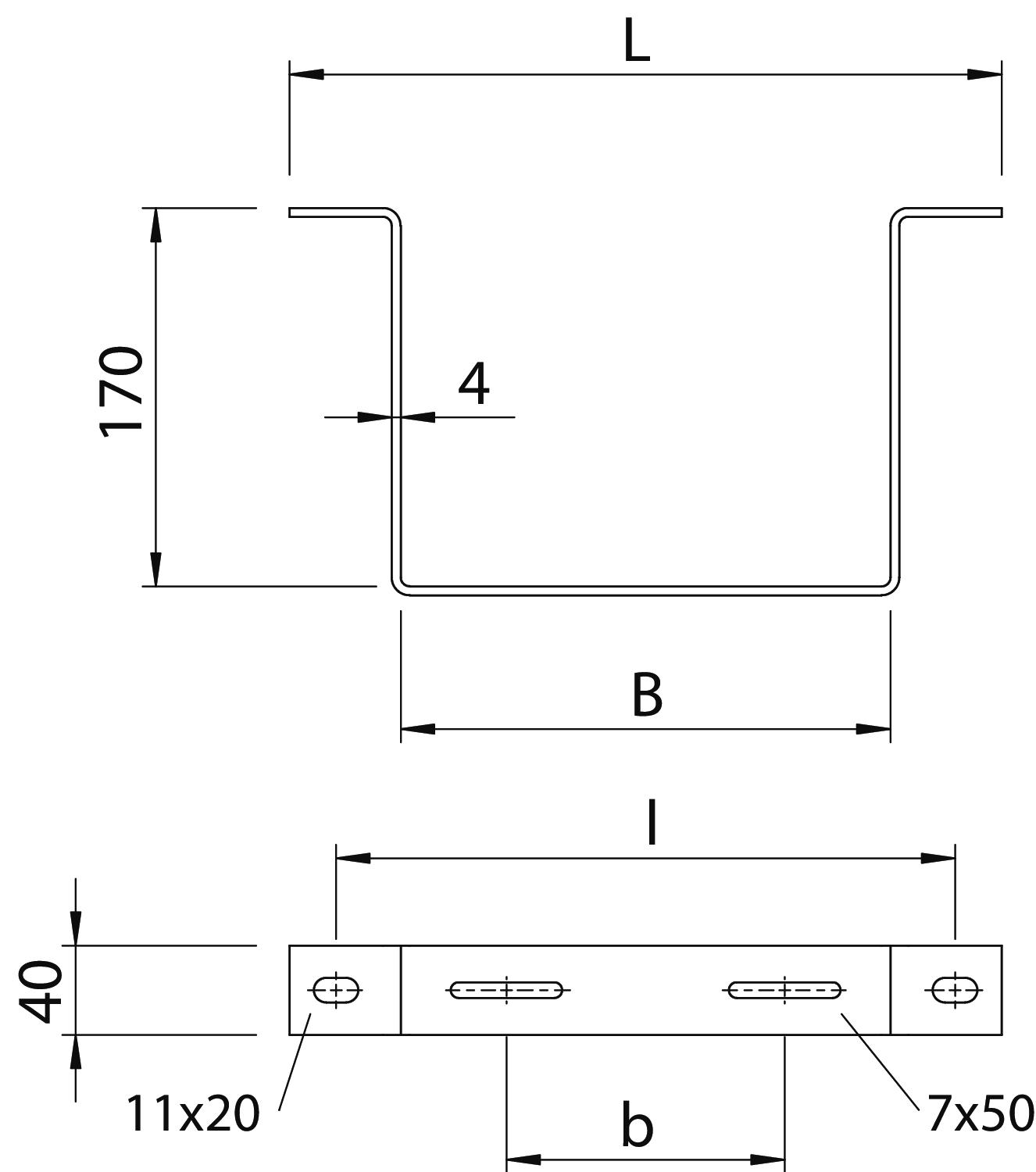

Dimension 170x420 Dimension b 225 mm Dimension B 320 mm Dimension l 380 mm Dimension L 420 mm Height 40 mm Length 170 mm Maintain electrical functions yes Material Stainless steel Material thickness 4 mm Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Surface Bright, treated Width 420 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x16 F 6406157 100 piece - Downloads
-
Data sheet AHB-T1732 VA4547 / 6364017 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity AHB-T1732 VA4547 / 6364017 , 0.10MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
