T and intersection cover, for trunking type WDK 40040 83 | 43 | 40 | Cream; RAL 9001

T and intersection cover, for trunking type WDK 40040

Item no. 6161995 | EAN 4012196581719

Item no. / Types	6161995 / WDK HT40040CW

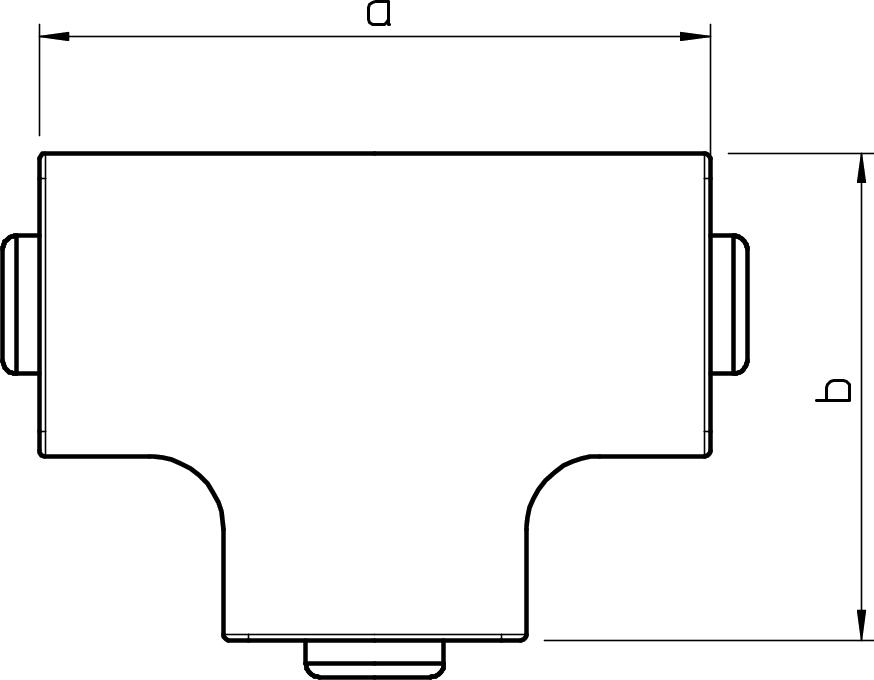

Dimension a	83 mm

Dimension b	43 mm

Dimension H	40 mm

Colour	Cream; RAL 9001

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Cream; RAL 9001
Dimension	40x40mm
Dimension a	83 mm
Dimension b	43 mm
Dimension H	40 mm
Fastening type	Lockable
for duct dimension	40 x 40
Height	40 mm
Length	83 mm

Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Trunking depth	40 mm
Version for	Hood fitting
Width	40 mm
