T and intersection cover, for trunking type WDK 60060 190 | 65 | 60 | Cream; RAL 9001

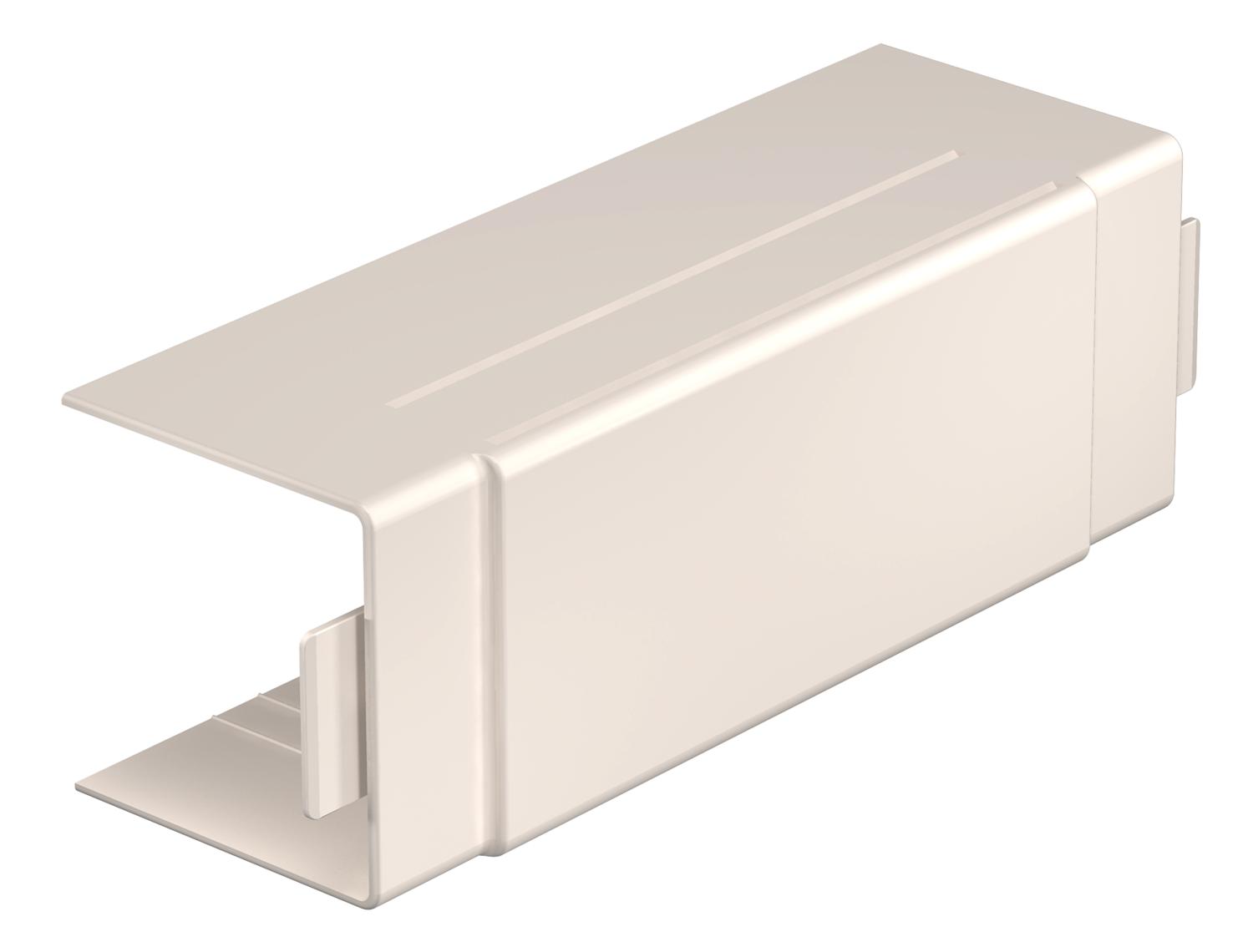

T and intersection cover, for trunking type WDK 60060

Item no. 6162207 | EAN 4012196108978

Item no. / Types	6162207 / WDK HK60060CW

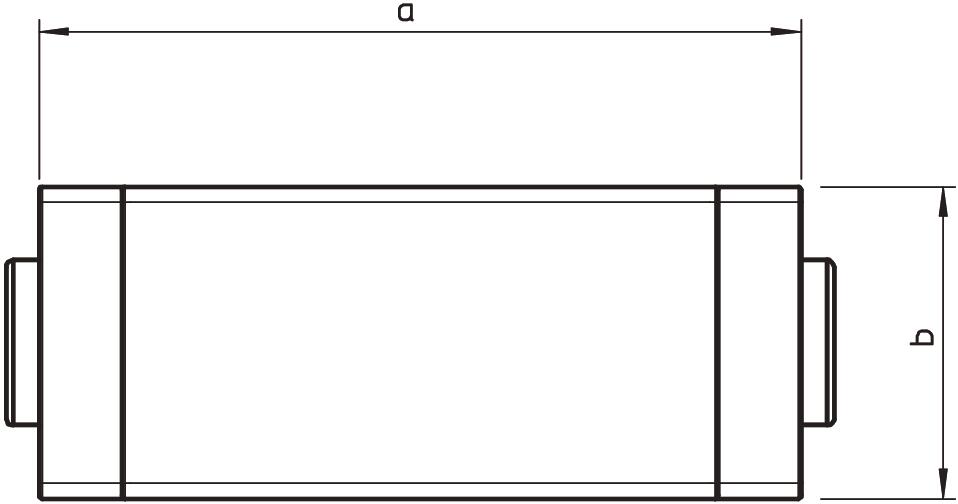

Dimension a	190 mm

Dimension b	65 mm

Dimension H	60 mm

Colour	Cream; RAL 9001

Product description

Product description

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Cream; RAL 9001
Dimension	60x60mm
Dimension a	190 mm
Dimension b	65 mm
Dimension H	60 mm
Fastening type	Lockable
for duct dimension	60 x 60
Height	60 mm

Length	190 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Version for	Hood fitting
Width	60 mm
