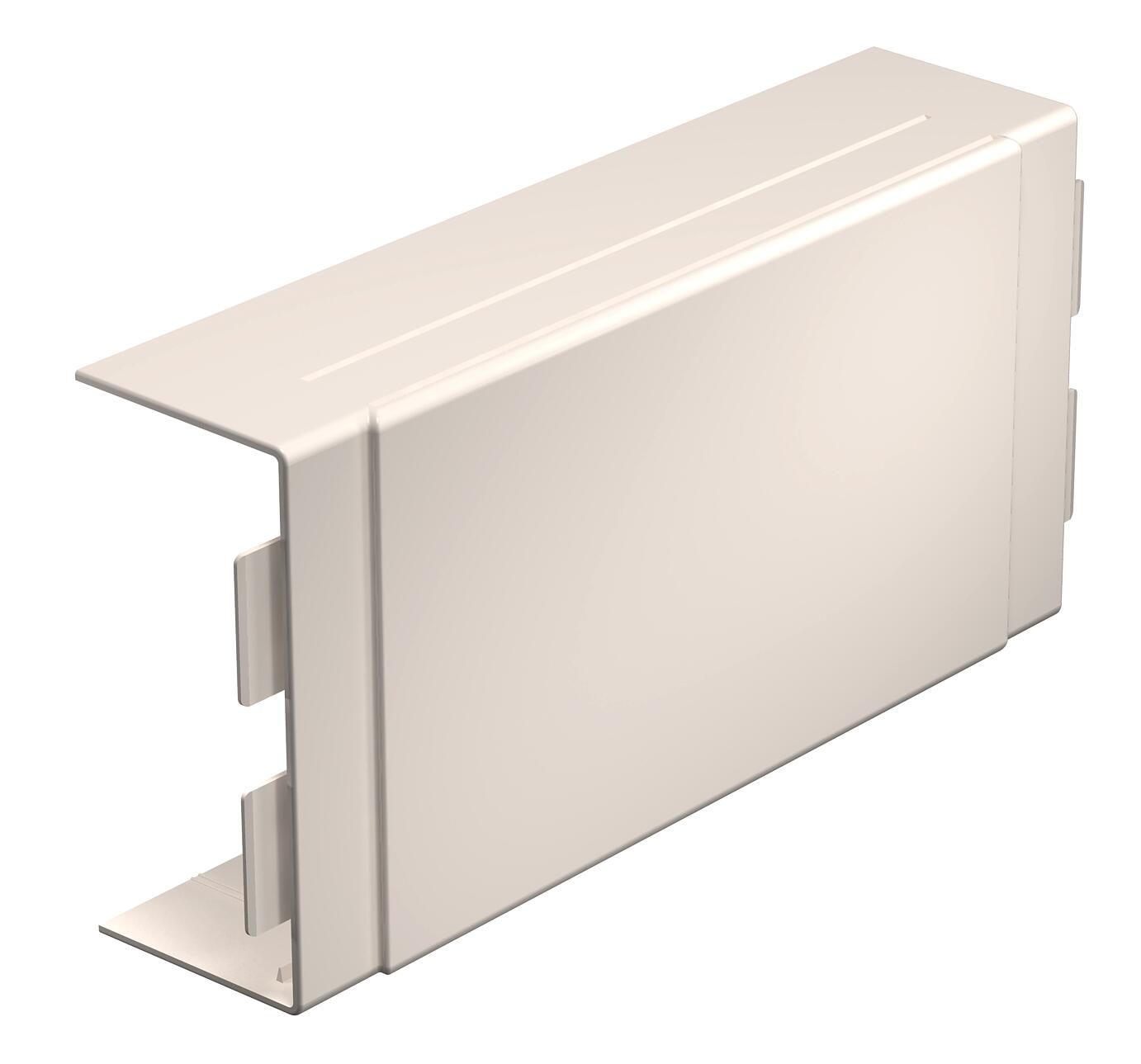

T and intersection cover, for trunking type WDK 60130
Item no. 6162231 | EAN 4012196109159
- Product description
-
Product description
T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Cream; RAL 9001 Dimension 60x130mm Dimension a 272 mm Dimension b 65 mm Dimension H 130 mm Fastening type Lockable for duct dimension 60 x 130 Height 60 mm Length 272 mm Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Version for Hood fitting Width 130 mm - All types
- Downloads
-
Data sheet WDK HK60130CW / 6162231 , 0.18MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK HK60130CW / 6162231 , 0.13MB , pdfUK Declaration of Conformity WDK HK60130CW / 6162231 , 0.14MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
