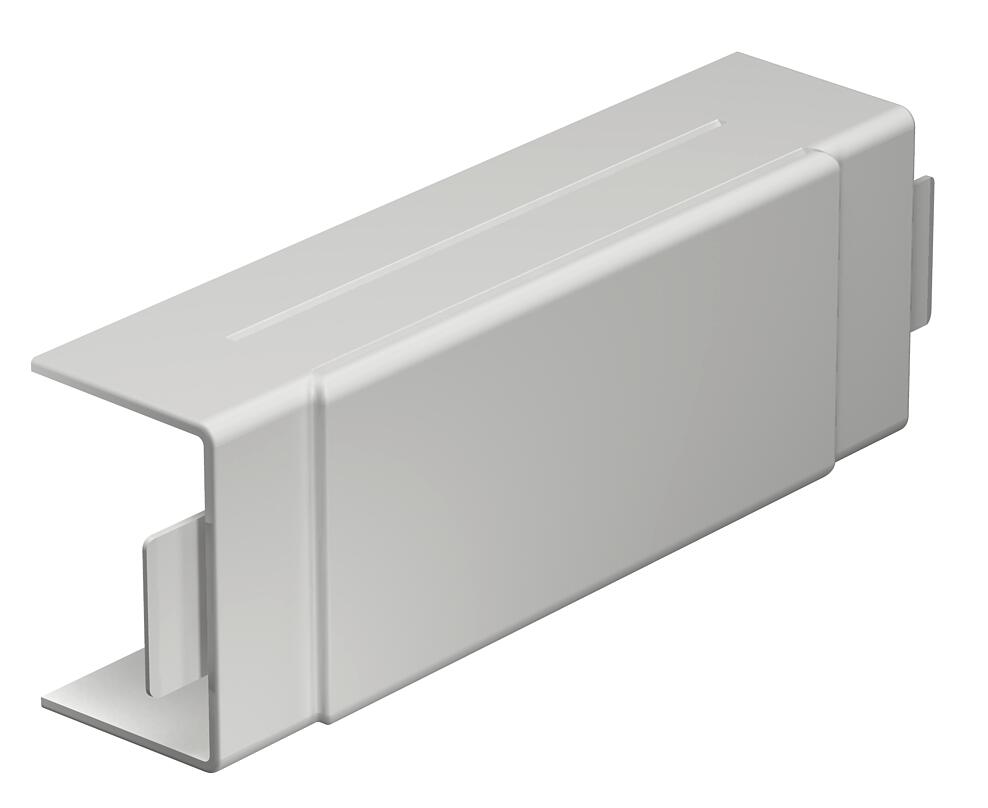

T and intersection cover, for trunking type WDKH 40060
Item no. 6176080 | EAN 4012195815112
- Product description
-
Product description
T and intersection cover for changing the direction of the halogen-free WDKH trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
-
- Technical data
-
Technical data

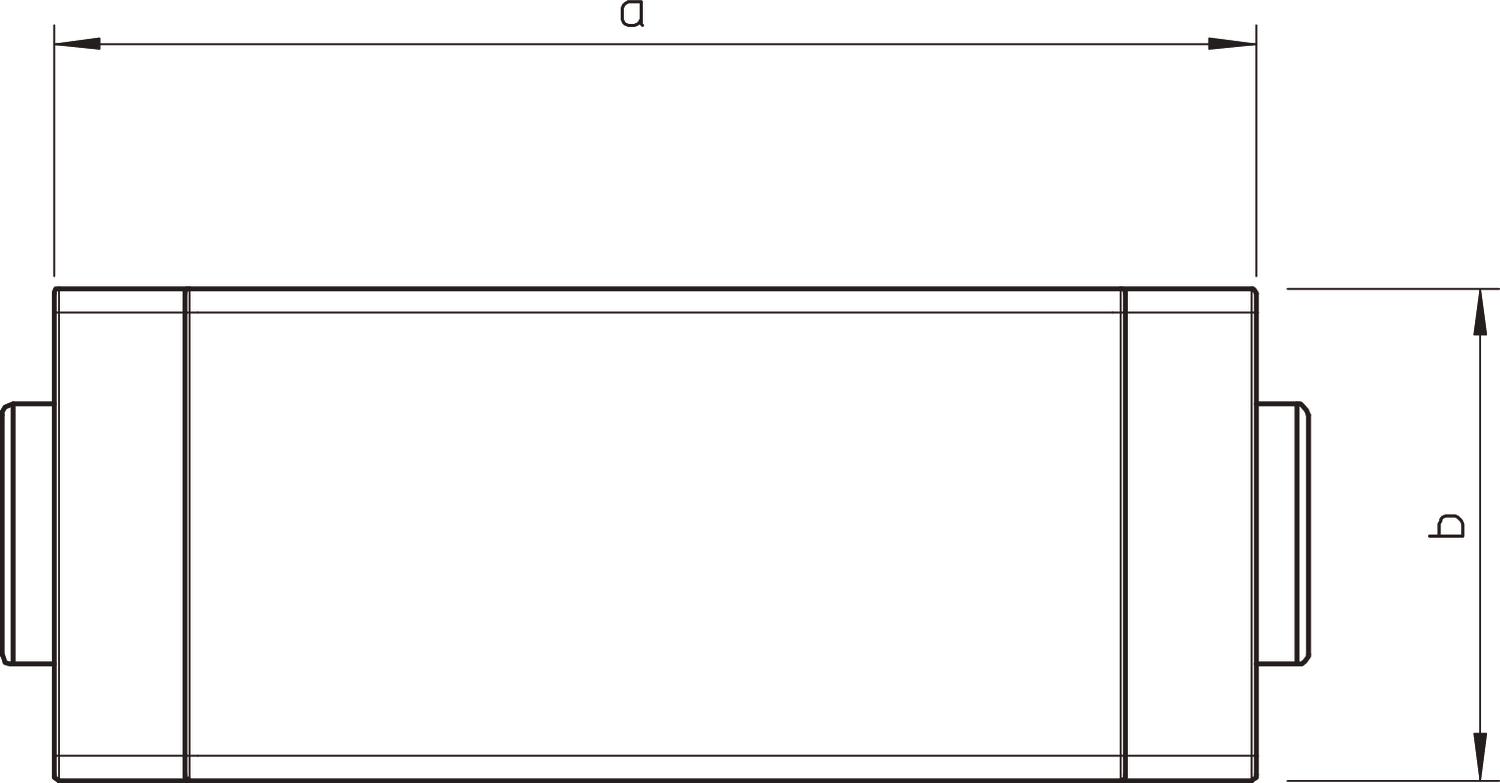

Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 40x60mm Dimension a 190 mm Dimension b 66 mm Duct height, min. 60 mm Fastening type Lockable for duct dimension 40x60 Halogen-free yes Height 40 mm Length 190 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Trunking depth 40 mm Version for Hood fitting Width 65 mm - All types
