Note: This article is discontinued. You can find the current article here: 7218080 / T branch piece, duct height 80 mm, pure white

T branch hood 110 | 110 | 70 | 70 | Pure white; RAL 9010

T branch hood

Item no. 7216613 | EAN 4012196532643

Item no. / Types

Dimension B

Dimension b

Dimension H

Dimension h

Colour

Product description

Product description

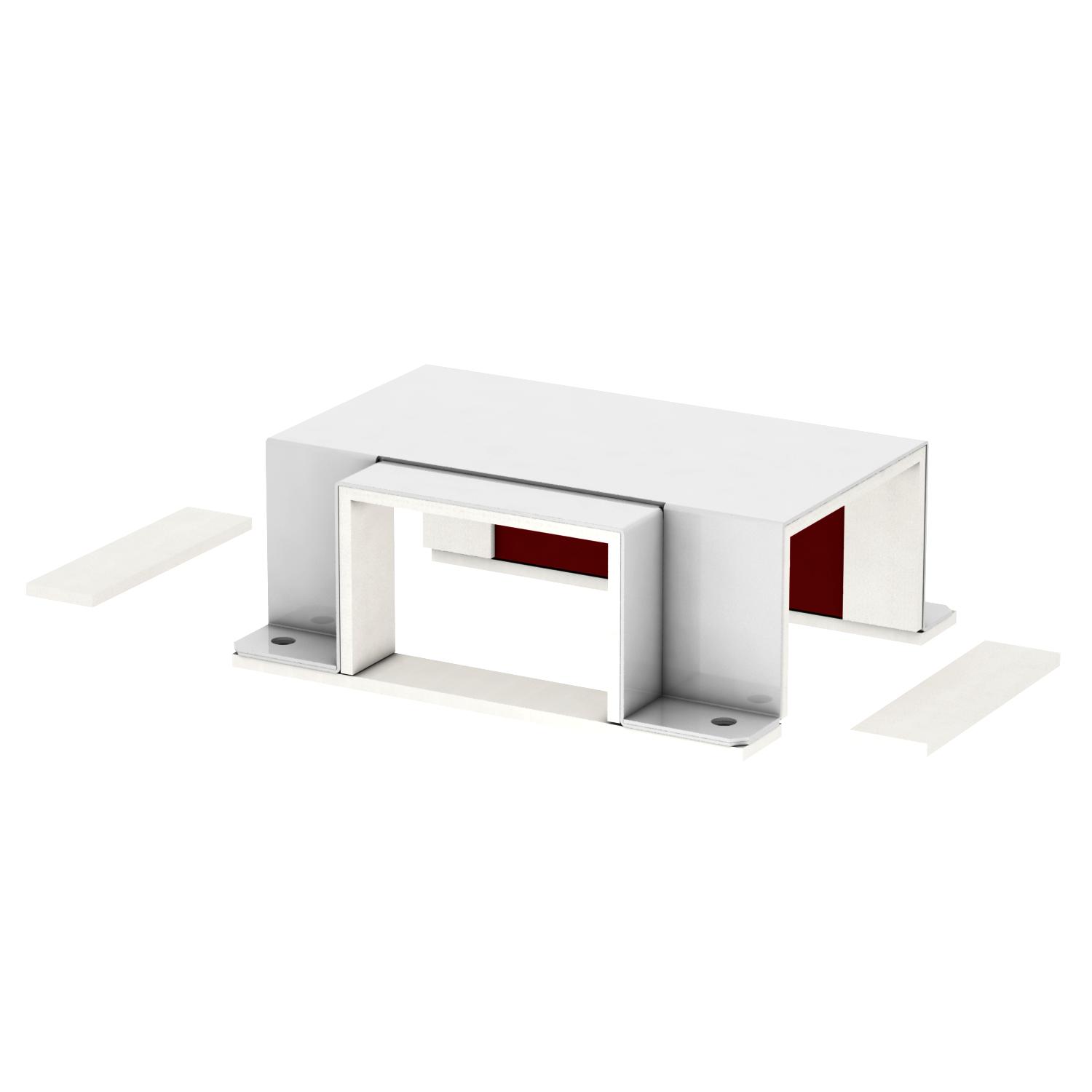

Fitting hood to cover three BSKM 0711 duct ends running towards each other in a T shape. Including glued-in seals for closing the joints and loose seals when combining with lock plate; screws for equipotential bonding also included.

Technical data

Technical data

Colour	Pure white; RAL 9010

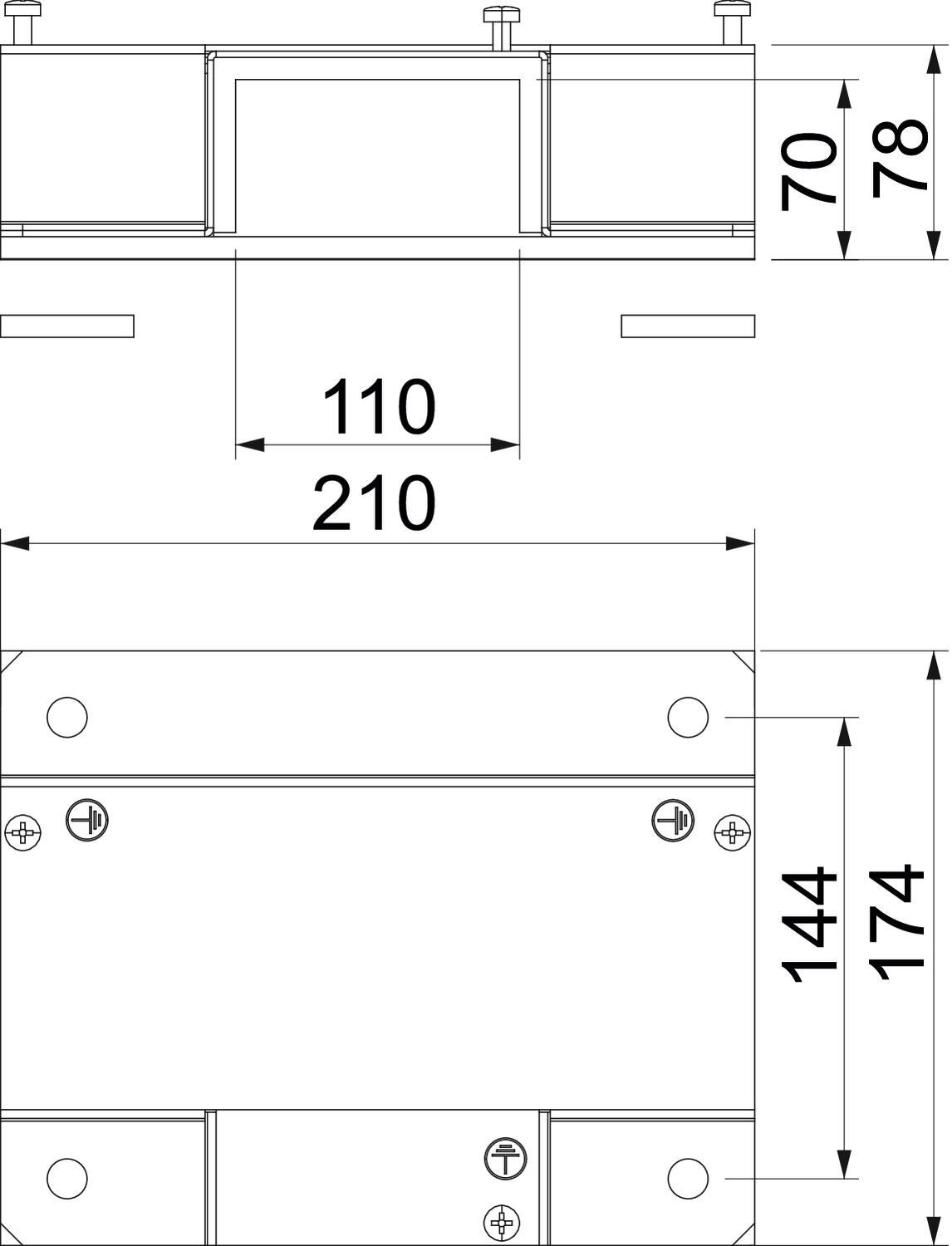

Dimension	70x110
Dimension A	174 mm
Dimension B	110 mm
Dimension b	110 mm
Dimension d	144 mm
Dimension d min.	210 mm
Dimension h	70 mm
Dimension H	70 mm
Dimension t	78 mm

Fire resistance class I − installation duct	120
Height	78 mm
Jacketing	Steel
Material	Steel
Material of the insulation	Miscellaneous
Number of flammable sides	3
Partitions possible	no
Surface	Painted
Width	174 mm
With perforation	no

All types

All types

Types	Dimension B	Dimension b	Dimension H	Dimension h	Colour	Item no.	Quantity	SSU
BSKM-TA 1025 FS	250 mm	250 mm	100 mm	100 mm	-	7216462	piece	1 piece
BSKM-TA 0407 FS	70 mm	-	40 mm	-	-	7216532	piece	1 piece
BSKM-TA 0711RW	110 mm	110 mm	70 mm	70 mm	Pure white; RAL 9010	7216613	piece	1 piece
BSKM-TA 1025RW	250 mm	250 mm	100 mm	100 mm	Pure white; RAL 9010	7216645	piece	1 piece
