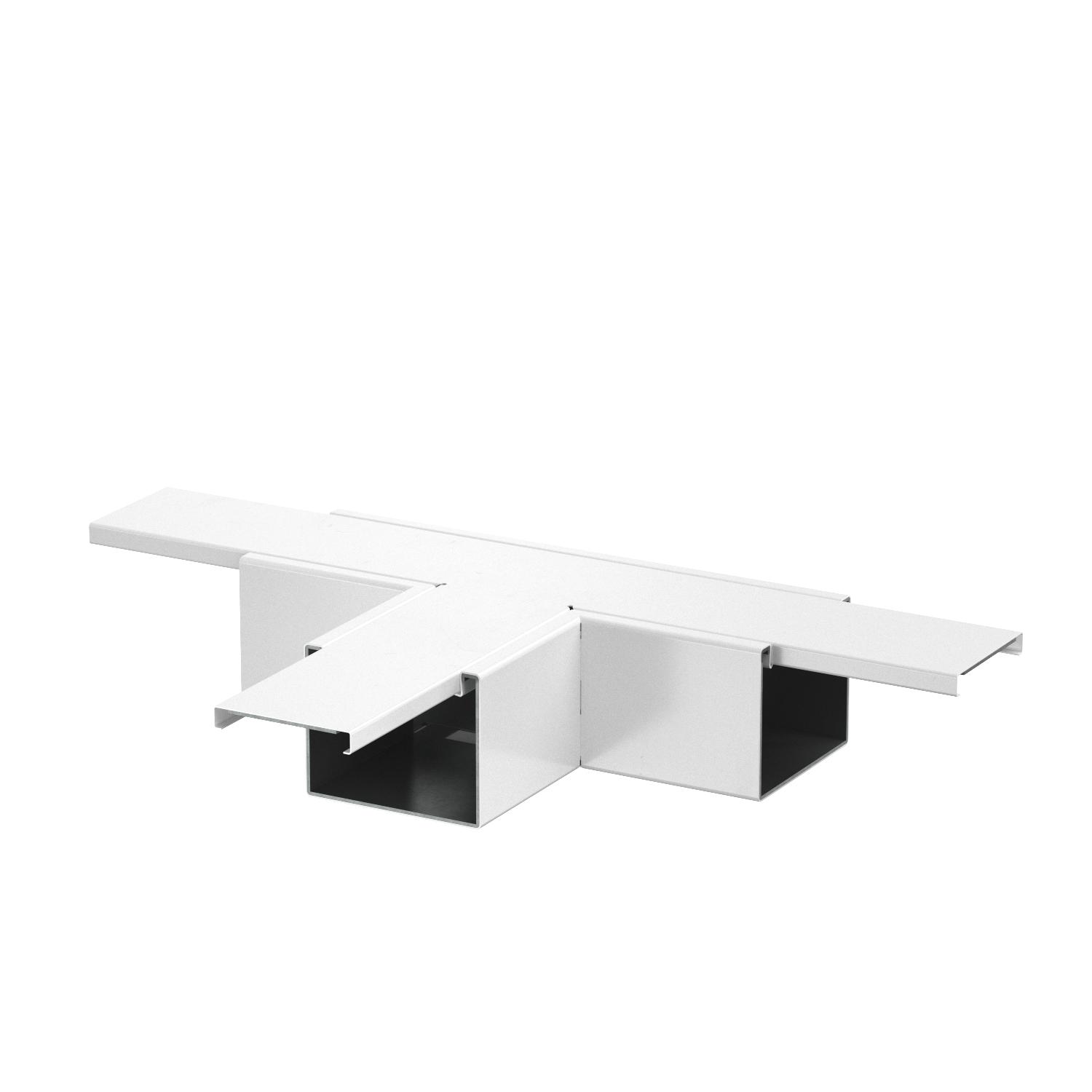

T branch piece, duct height 80 mm, pure white
Item no. 7218080 | EAN 4012197365585
- Product description
-
Product description
Tee with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
-
- Technical data
-
Technical data

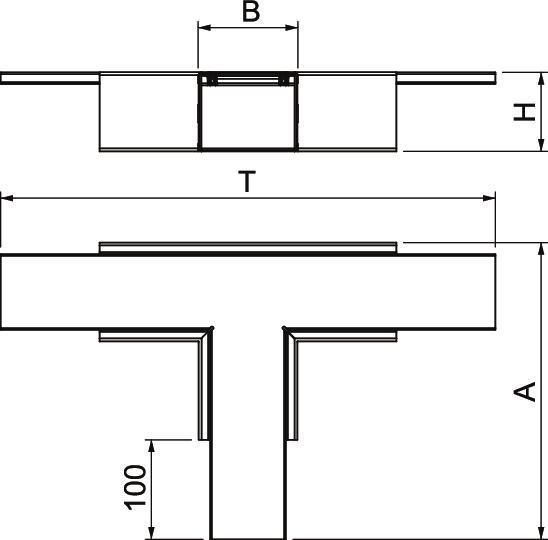

Classification EI − installation duct 90 Colour Pure white; RAL 9010 Dimension 500x300x80 Dimension A 300 mm Dimension B 100 mm Dimension H 80 mm Dimension t 500 mm Jacketing Steel Material Steel Number of flammable sides 4 Partitions possible yes Surface Powder-coated Usable cross-section 5180 mm² With perforation yes - All types
- Downloads
-
Data sheet PLM TB 0810 RW / 7218080 , 0.14MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfDeclaration of conformity PLM TB 0810 RW / 7218080 , 0.11MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfNo invitation to tender text is available for this product.
