T piece adapter on WDK 40060 120 | Pure white; RAL 9010
morepic-1 morepic-2

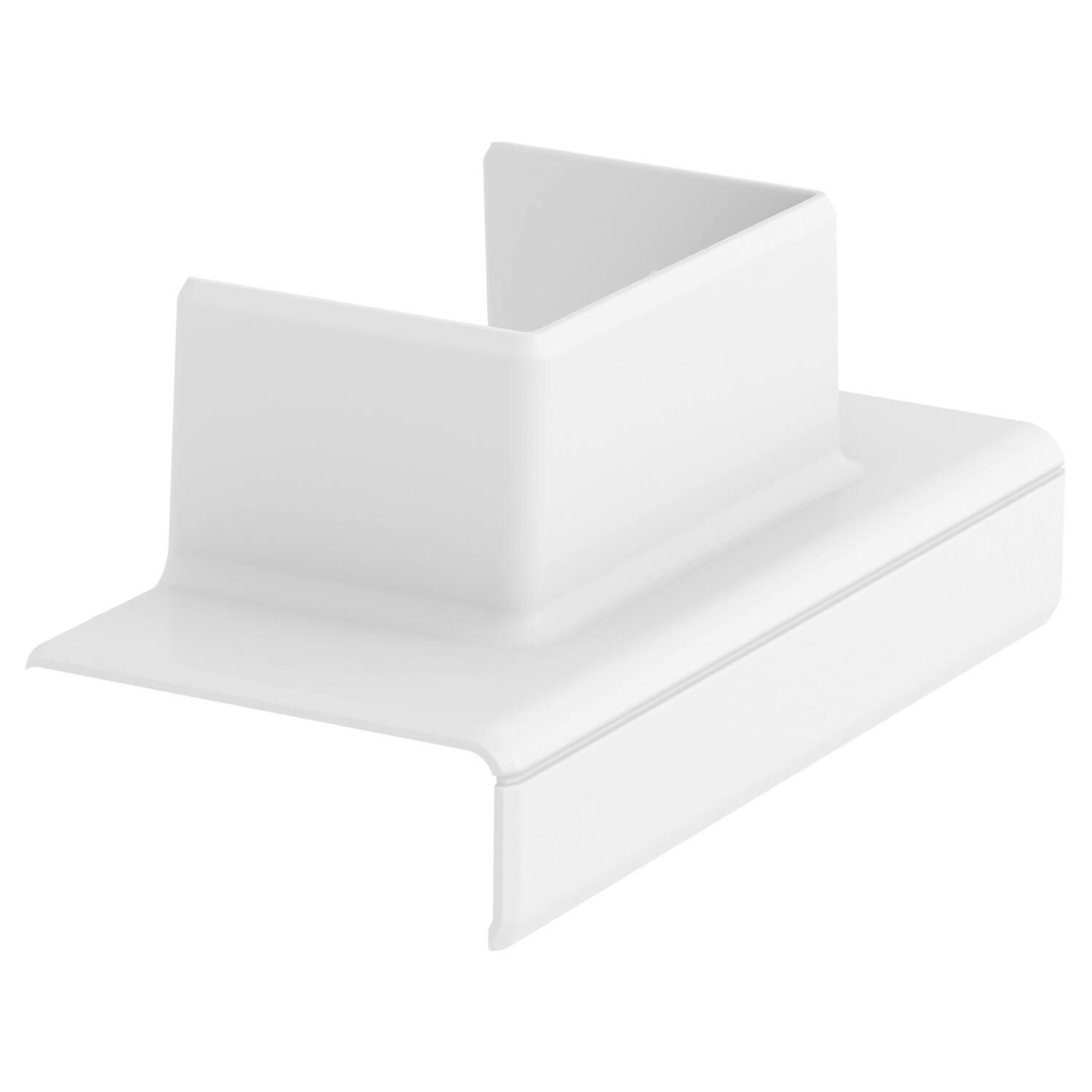

T piece adapter on WDK 40060

Item no. 6113320 | EAN 4012196419876

6113320 / GK-TA WDK 2RW
120 mm
Pure white; RAL 9010
Product description
Product description
T piece adapter to create a 90° junction from the system size Rapid 45-2 53130 to a cable trunking WDK40060.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Cable retaining clip no
Colour Pure white; RAL 9010
Cover mounting type Cross-over

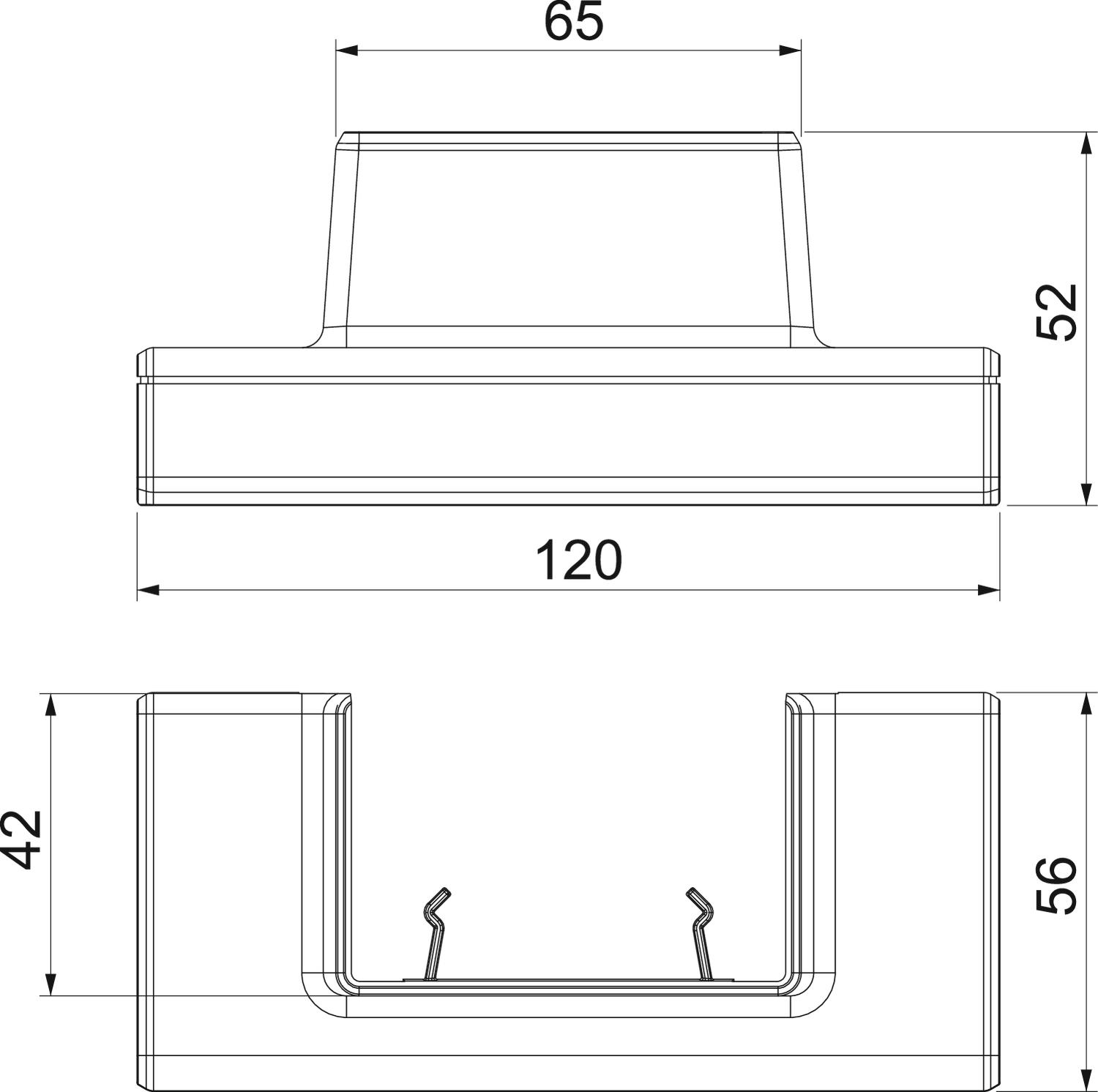

Dimension 120x52x56
Duct connector no
for duct width 130 mm
for trunking height 53 mm
Halogen-free yes
Height 55,5 mm
Length 120 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP40
Protection rating IK code IK08
Protective film no
Symmetrical no
Version for Hood fitting
Width 52 mm
Width of the branch 60 mm
All types

All types

Types Length Colour Item no. Quantity SSU
GK-TA WDK 2RW 120 mm Pure white; RAL 9010 6113320
1 piece
Downloads

Download

Download

EU declaration of conformity GK-TA WDK 2RW / 6113320 , 0.13MB , pdf
Download
REACH Declaration of conformity GK-TA WDK 2RW / 6113320 , 0.27MB , pdf
Download
RoHS Declaration of conformity GK-TA WDK 2RW / 6113320 , 0.28MB , pdf
Download

Download

No invitation to tender text is available for this product.
