T piece cover, for trunking type WDK 30030 50 | 39 | 30 | Cream; RAL 9001
morepic-1 morepic-2

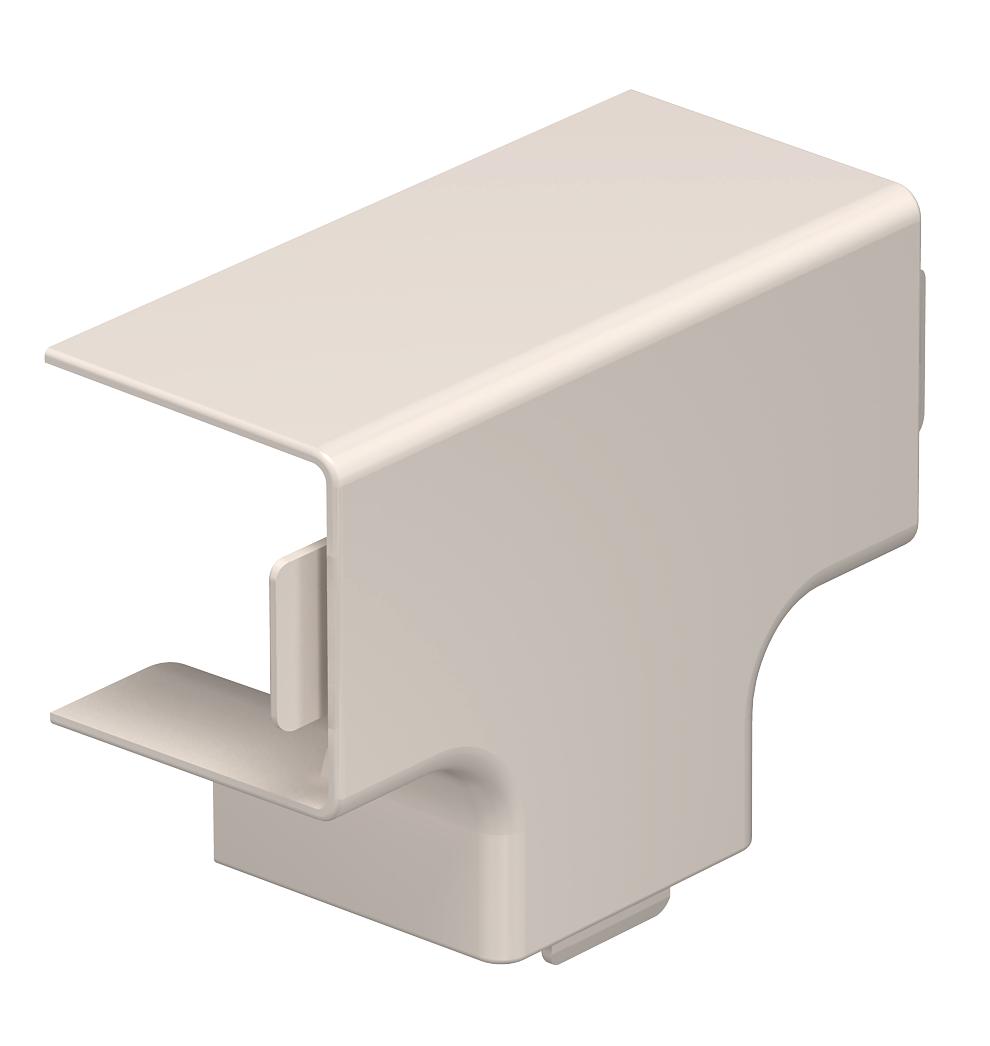

T piece cover, for trunking type WDK 30030

Item no. 6161979 | EAN 4012196581535

6161979 / WDK HT30030CW
50 mm
39 mm
30 mm
Cream; RAL 9001
Product description

Product description

T piece hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 30x30mm

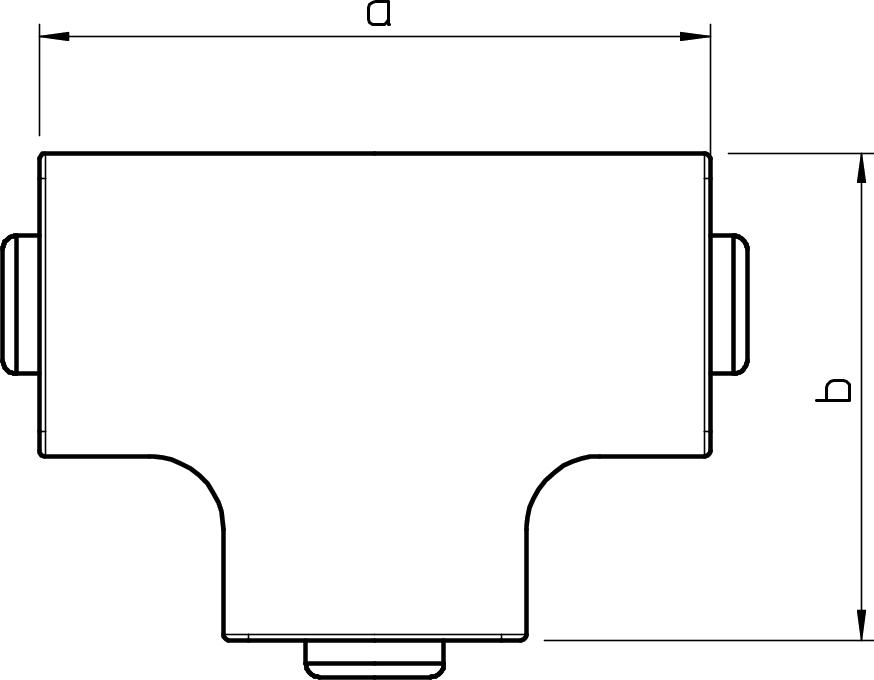

Dimension a 50 mm
Dimension b 39 mm
Dimension H 30 mm
Fastening type Lockable
for duct dimension 30 x 30
Halogen-free no
Height 30 mm
Length 50 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 30 mm
Version for Hood fitting
Width 30 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HT30030CW 50 mm 39 mm 30 mm Cream; RAL 9001 6161979
4 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HT30030CW / 6161979 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
