T piece cover, for trunking type WDK 30045 88 | 68 | 45 | Cream; RAL 9001
morepic-1 morepic-2

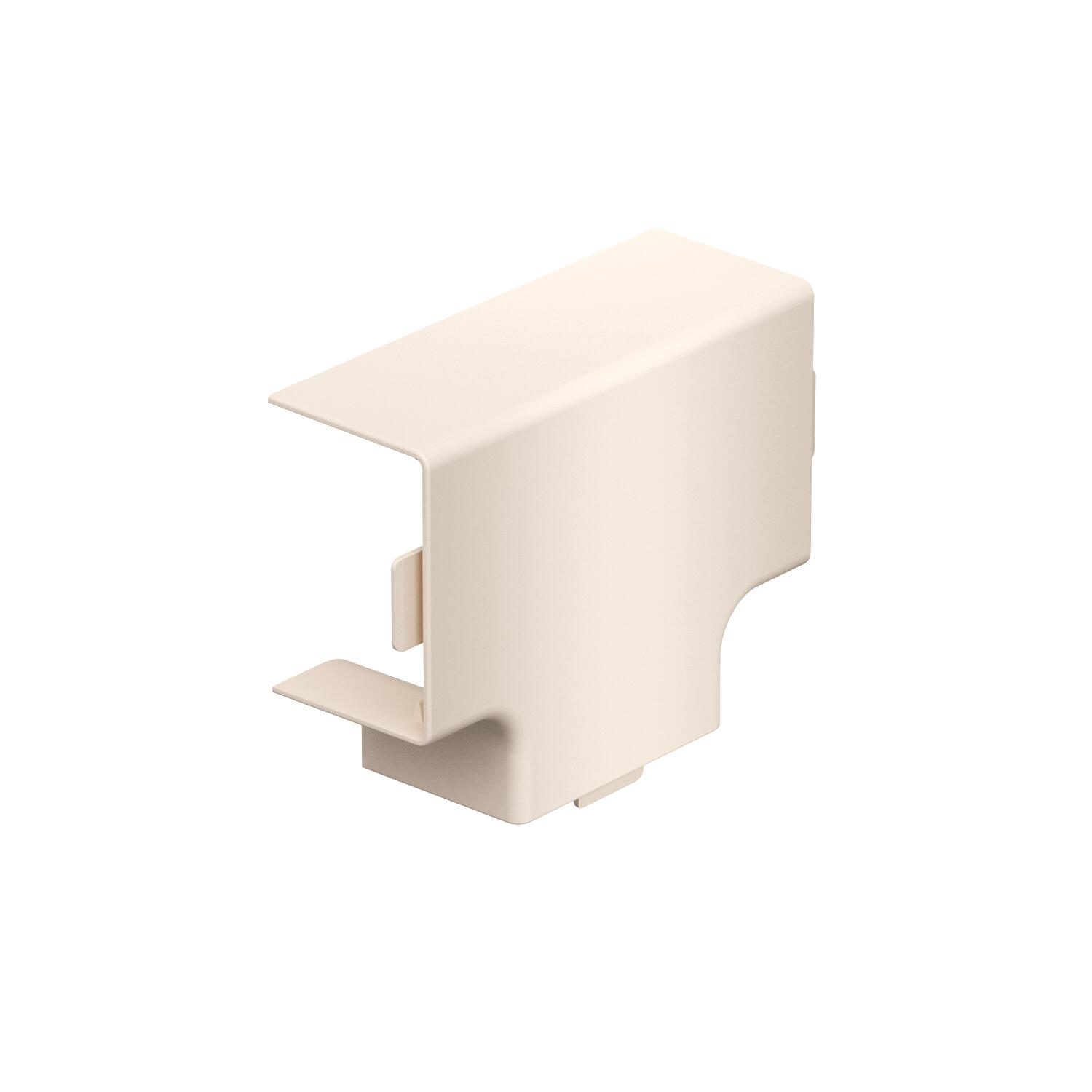

T piece cover, for trunking type WDK 30045

Item no. 6161987 | EAN 4012196641956

6161987 / WDK HT30045CW
88 mm
68 mm
45 mm
Cream; RAL 9001
Product description

Product description

T-piece cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 30x45mm

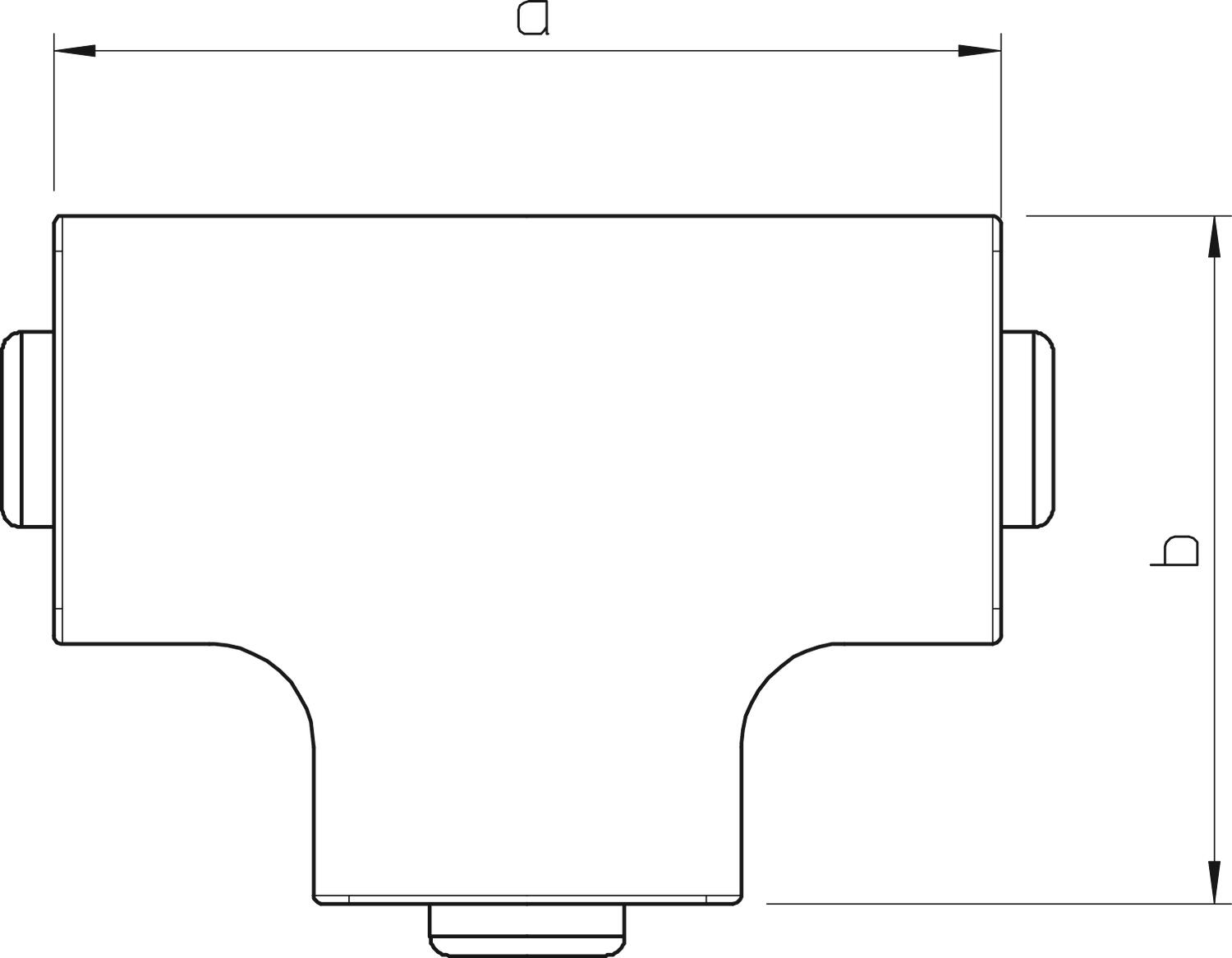

Dimension a 88 mm
Dimension b 68 mm
Dimension H 45 mm
Fastening type Lockable
for duct dimension 30 x 45
Halogen-free no
Height 30 mm
Length 88 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 30 mm
Version for Hood fitting
Width 45 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HT30045CW 88 mm 68 mm 45 mm Cream; RAL 9001 6161987
4 piece
Downloads

Download

Download

Download
UK Declaration of Conformity WDK HT30045CW / 6161987 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
