Tapered pipe air-termination rod

Item no. 5401995 | EAN 4012195050803

10/16 mm
Product description

Product description

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• From a free length of > 2.5 m, an additional fastening, e.g. insulated
spacer is recommended

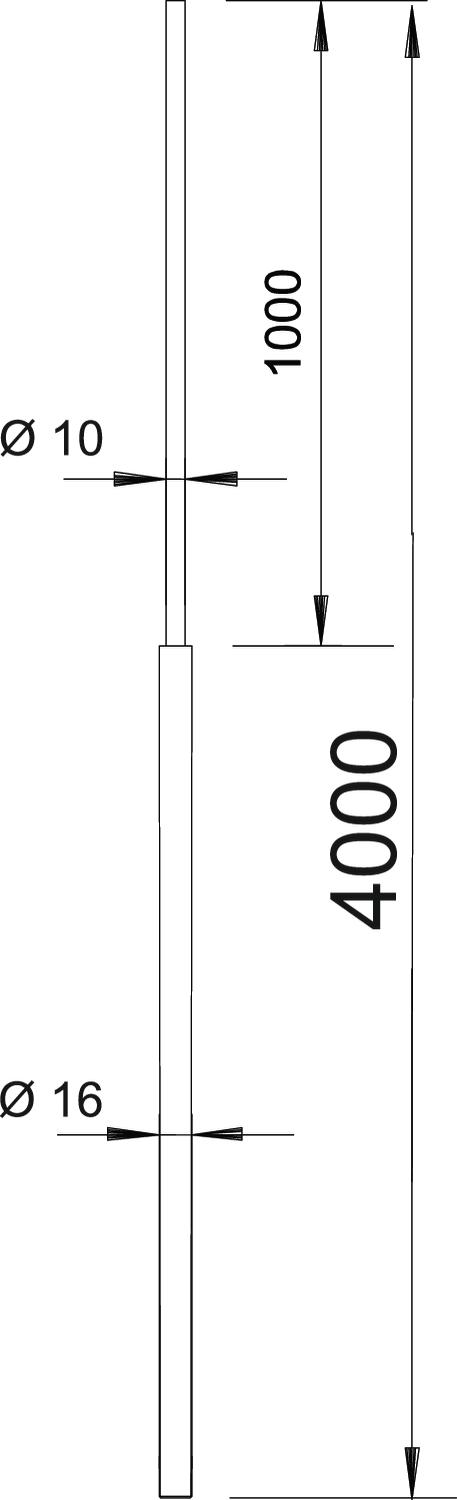

• Last metre is tapered from Ø 16 mm to Ø 10 mm, material: AlMgSi
• Matches stand system FangFix
Technical data

Technical data

Connection Round conductor
Dimension 4m
High voltage-resistant, insulated version no
Length 4000 mm
Material Aluminium
Nominal size Ø 10/16 mm
Version for Tapered air-termination rod
All types

All types

Types Length Nominal size Ø Item no. Quantity SSU
101 VL1500 1500 mm 10/16 mm 5401980
1 piece
101 VL2000 2000 mm 10/16 mm 5401983
1 piece
101 VL2500 2500 mm 10/16 mm 5401986
1 piece
101 VL3000 3000 mm 10/16 mm 5401989
1 piece
101 VL3500 3500 mm 10/16 mm 5401993
1 piece
101 VL4000 4000 mm 10/16 mm 5401995
1 piece
Downloads

Download

Download

101 VL4000 / 5401995
