TP support / wall and support bracket FS 60 | 0.55 | zinc

TP support / wall and support bracket FS

Item no. 6366066 | EAN 4012196545292

Item no. / Types

Width	60 mm

F in kN

Colour	zinc

Back to overview

Product description

Product description

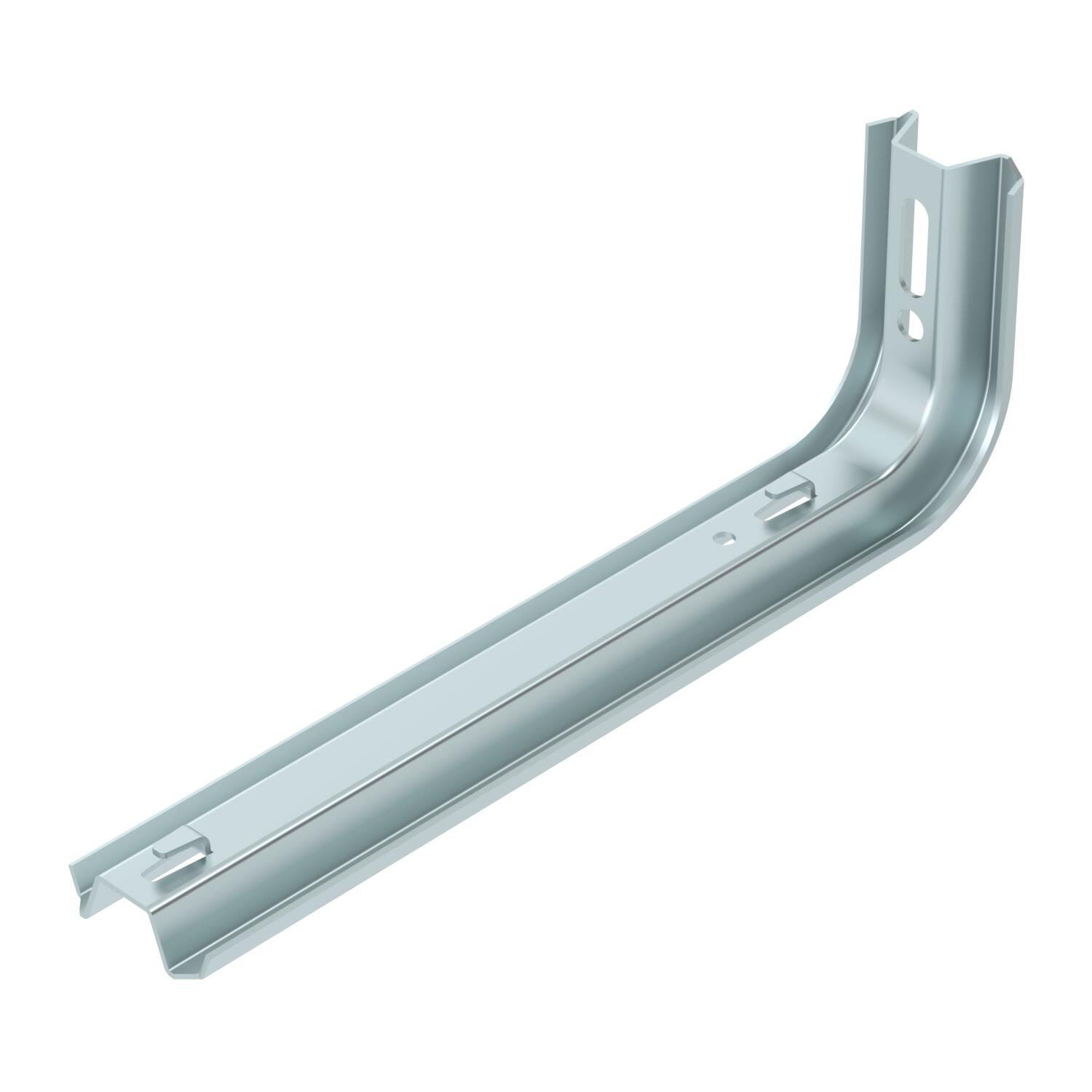

TP bracket with clamping lugs for screwless mesh cable tray fastening.

If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,4011 kg CO2e / 1 Piece
Colour	zinc

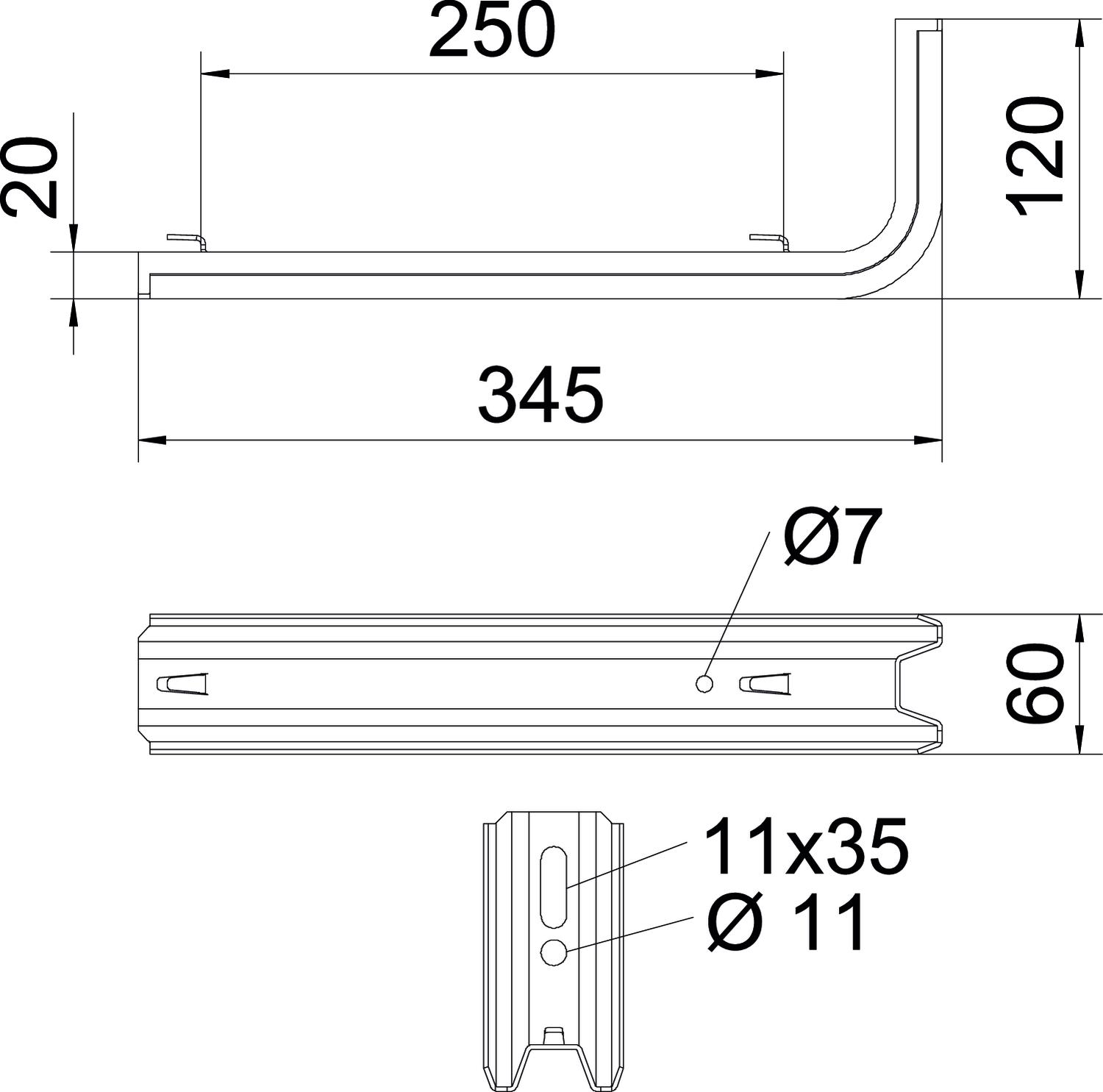

Dimension	B345mm
Dimension B	60 mm
Dimension H	120 mm
Dimension L	345 mm
F in kN	0,55 kN
for width max.	300 mm
for width min.	300

Height	120 mm
Length	345 mm
Maintain electrical functions	no
Maß W	250 mm
Material	Steel
Rustproof steel, pickled	no
Surface	Strip galvanized
Version for	Wall and support bracket
Width	60 mm

Technical data

Load diagram, bracket, type TPSAG

Bending of the bracket tip at permitted bracket load
Permitted bracket load in kN without man load
Support width in m

All types

All types

Types	Width	F in kN	Colour	Item no.	Quantity	SSU
TPSAG 145 FS	60 mm	1.5 kN	zinc	6366015	piece	1 piece
TPSAG 195 FS	60 mm	1 kN	zinc	6366023	piece	1 piece
TPSAG 245 FS	60 mm	0.9 kN	zinc	6366031	piece	1 piece
TPSAG 345 FS	60 mm	0.55 kN	zinc	6366066	piece	1 piece
