Trunking connector and joint cover Light grey; RAL 7035

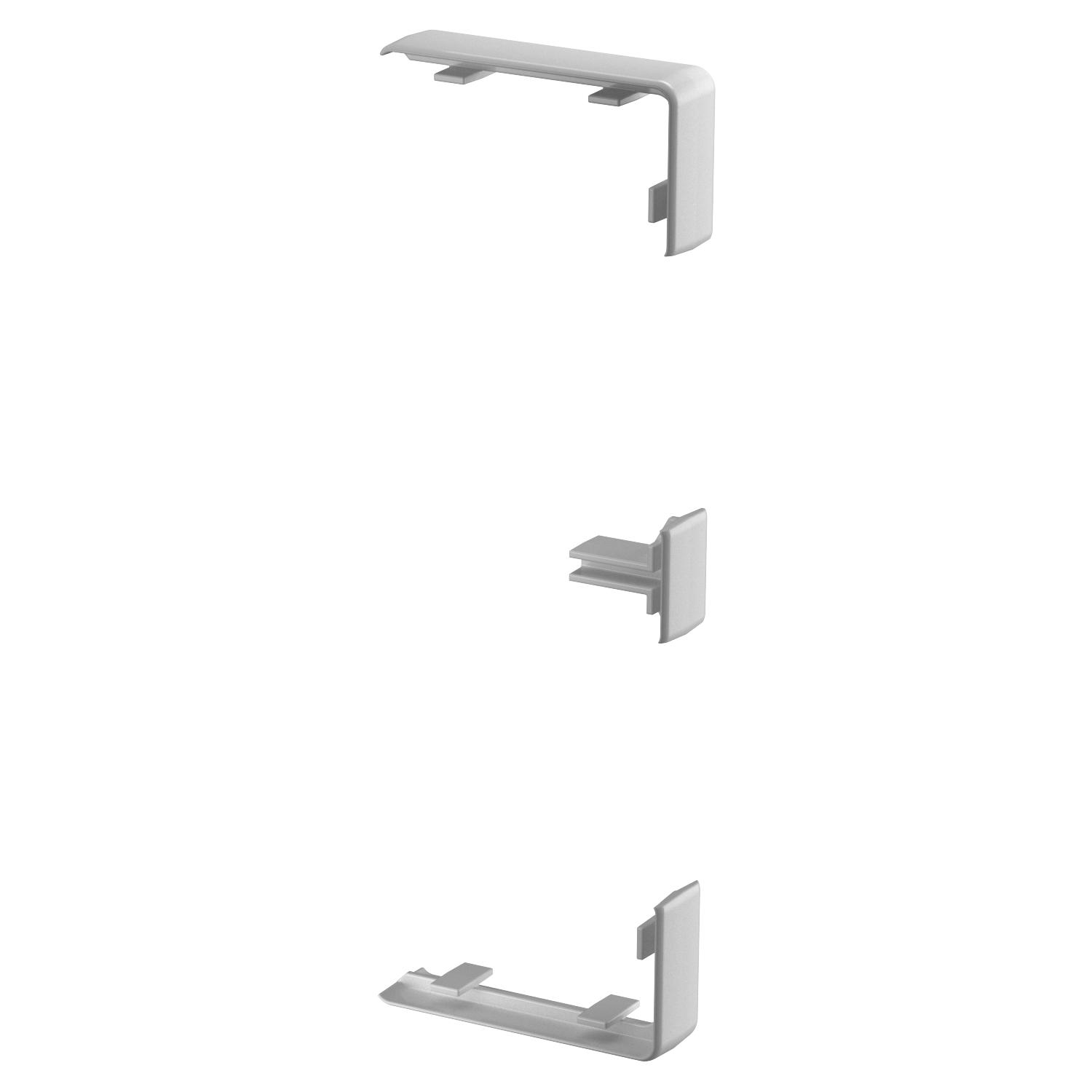

Trunking connector and joint cover

Item no. 6113022 | EAN 4012196419142

Item no. / Types

Colour

Product description

Product description

Joint cover for the bases of the Rapid 45-2 device installation trunking to hide cut edges and provide a perfect connection of the trunking segments. The joint covers are attached. Suitable for trunking width 100 mm and 165 mm.

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover width	45 mm

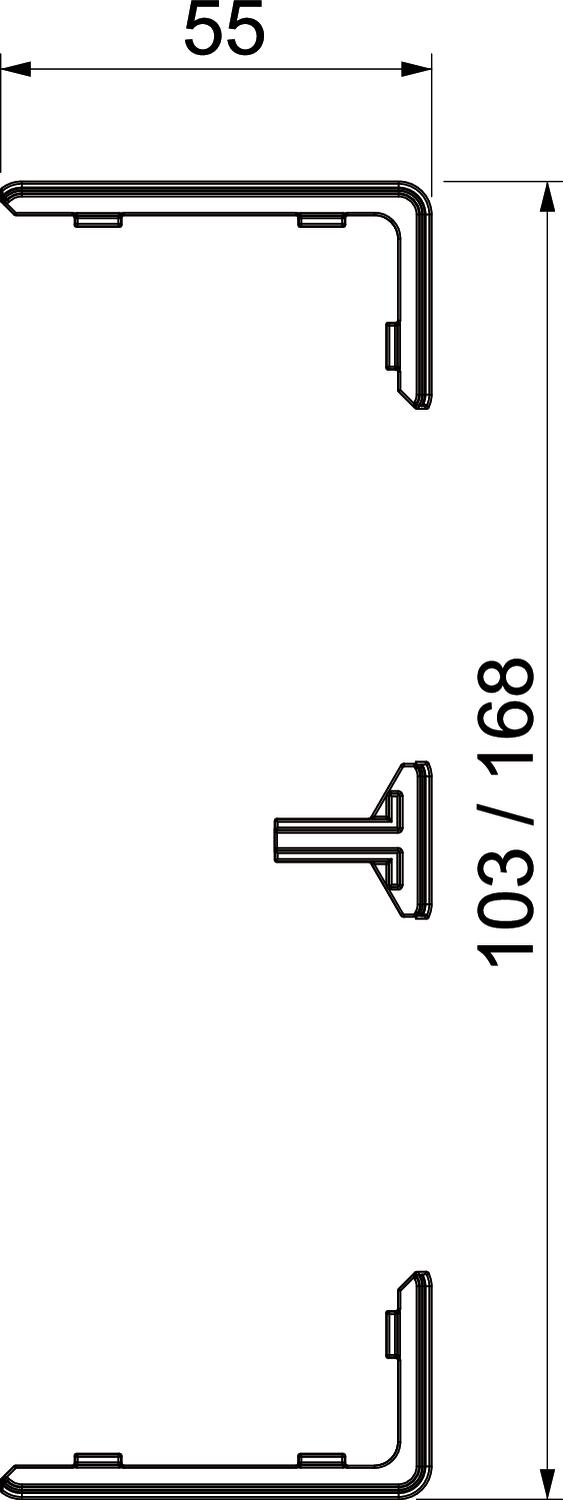

Dimension	168x55x15
Fastening type	Slide (before mounting)
for duct width	100,17 mm
for trunking height	53 mm
Halogen-free	yes
Height	27 mm
Length	15 mm

Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-15 °C
Protection rating	IP40
Protection rating IK code	IK08
Shape	Symmetrical
Version for	Trunking cut cover
Width	55 mm
