Trunking connector and joint cover Pure white; RAL 9010
morepic-1 morepic-2

Trunking connector and joint cover

Item no. 6116163 | EAN 4012195391647

6116163 / GEK-KS45-3
Pure white; RAL 9010
Product description
Product description

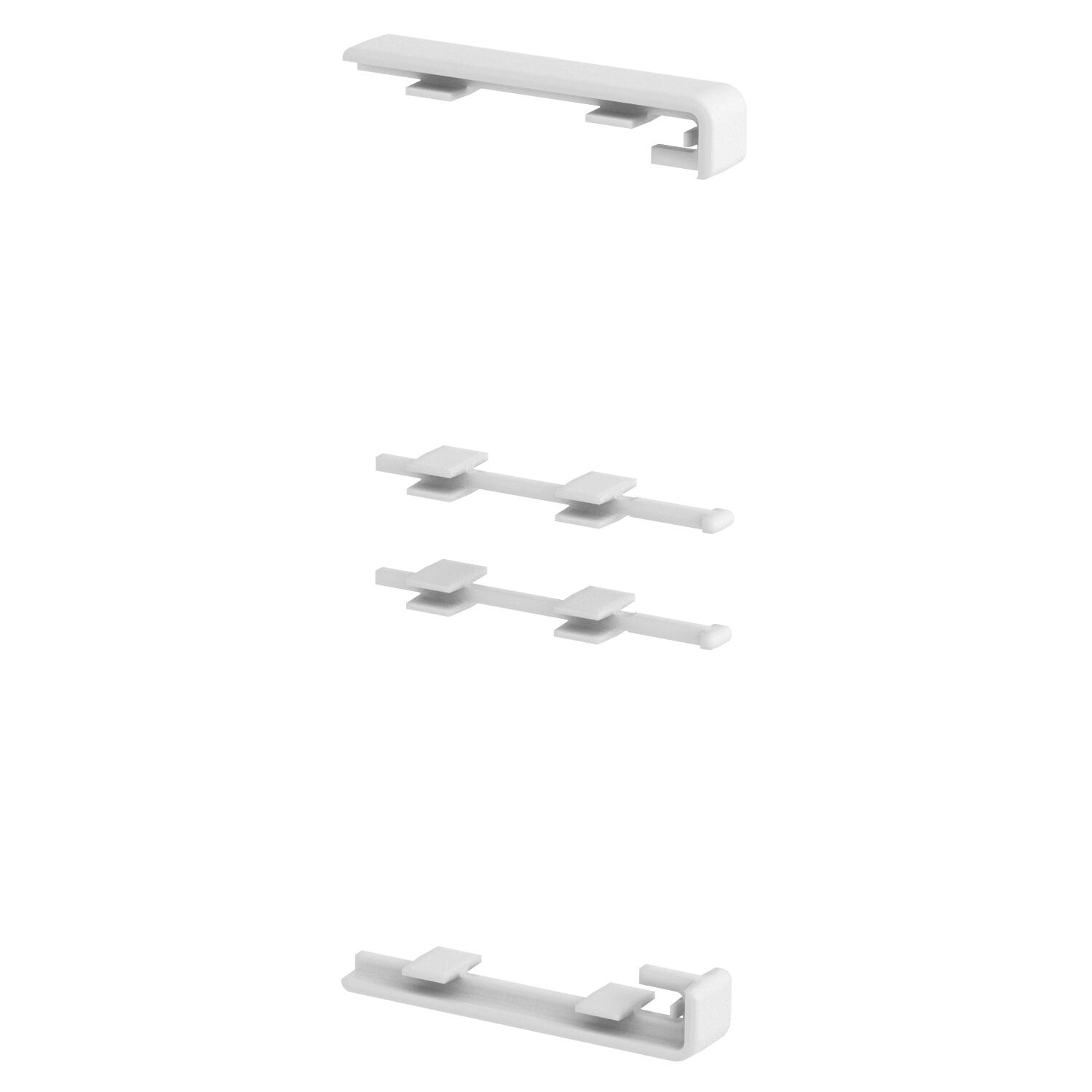

Joint cover for smooth connection of trunking segments.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Cover width 45 mm
Fastening type Miscellaneous
for duct width 165 mm
for trunking height 53 mm
Halogen-free no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP30
Protection rating IK code IK08
Shape Universal
Version for Trunking cut cover
All types

All types

Types Colour Item no. Quantity SSU
GEK-KS45-3 Pure white; RAL 9010 6116163
6 piece
Downloads

Download

Download

EU declaration of conformity GEK-KS45-3 / 6116163 , 0.13MB , pdf
Download

Download
Download

Download

No invitation to tender text is available for this product.
