U support connector FT

Item no. 6018513 | EAN 4012196229154

Product description

Product description

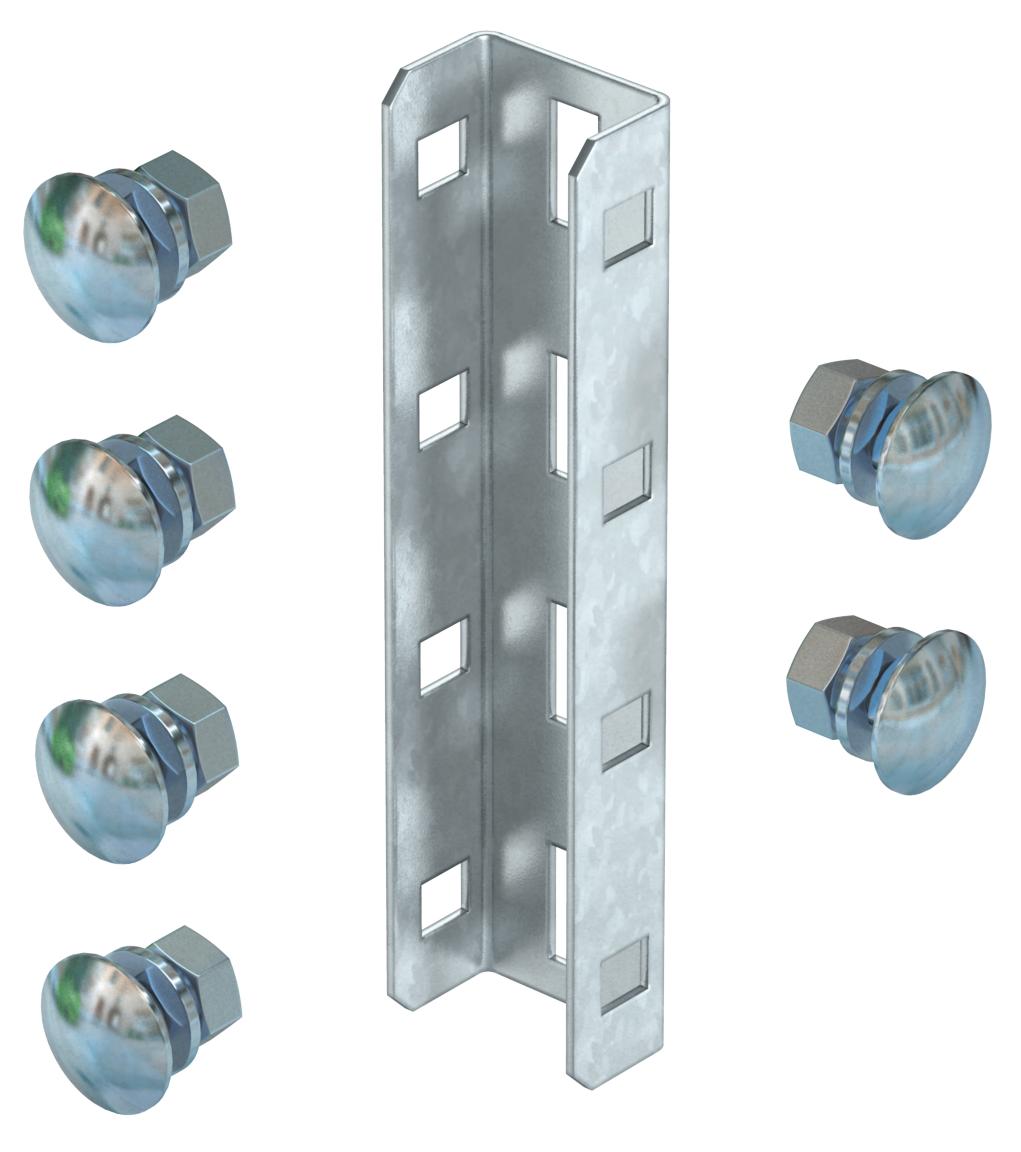

U support connector to connect US 3 supports.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • U support
Technical data

Technical data

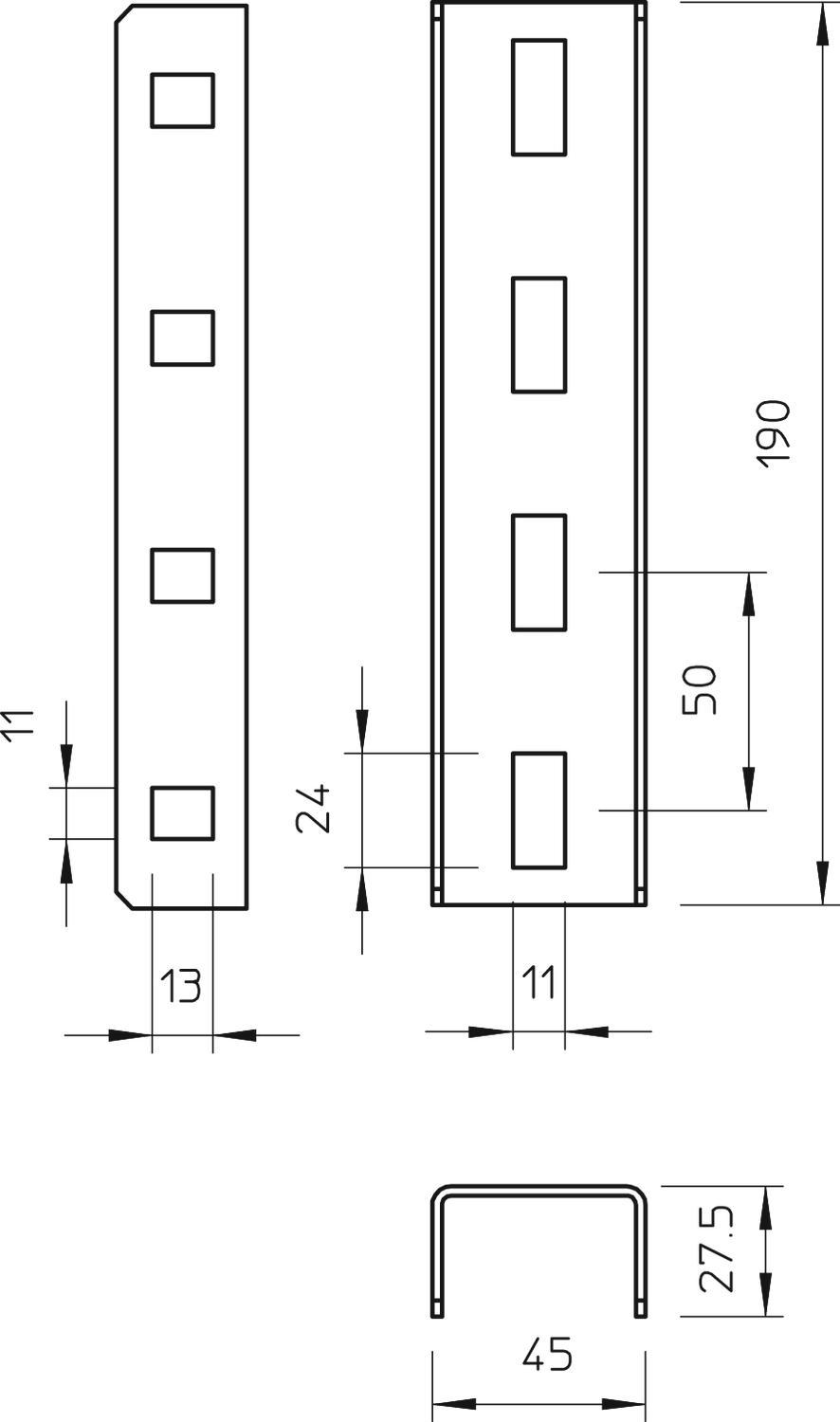

Dimension 190x45
Dimension 27,5 x 45 x 190
Drill hole spacing, centre 50 mm
Height 27,5 mm
Length 190 mm
Material Steel
Rustproof steel, pickled no
Suitable for profile shapes U profile
Surface Hot-dip galvanised
Width 45 mm
With screw accessories yes
All types

All types

Types Item no. Quantity SSU
VUS 3 FT 6018513
10 piece
