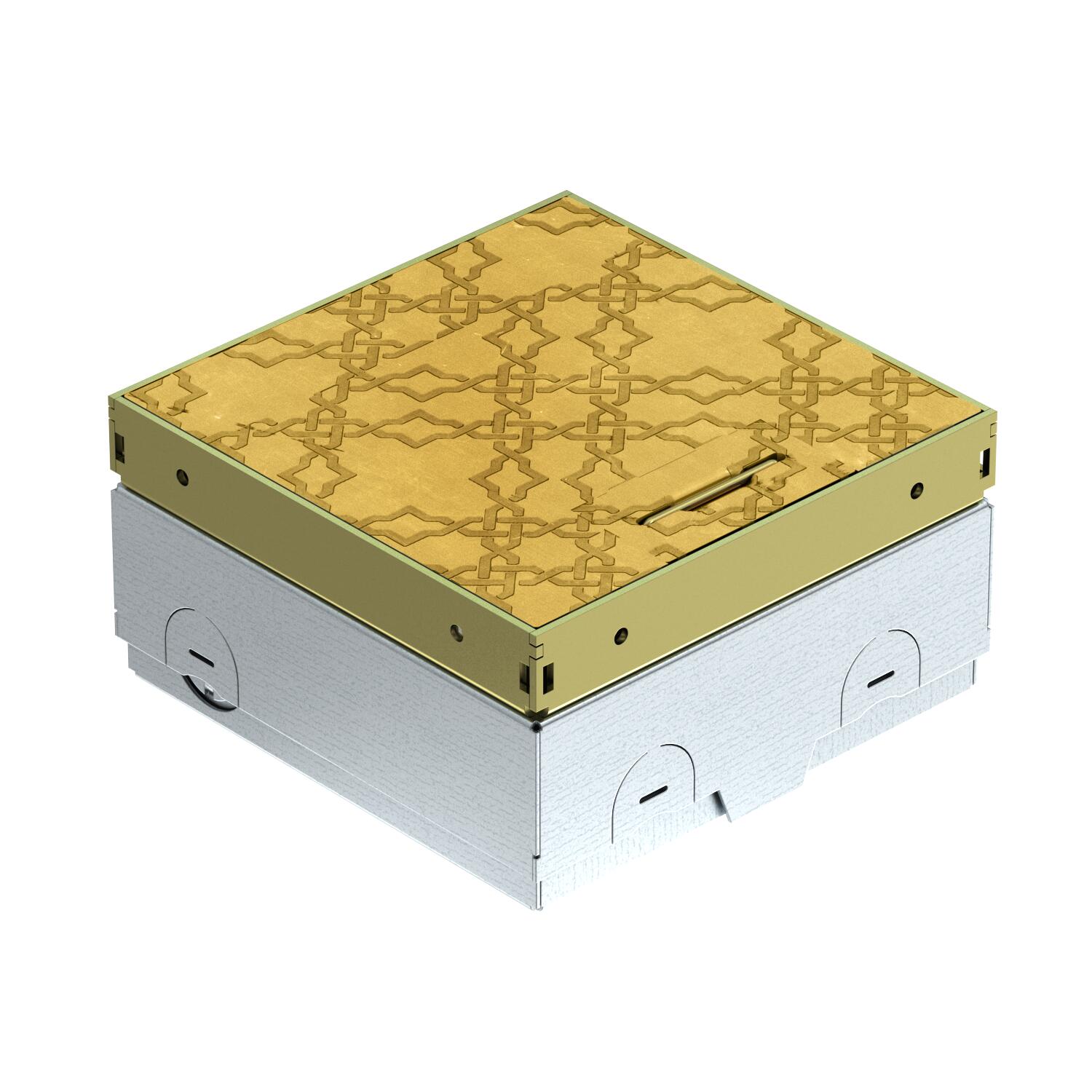

UDHOME-ONE floor socket, without floor covering recess, freely equippable, brass, decorative plate: oriental

Item no. 7368225 | EAN 4012197382377

Product description
Product description
Square floor socket for use in dry-care systems and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 75 mm, the height-adjustment range +30 mm. Frame and cover made of brass and visible in the floor covering. Cover with decorative plate oriental. The load-bearing capacity of 15 kN is only guaranteed when in an unused state. Empty housing for a 45® installation device and a data socket. When delivered, the item is closed with a blanking plate.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Application when unused 6.101.1 Dry floor care
Application when used 6.101.1 Dry floor care
Approvals VDE
Cable outlet version Swivellable cord outlet
Device support to accept mounting boxes no

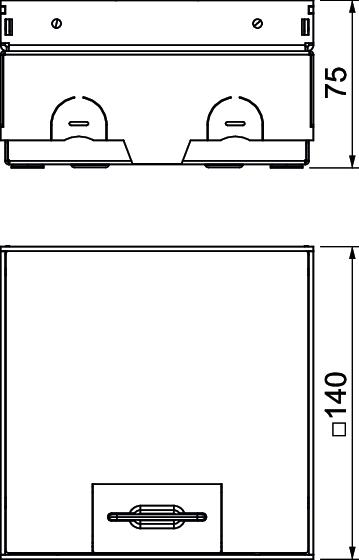

Dimension 140x140x75
Equipment Empty housing
Floor care Dry
Floor covering protection frame no
Floor height, max. 105 mm
Floor height, min. 75 mm
Heavy-duty version no
Height 75 mm
Length 140 mm
Number of installable devices 2
Opening mechanism Handle
Protection rating (IP) when unused IP40
Protection rating (IP) when used IP20
Protection rating IK code IK10
Seal installation option no
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Suitable for screed-covered underfloor ducts no
Suitable for screed-flush closed underfloor ducts no
Suitable for underfloor ducts no
Suitable for wet care no
Version for Square
Vertical load, large area to 15,000 N
Vertical load, small area to 3,000 N
Width 140 mm
With floor covering recess no
All types

All types

Types Floor covering thickness Item no. Quantity SSU
UDHOME-ONE GM D2 7368225
1 piece
