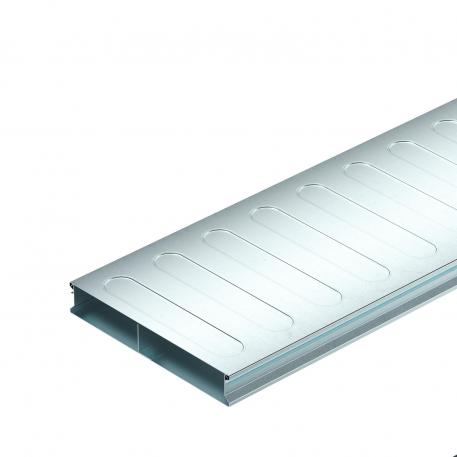

Underfloor duct, 2 pieces, 2-compartment, duct height 38 mm 2000 | 250 | 2

Underfloor duct, 2 pieces, 2-compartment, duct height 38 mm

Item no. 7400267 | EAN 4012197351984

Item no. / Types

Length	2000 mm

Width

Number of compartments	2 St.

Product description

Product description

Underfloor duct (2 piece) for routing cables in screed-covered underfloor systems, according to EN 50085-2-2. Removable and continuously lockable duct cover. With separating retainer in the duct base.

Technical data

Technical data

Application area	Screed-covered
CO₂ Footprint (GWP) Cradle-to-Gate	8,569 kg CO₂e / 1 Meter
Cross-section, draw a	3717 mm²
Cross-section, draw b	4807 mm²
Decouplable	no
Dimension	2000x250x38

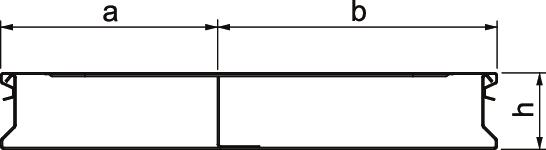

Dimension a	110 mm
Dimension b	140 mm
Dimension h	38 mm
Duct height, min.	38 mm
Floor plate	yes

Height	38 mm
Length	2000 mm
Material	Steel
Number of compartments	2 St.
Number of fixed partitions	1
Removable cover	yes
Surface	Strip galvanized
Trunking width, min.	250 mm
Usable cross-section	8524 mm²
Width	250 mm
