Universal cover | | 1.8 | White
morepic-1 morepic-2

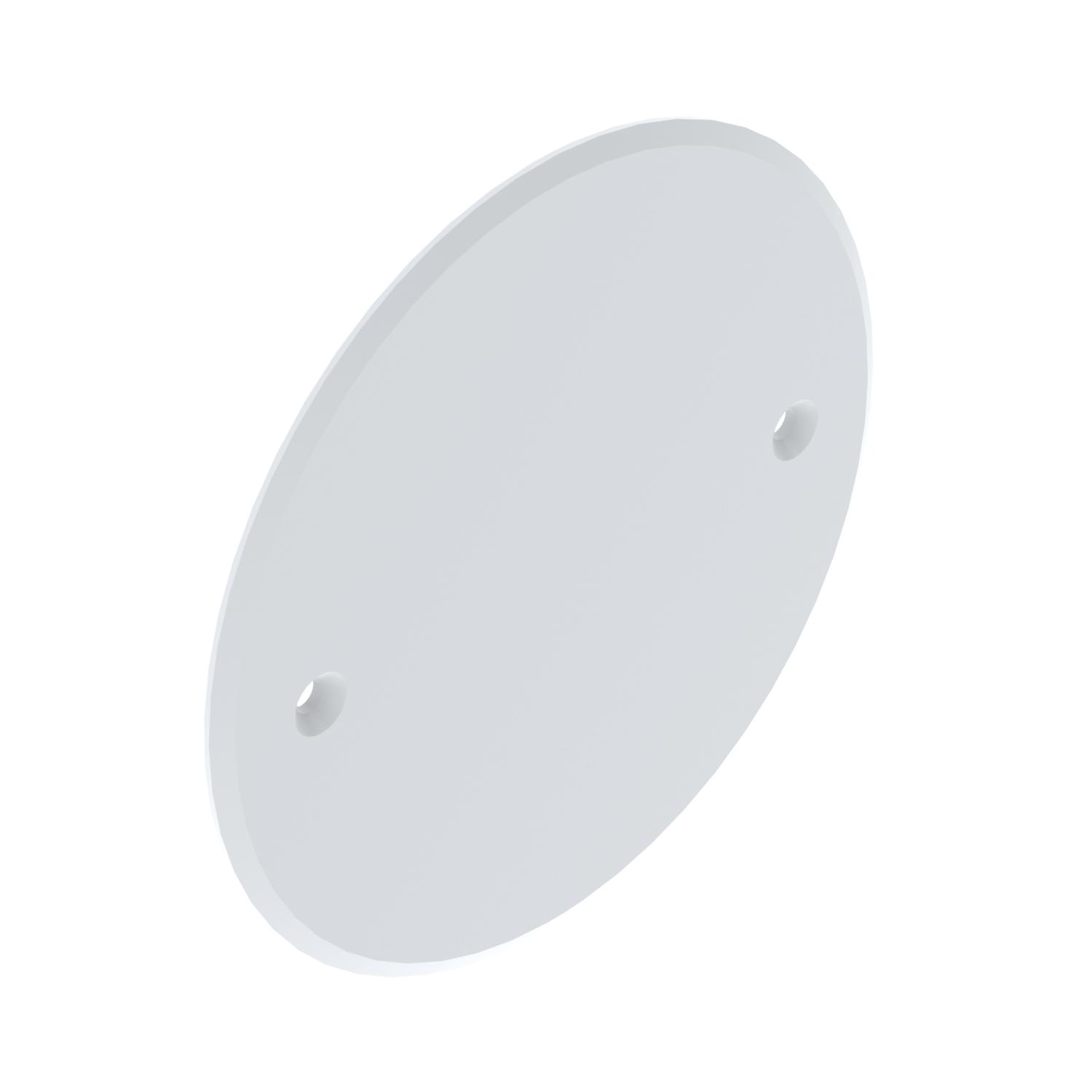

Universal cover

Item no. 2003748 | EAN 4012196715923

2003748 / ZA 60-D
1.8 mm
White
Product description
Product description
Universal cover for flush-mounted and cavity wall box. With drill holes, hole spacing 60 mm for all device boxes, retractable screws. Roughened surface.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • Diameter 80 mm
Technical data

Technical data

Colour White

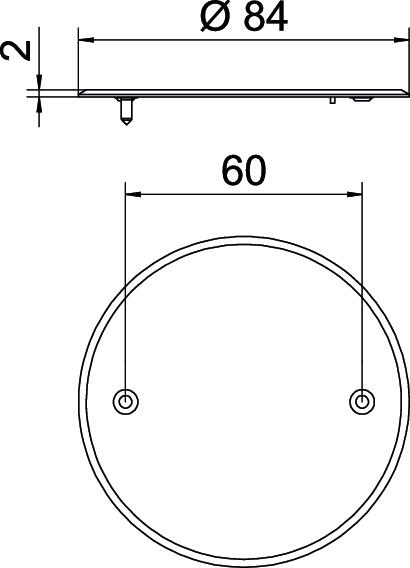

Diameter 84 mm
Dimension Ø84mm
Fastening type Screws ,
Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C
Halogen-free yes
Height 1,8 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Shape Round
With bolts no
All types

All types

Types Height Colour Item no. Quantity SSU
ZA 60-D 1.8 mm White 2003748
25 piece
