UP Flush-mounted electronics box 66, airtight 67 | 61 | 20/25 mm | 24

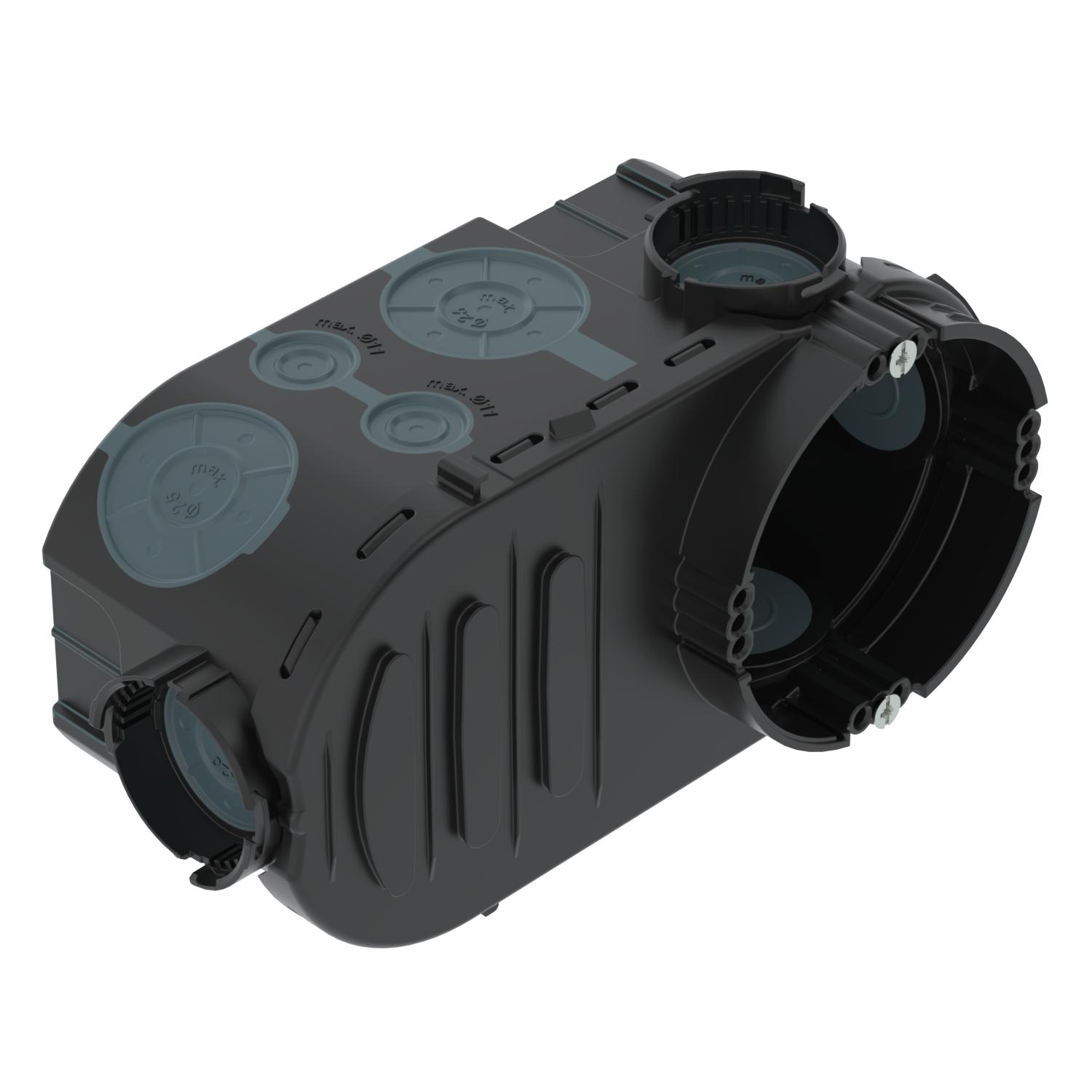

UP Flush-mounted electronics box 66, airtight

Item no. 2003727 | EAN 4012196856596

Item no. / Types	2003727 / UE 66-L

Height	67 mm

Diameter	61 mm

for pipe diameter	20/25 mm

No. of entries	24

Product description

Product description

Flush-mounted electronics box, with additional clamping space and airtight membrane entries, for use in masonry with an installation depth of at least 67 mm.

• With 4 couplable connectors with bayonet lock

• 4 combination pipe entries of Ø 20 and 25 mm

• 4 entries up to Ø 20 mm

• 14 entries up to Ø 11 mm

• 2 entries up to Ø 20 mm in the base

• Partition for different voltages, with break-out openings

• 4 x 3 screw domes
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.

Technical data

Technical data

Airtight	yes
Colour	deep black / blue grey
Combination entries Ø 20 / 25 mm	4
Cover	Without
Cover fastening	Screws ,
CO₂ Footprint (GWP) Cradle-to-Gate	0,3606 kg CO₂e / 1 Piece
Device fixing	Screws ,
Diameter	61 mm

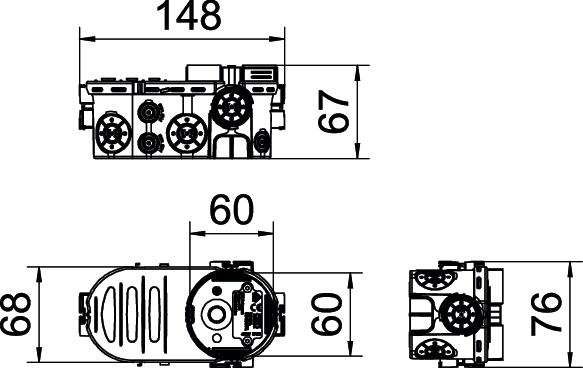

Dimension	Ø60xH67x148
Entry from rear	yes
Flame-resistant	acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
for pipe diameter	20/25 mm
Halogen-free	yes
Height	67 mm
Impact-resistant	yes

Length	148 mm
Material	Polypropylen / Thermoplastisches Elastomer
No. of entries	24
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Pipe entries Ø 20 mm	6
Protection rating	IP30
Rated voltage	400 V
Shape	Oval
Type of housing penetration	Insertion membrane
Type of insertion…	NYM cables, data cables and corrugated pipes
Width	76 mm
With bolts	yes
With nail strap	no

All types

All types

Types	Height	Diameter	for pipe diameter	No. of entries	Item no.	Quantity	SSU
UE 66-L	67 mm	61 mm	20/25 mm	24	2003727	piece	10 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
UP Quick-Fix	ZU 60-QF	2003740	piece	25 piece
UP Plaster compensation ring 12 mm, flush-mounted device box	ZU 12-PR	2003742	piece	25 piece
UP Plaster compensation ring 24 mm, flush-mounted device box	ZU 24-PR	2003744	piece	25 piece
UP Signal cover flush-mounted boxes, single	ZU 60-SD	2003760	piece	50 piece
