UP Flush-mounted outlet box 35 | 20 mm | 4
morepic-1 morepic-2

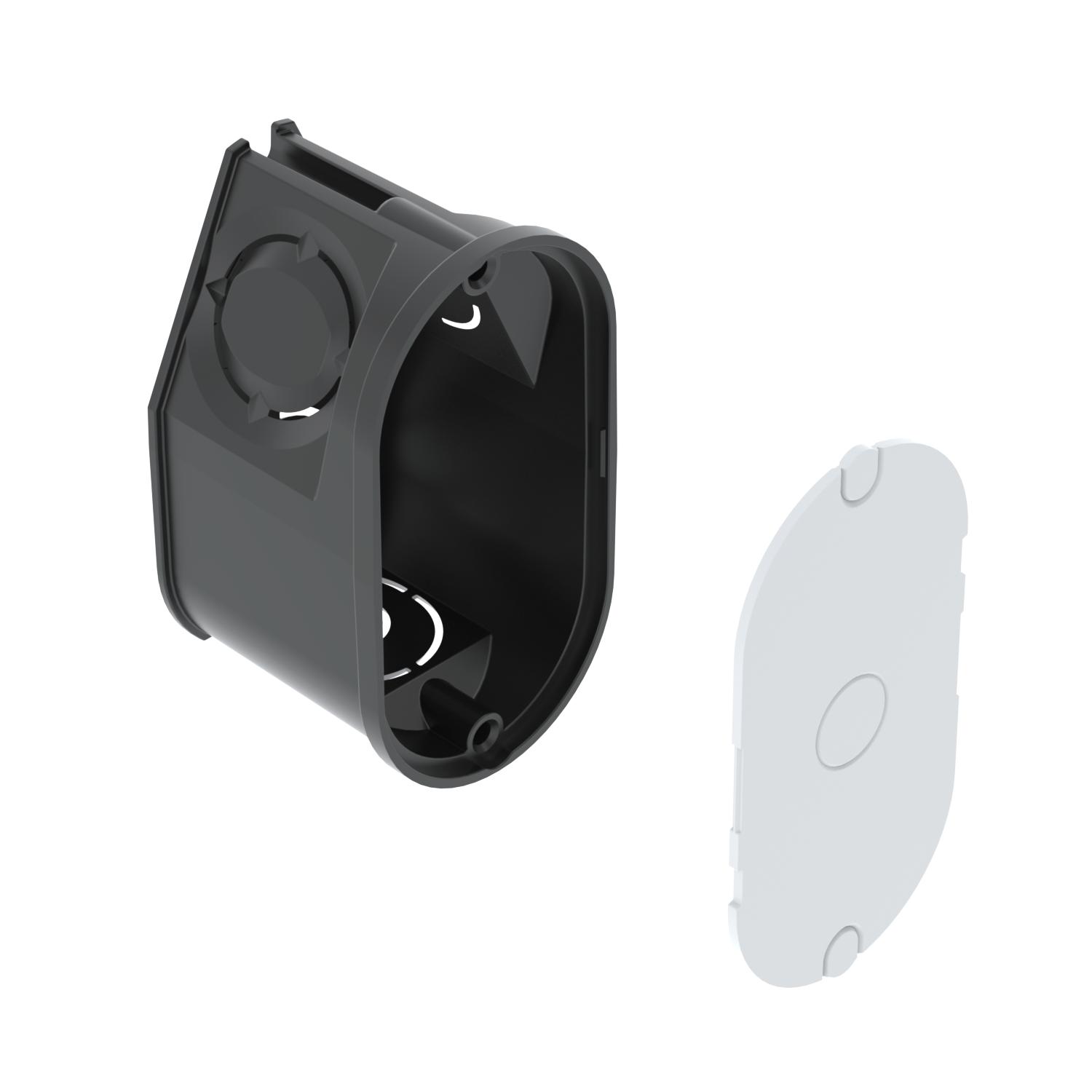

UP Flush-mounted outlet box

Item no. 2003732 | EAN 4012196715862

2003732 / UG 30-WA-D
35 mm
20 mm
4
Product description
Product description
Flush-mounted outlet box for single cable routing. Oval shape, for use in masonry with an installation depth of at least 35 mm.

• 2 entries up to Ø 20 mm
• 1 combination entry of Ø 10 and 20 mm
• 1 entry up to Ø 20 mm in the base
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 30
  • Nominal cross-section 1.5 mm²
Technical data

Technical data

Airtight no
Colour Jet black
Cover White
Cover fastening Locking
CO₂ Footprint (GWP) Cradle-to-Gate 0,093 kg CO₂e / 1 Piece

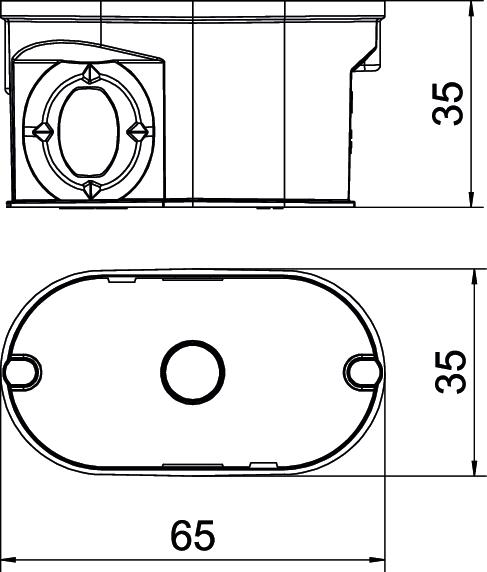

Dimension Ø2x35mm, H35
Entry from rear yes
Flame-resistant acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
for pipe diameter 20 mm
Halogen-free yes
Height 35 mm
Impact-resistant yes
Length 65 mm
Material Polypropylene
Max. Conductor cross-section 2,5 mm²
No. of entries 4
Nominal cross-section, max. 2,5 mm²
Nominal cross-section, min. 1,5 mm²
Pipe entries Ø 20 mm 4
Protection rating IP30
Rated voltage 400 V
Shape Miscellaneous
Type of housing penetration Break-out opening
Type of insertion… NYM cables, data cables and corrugated pipes
Width 35 mm
With bolts no
With nail strap no
All types

All types

Types Height for pipe diameter No. of entries Item no. Quantity SSU
UG 30-WA-D 35 mm 20 mm 4 2003732
25 piece
