UP Quick-Fix
Item no. 2003740 | EAN 4012196700806
- Product description
-

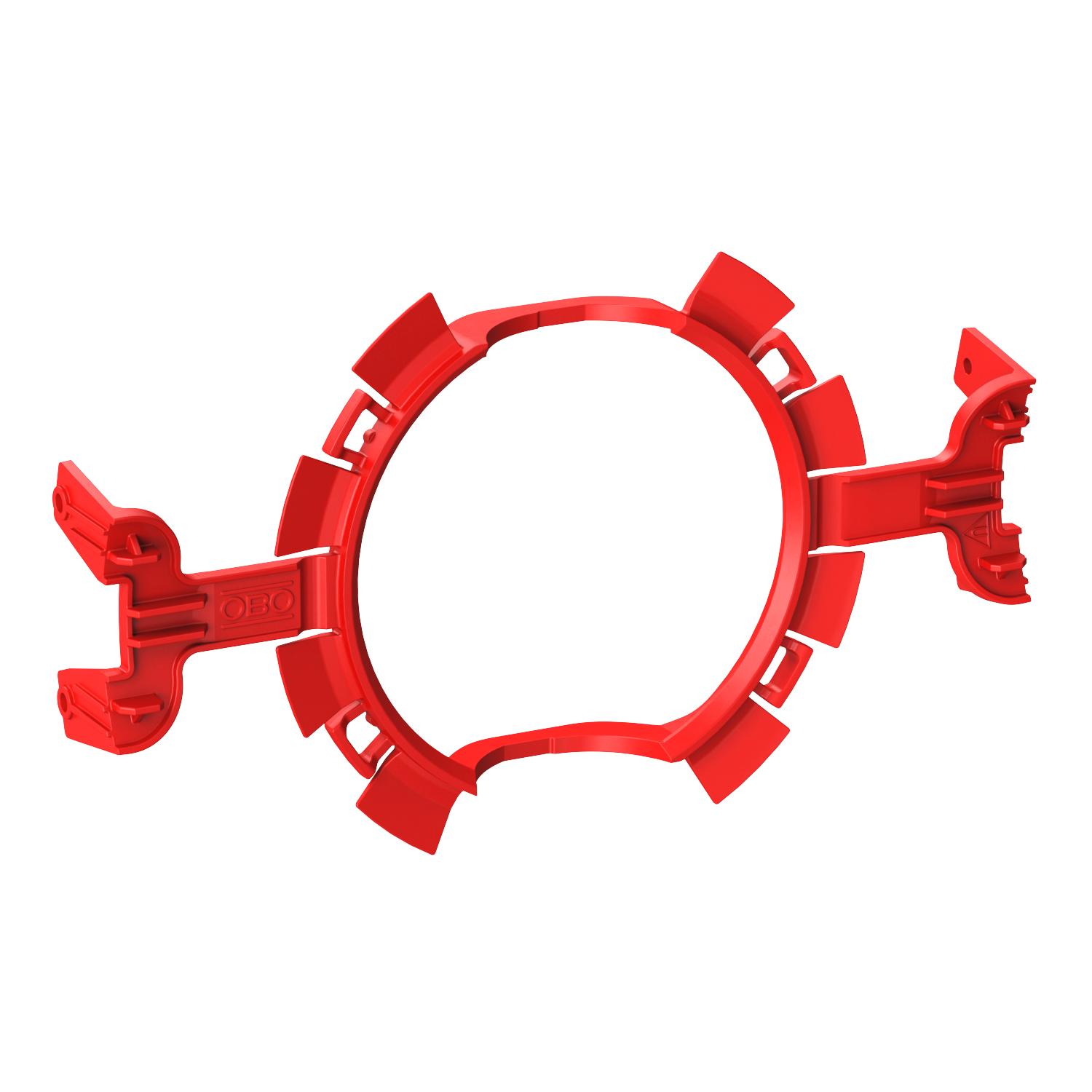

Product descriptionQuick fixing through clamping of flush-mounted device boxes Ø 60 mm, instead of plastering or sticking.
For openings with a diameter of 80 mm. Not suitable for the use with thin plaster.
-
- Technical data
-
Technical data

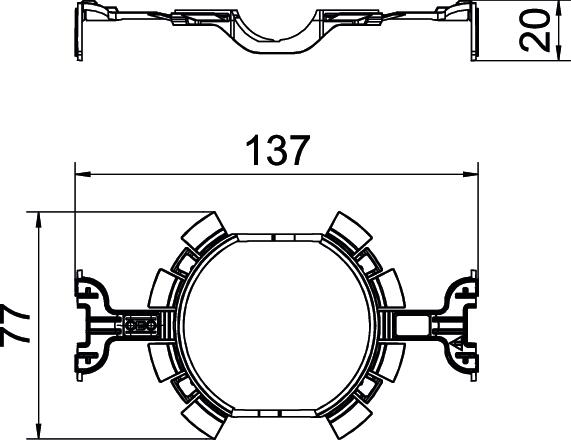

Colour Signal red Diameter 60 mm Diameter, interior 60 mm Dimension Ø60mm Flame-resistant acc. to VDE 0471/IEC 60695-2-11, test temperature 650°C Halogen-free yes Material Polypropylene Suitable for cavity wall box no Type of accessory Miscellaneous - All types
- Downloads
-
Data sheet ZU 60-QF / 2003740 , 0.17MB , pdfREACH Declaration of conformity ZU 60-QF / 2003740 , 0.12MB , pdfRoHS Declaration of conformity ZU 60-QF / 2003740 , 0.13MB , pdfMounting instructions Mounting instructions, UP flush-mounted device boxes , 12.98MB , pdf
