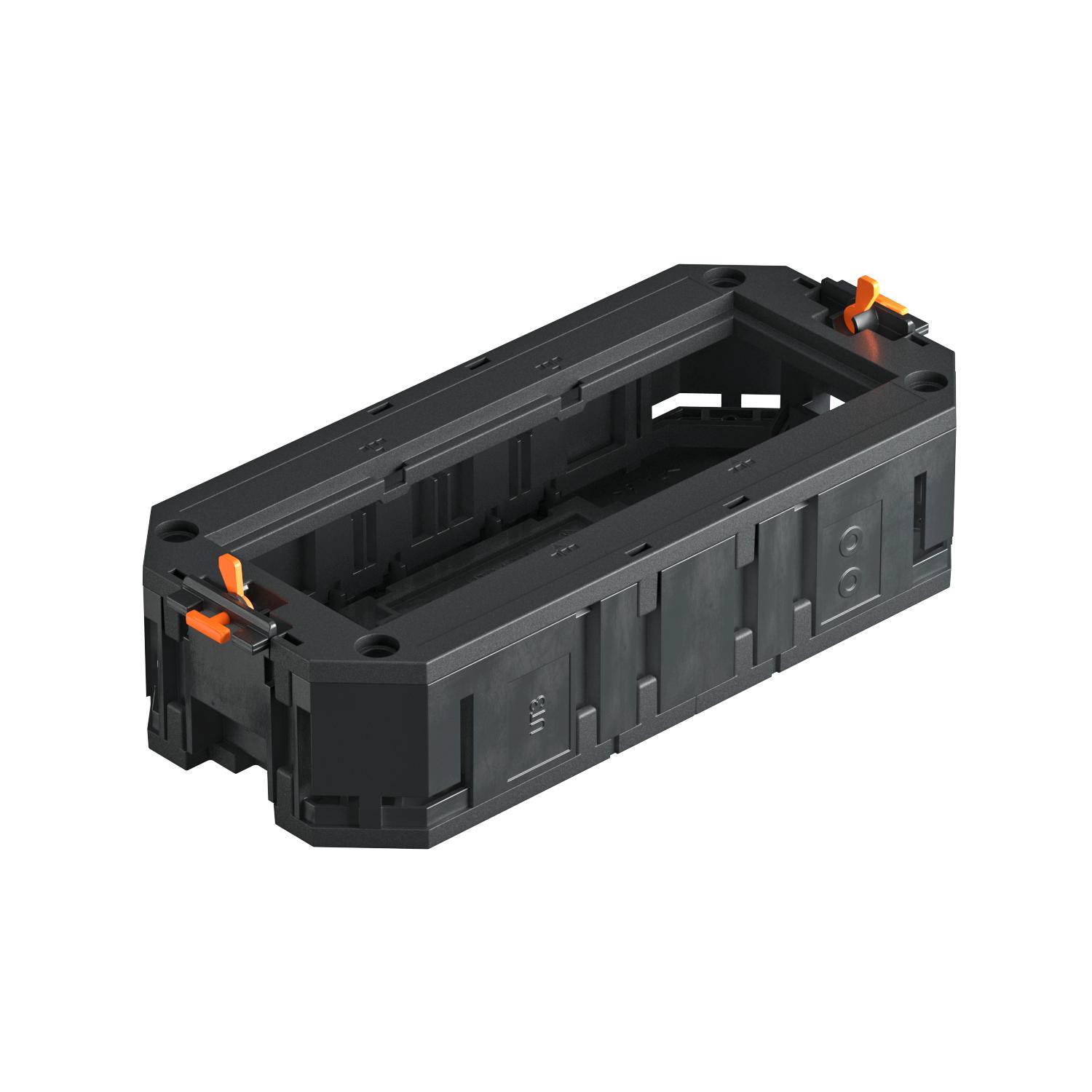

UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm

Item no. 7408723 | EAN 4012196435289

7408723 / UT3 45 3
165 mm
Product description

Product description

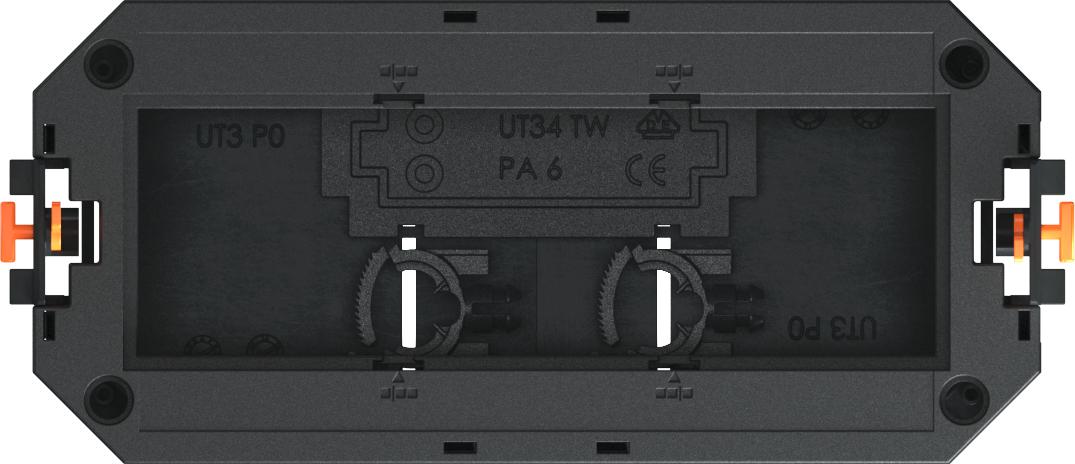

Universal support with two strain reliefs, mounting bridges, partition and cover plate UT3 P3 for the installation of 3 Modul 45 devices in device installation units of the nominal sizes 2, R4, 4 and R7.



  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Graphite black; RAL 9011

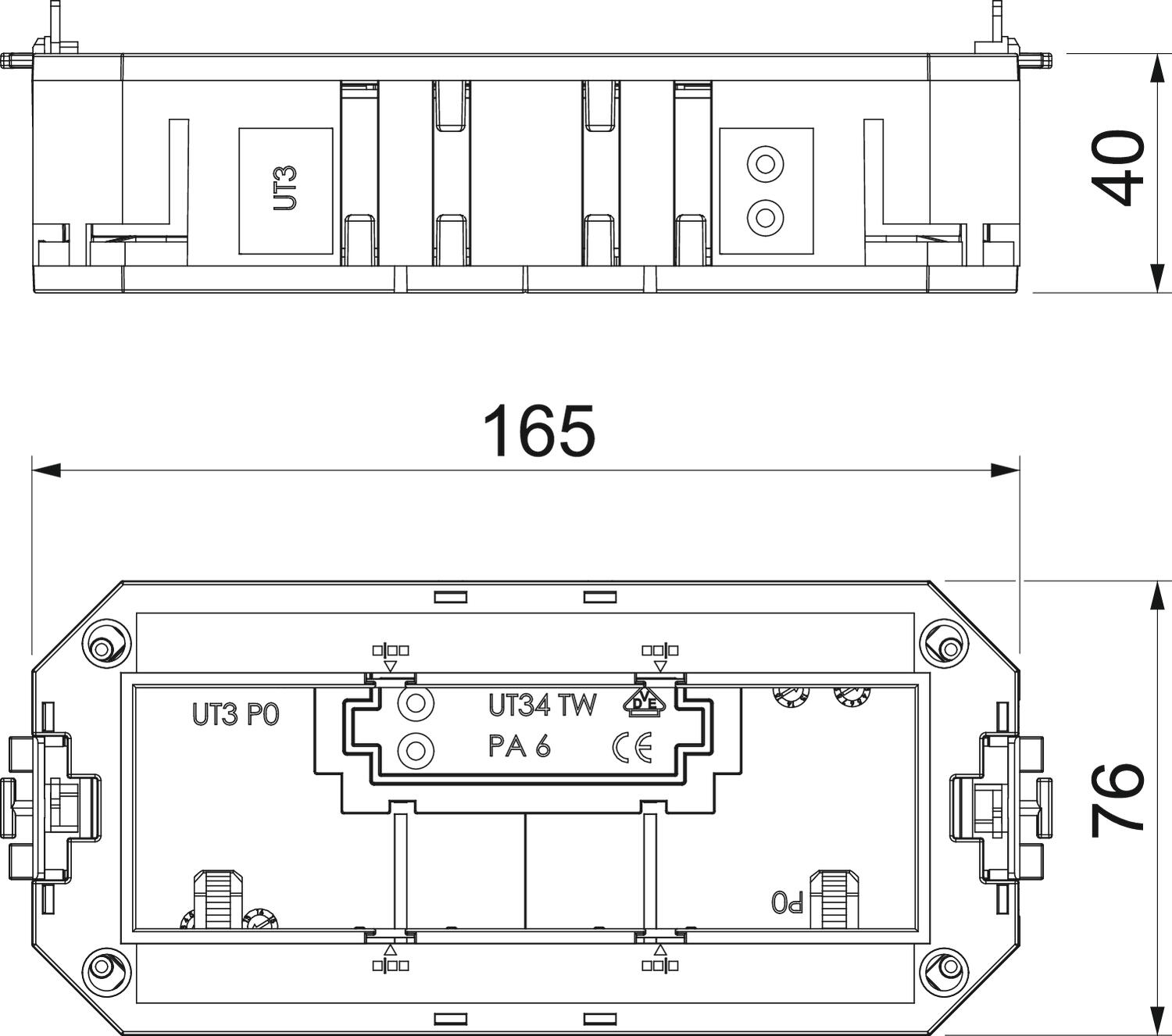

Dimension 165x76x40
Height 40 mm
Installation technology Grid M45
Length 165 mm
Material Polyamide
No. of entries 4

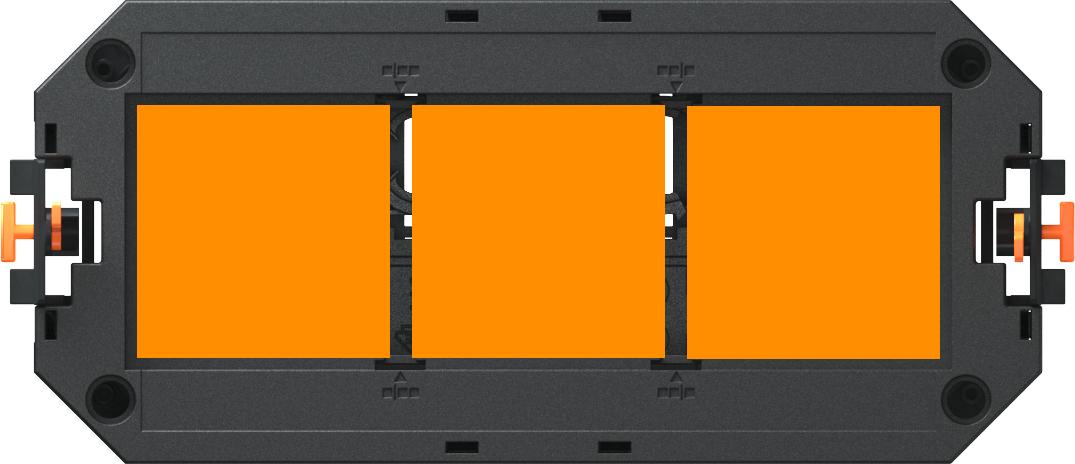

Number of installable devices 3
Number of strain reliefs 2
Version for Socket shape
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UT3 45 3 165 mm 7408723
1 piece
Downloads

Download

Declaration of conformity UT3 45 3 / 7408723 , 0.13MB , pdf
Download
REACH Declaration of conformity UT3 45 3 / 7408723 , 0.12MB , pdf
RoHS Declaration of conformity UT3 45 3 / 7408723 , 0.12MB , pdf
