V20 surge arrester, leakage current-free, 3-pole 3 | 280 | IP20

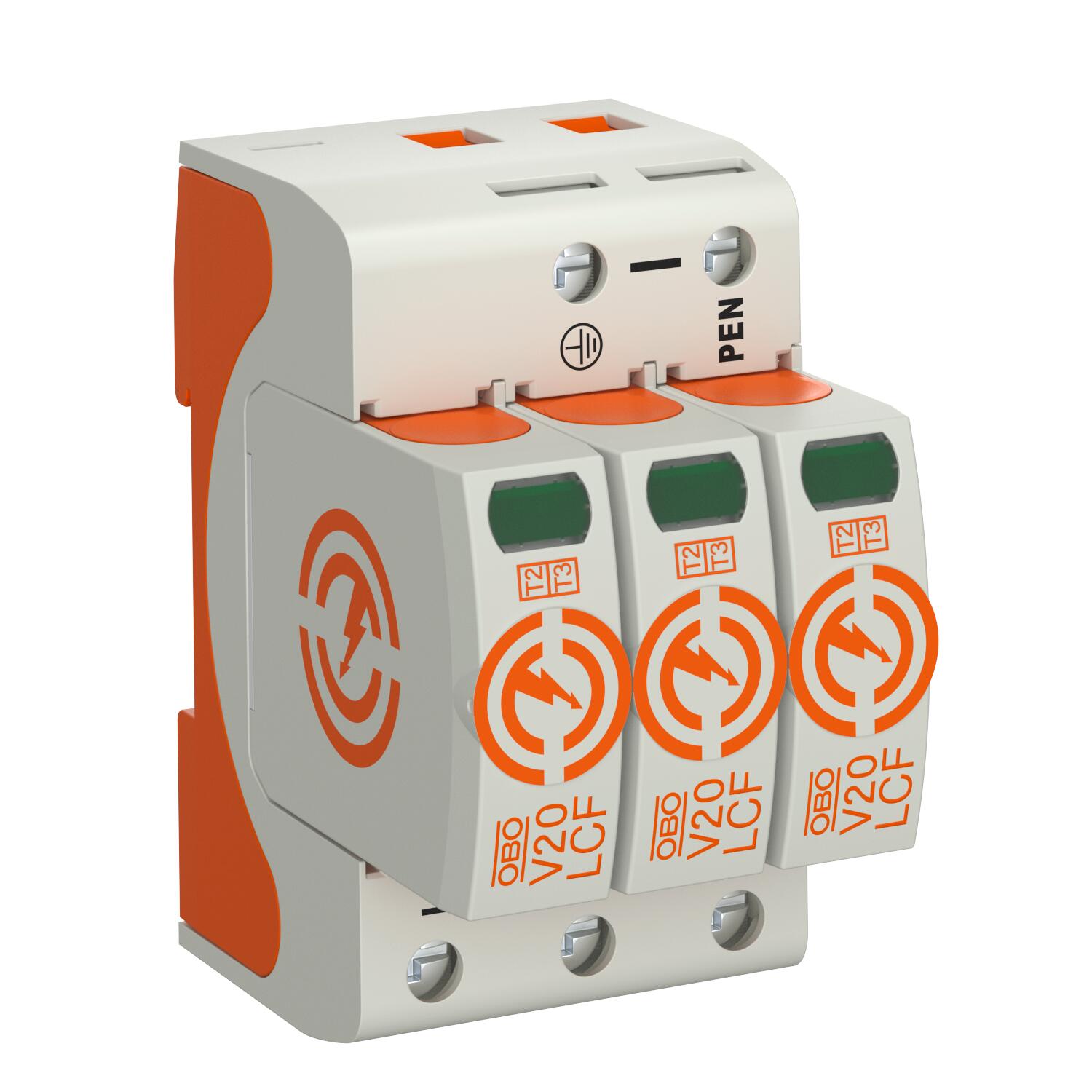

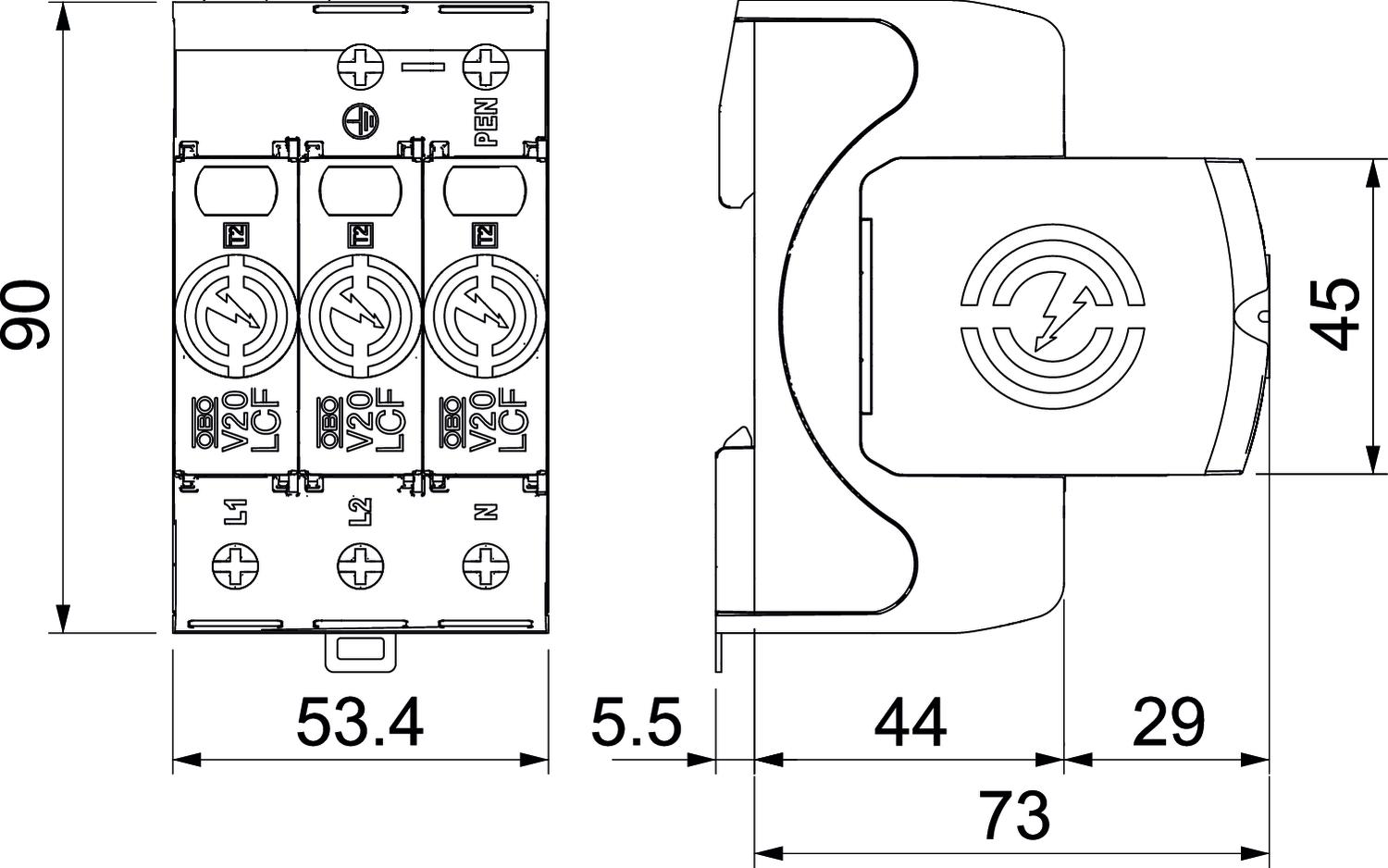

V20 surge arrester, leakage current-free, 3-pole

Item no. 5095528 | EAN 4012196818761

Item no. / Types

Pole version

Maximum continuous voltage AC

Protection rating	IP20

Product description

Product description

Surge arrester, type 2

• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 30 kA (8/20) per pole through a high-performance series connection of varistor and spark gap
• Modular connectable arrester with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0
• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling

Application: Equipotential bonding in main and sub-distributions.

Technical data

Technical data

Approvals	VDE
Arrester surge current (8/20 µs) [total]	90 kA
Blow-out	no
Cable type for surge protection devices	Power cable AV
Conductor cross-section, flexible (fine-wire), max.	35 mm²
Conductor cross-section, flexible (fine-wire), max.	2 AWG
Conductor cross-section, flexible (fine-wire), min.	16 AWG
Conductor cross-section, flexible (fine-wire), min.	1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	2 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	16 AWG
Connection cross-section, FM terminals, max.	16 AWG
Connection cross-section, FM terminals, max.	1,5 mm²
Connection cross-section, FM terminals, min.	21 AWG
Connection cross-section, FM terminals, min.	0,5 mm²
DC network form	no
Dimension	280V
Housing material surge protection components	PA UL 94 V-0
Installation type	DIN rail 35 mm
Integrated back-up fuse	no
IT network form	no
Max. mains-side overcurrent protection	160 A gL/gG
Maximum back-up fuse	160 A
Maximum continuous voltage (L-N)	280 V
Maximum continuous voltage AC	280 V
Maximum discharge current (8/20 μs)	30 kA
Maximum discharge current (8/20 μs) [L-N]	30 kA
Maximum discharge current (8/20 μs) [N-PE]	60 kA
Minimum distance	1,5 mm
Network form	Other
Nominal discharge current (8/20 µs)	20 kA

Nominal discharge current (8/20 µs) [L-N]	20 kA
Nominal discharge current (8/20 µs) [N-PE]	40 kA
Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Other network form	no
Pole version	3
Protection level [L-N]	≤1,5
Protection rating	IP20
Remote signalling	no
Residual voltage [L-N] @ 1 kA	0,8 kV
Residual voltage [L-N] @ 5 kA	1 kV
Response time	<25 ns
Short-circuit resistance for max. mains-side overcurrent protection	50 kA eff
Short-circuit resistant	yes
Signalling on device	Visual
SPD to EN 61643-11	Type 2+3
SPD to IEC 61643-1	Class II+III
SPD to UL 1449	Type 4
Switching power AC	230 V; 0,5 A
Switching power DC	230 V; 0,1 A / 75 V; 0,5 A
Test class, type 2	yes
TN network form	yes
TN-C network form	yes
TN-C-S network form	yes
TN-S network form	yes
Torque	4 Nm
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.	440 V
TOV voltage [L-N] ‒ withstand mode ‒ 5 s	335 V
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms	1200 V
TT network form	no

All types

All types

Types	Pole version	Maximum continuous voltage AC	Protection rating	Item no.	Quantity	SSU
V20-LCF-0-280	-	-	IP20	5095524	piece	1 piece
V20-LCF-1-280	1	280 V	IP20	5095526	piece	1 piece
V20-LCF-3-280	3	280 V	IP20	5095528	piece	1 piece
V20-LCF-4-280	4	280 V	IP20	5095529	piece	1 piece
