Vertical bend, rising, duct height 80 mm, FS

Item no. 7218114 | EAN 4012197332174

7218114 / PLM BR 0810 FS
100 mm
80 mm
Product description
Product description

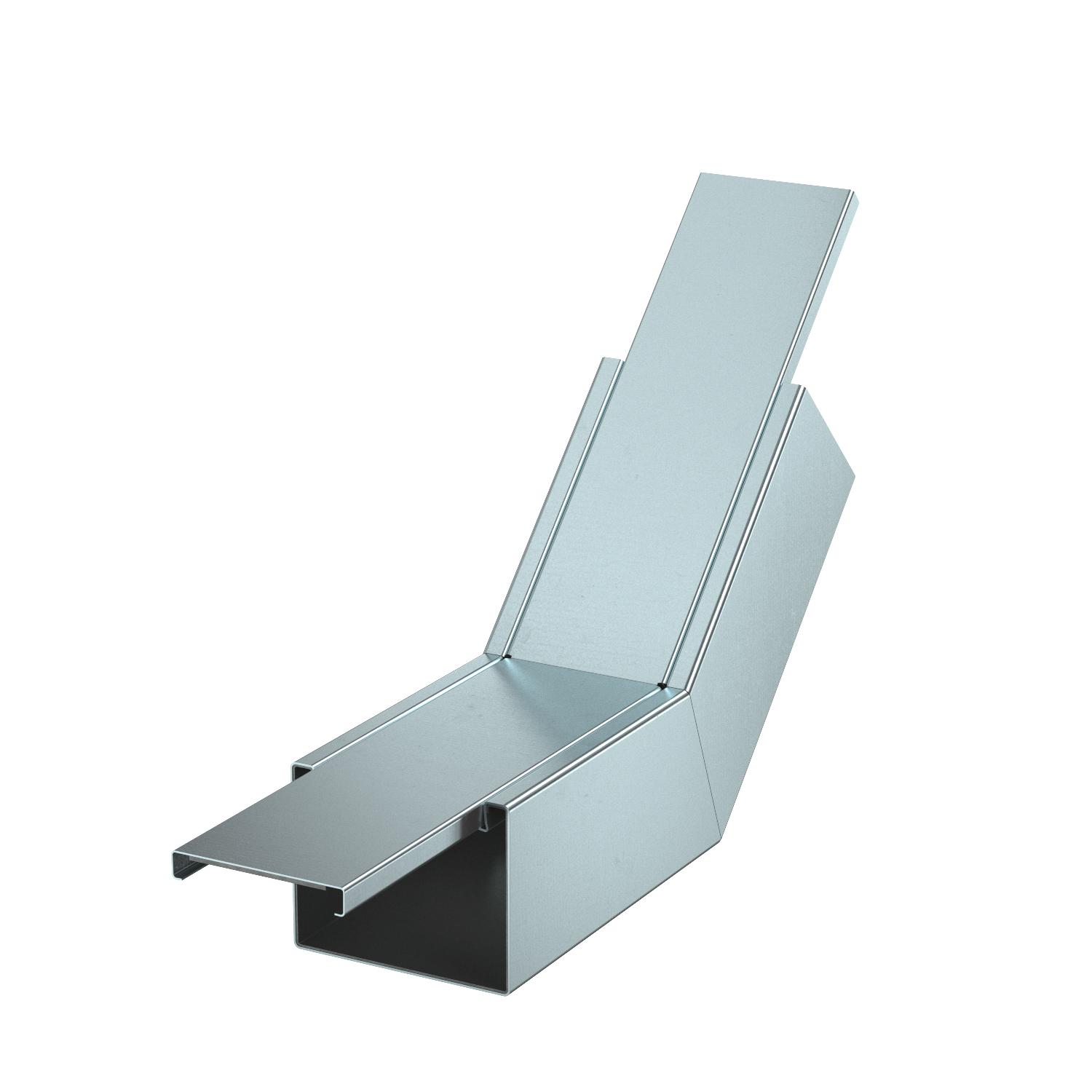

45° vertical bend, rising version, with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Angle of the bend 45 °
Classification EI − installation duct 90
Colour zinc
Cover fastening Miscellaneous

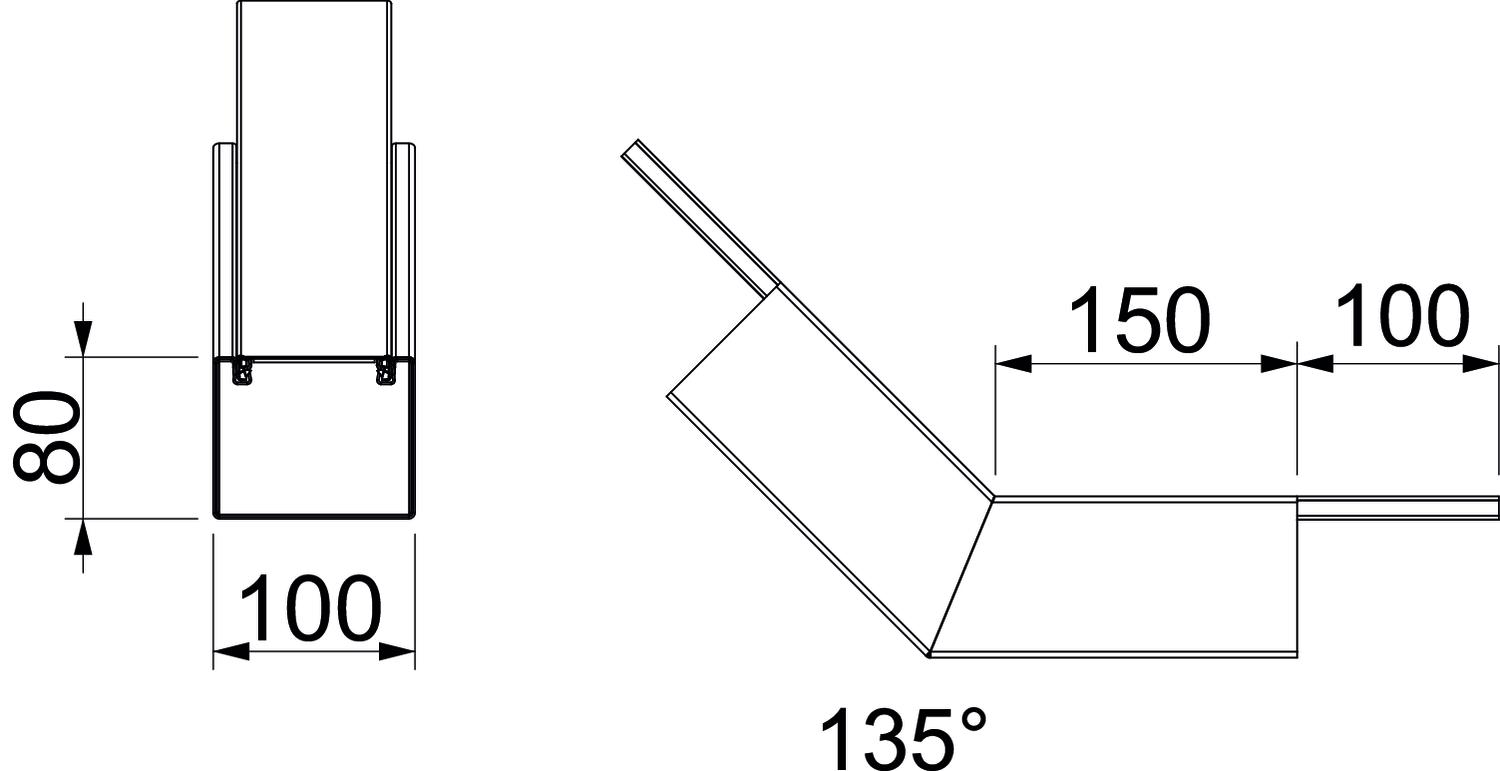

Dimension 435x100x257
Dimension A 150 mm
Dimension B 100 mm
Dimension H 80 mm
Jacketing Steel
Material Steel
Number of flammable sides 4
Partitions possible no
Surface Strip galvanized
Usable cross-section 5180 mm²
With perforation yes
All types

All types

Types Dimension B Dimension H Item no. Quantity SSU
PLM BR 0810 FS 100 mm 80 mm 7218114
1 piece
Downloads

Download

EU declaration of conformity PLM BR 0810 FS / 7218114 , 0.11MB , pdf
Download

No invitation to tender text is available for this product.
