VH cover plate, for 1x extension socket, type ASD

Item no. 6109839 | EAN 4012195428459

Product description

Product description

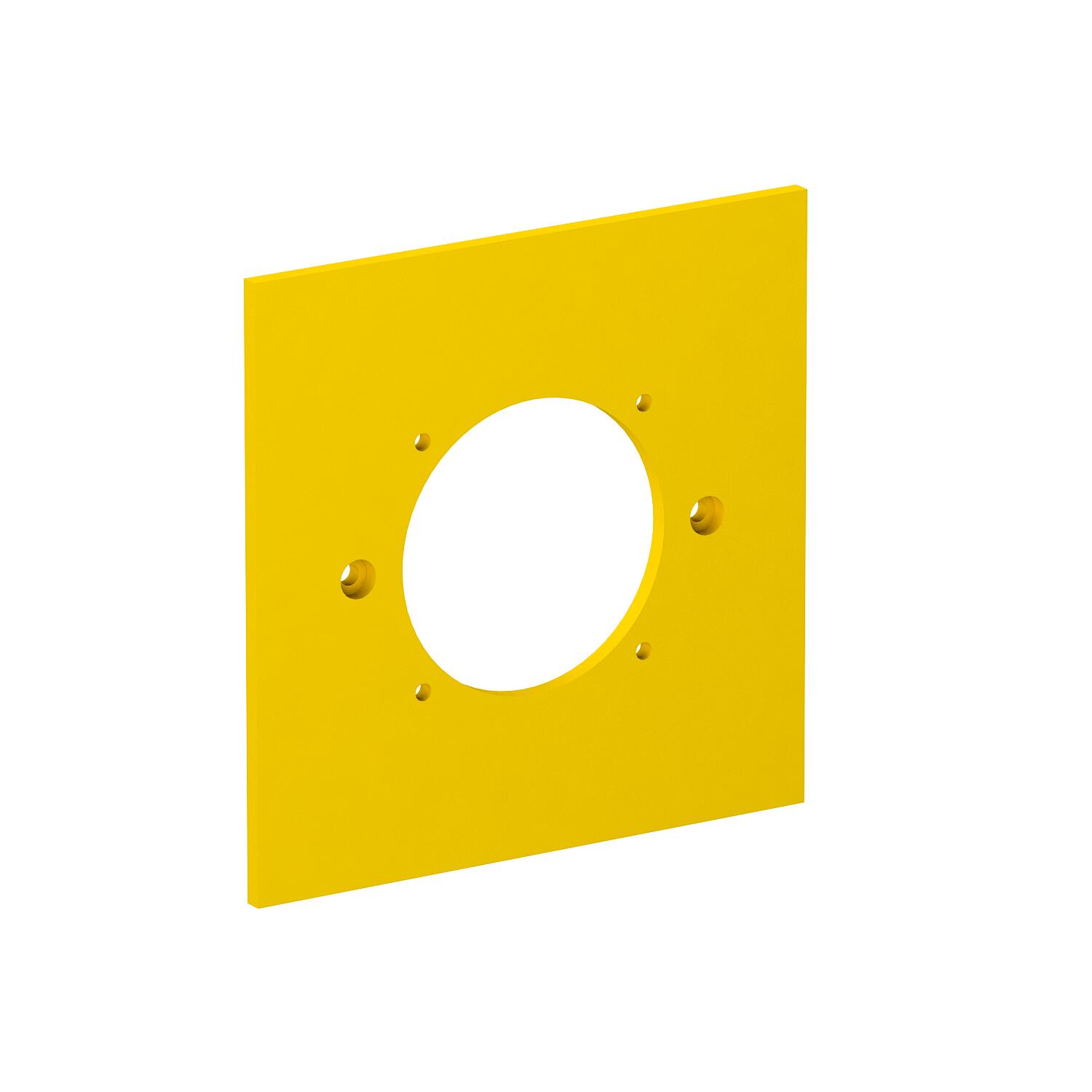

Cover plate with opening for the installation of a socket with 38 x 38 mm fastening system.

  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Blanking lid no
Colour Rape yellow; RAL 1021

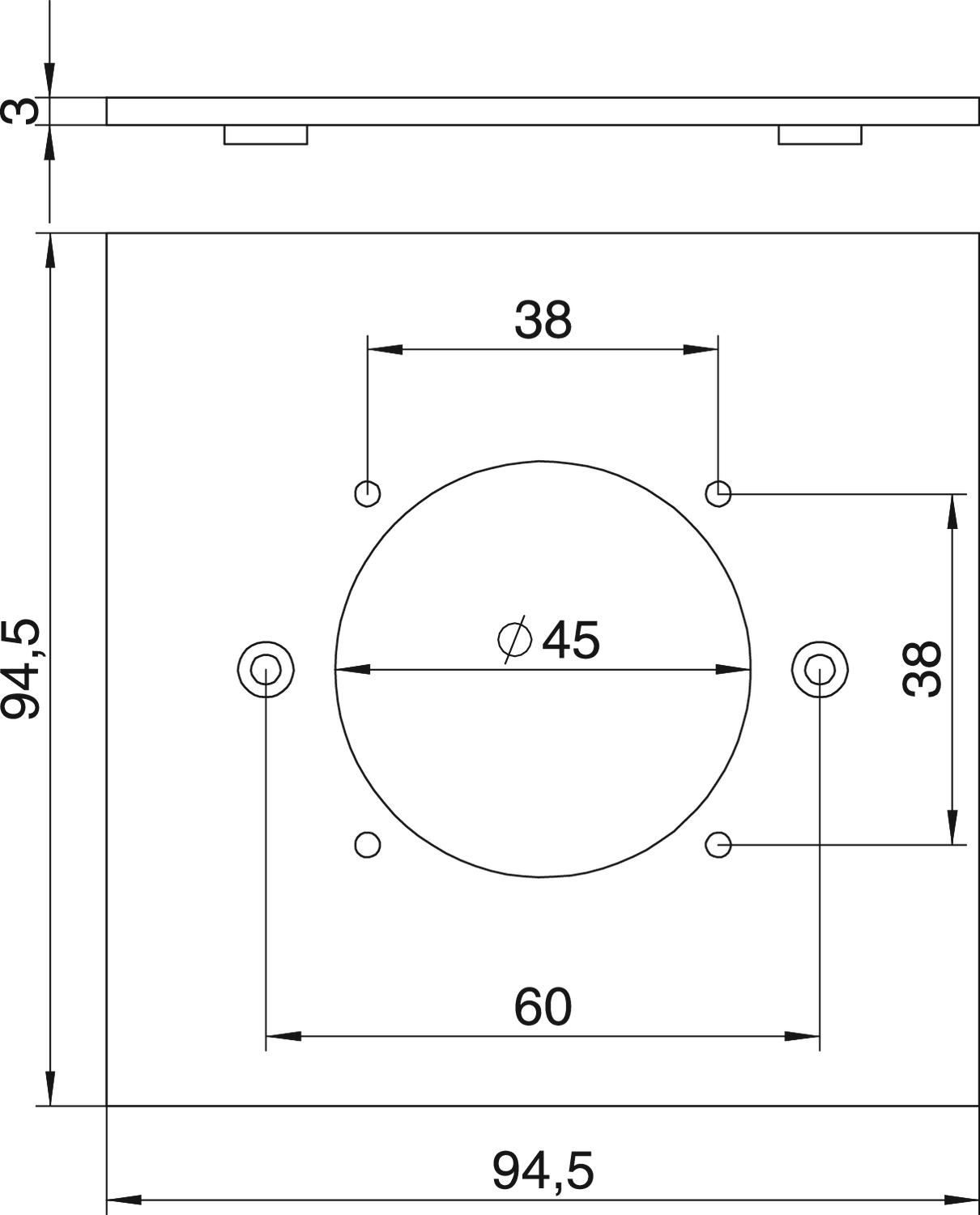

Dimension 95x95mm
Fastening type Screw-on
Halogen-free yes
Height 94,5 mm
Installation technology Miscellaneous
Material Polyamide
Number of units 1
Opening shape Round
Protection rating IP20
Width 94,5 mm
All types

All types

Types Item no. Quantity SSU
VH-P7 6109839
1 piece
