VH cover plate, for Modul 45 devices, single

Item no. 6109840 | EAN 4012195125327

Product description

Product description

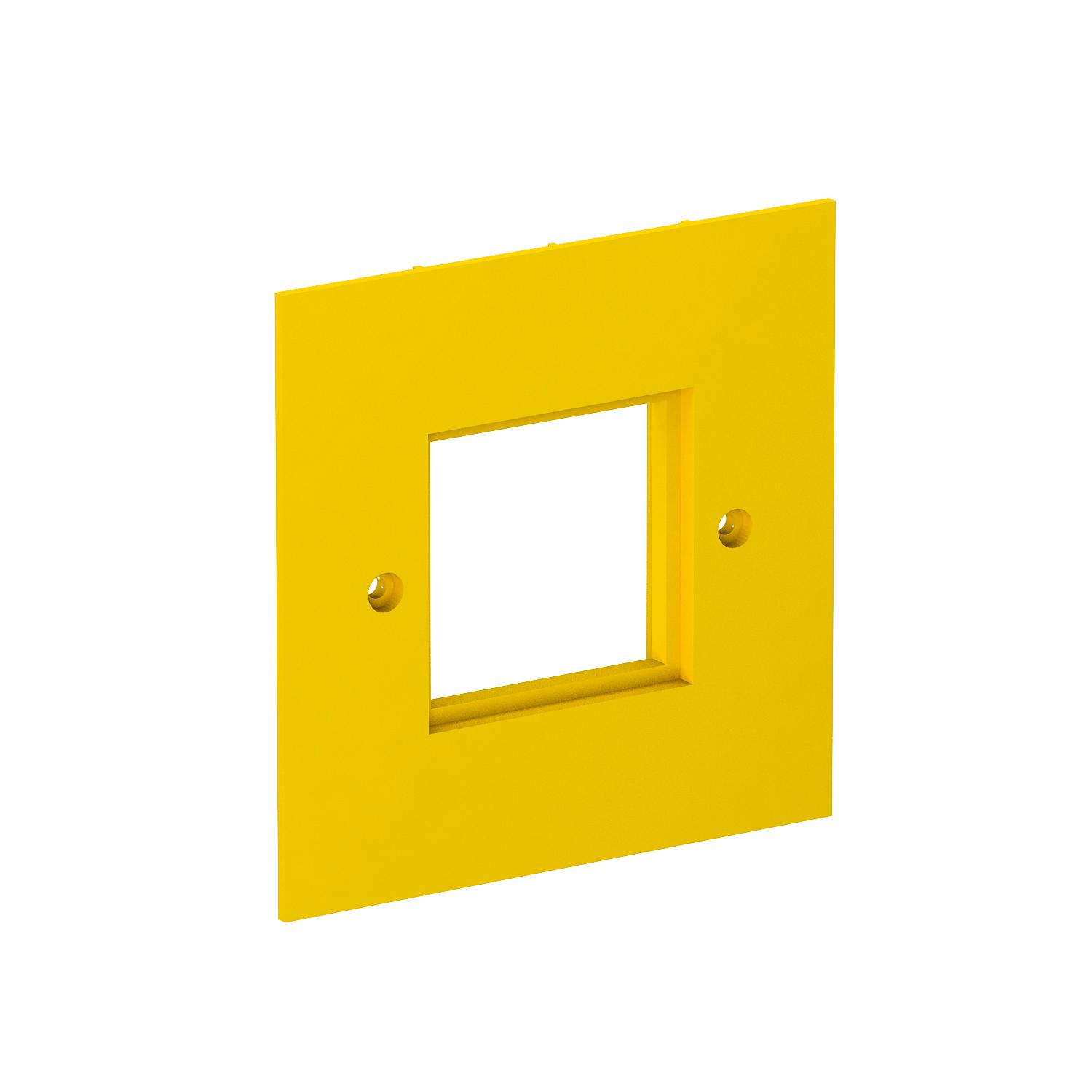

Cover plate, for Modul 45 devices, single.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Blanking lid no
Colour Rape yellow; RAL 1021

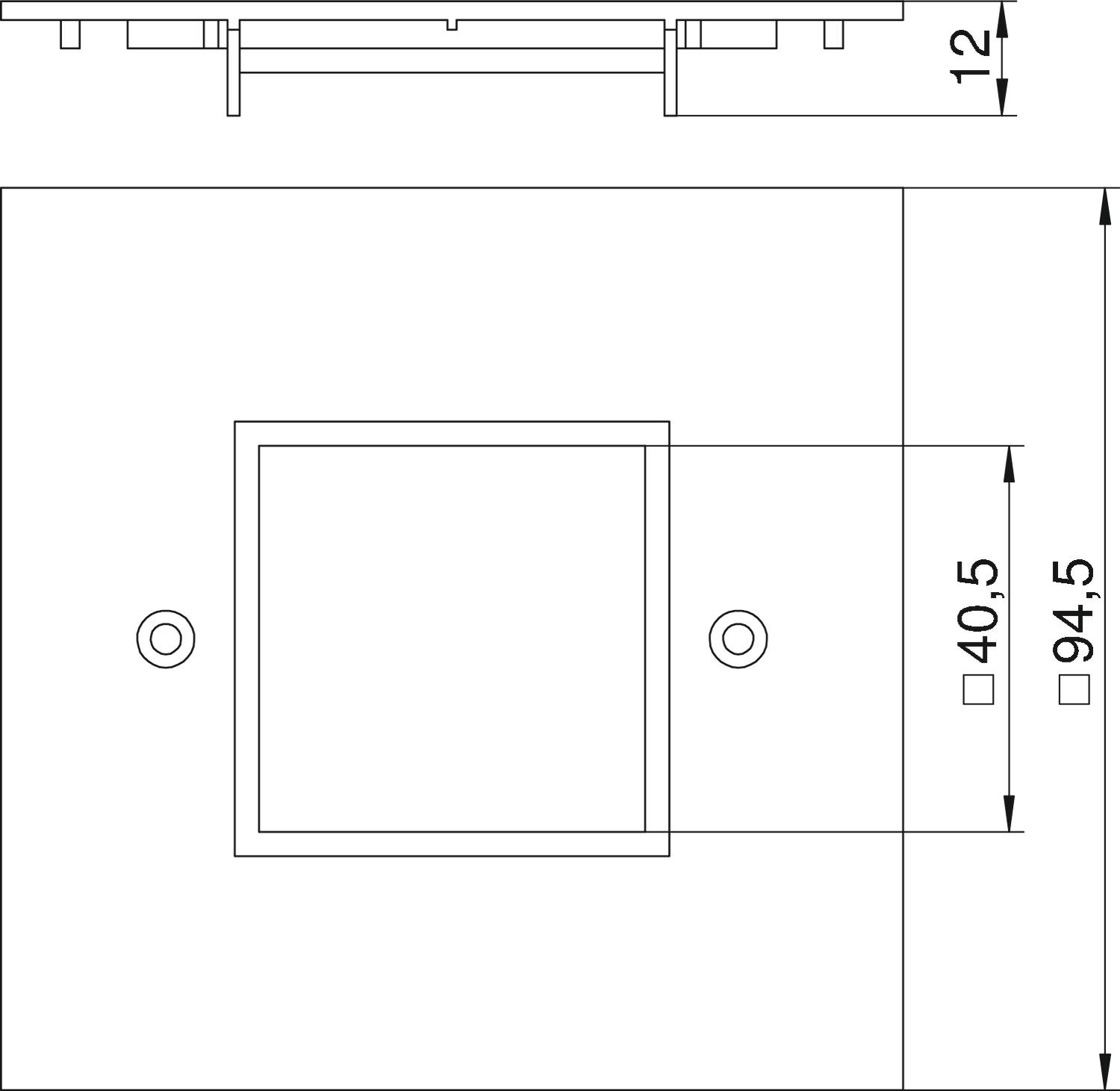

Dimension 95x95mm
Fastening type Screw-on
Halogen-free yes
Height 94,5 mm
Installation technology Grid M45
Material Polyamide
Number of units 1
Opening shape Rectangular
Protection rating IP20
Width 94,5 mm
All types

All types

Types Item no. Quantity SSU
VH-P4 6109840
1 piece
Downloads

Download

Download

REACH Declaration of conformity VH-P4 / 6109840 , 0.12MB , pdf
RoHS Declaration of conformity VH-P4 / 6109840 , 0.12MB , pdf

VH-P4 / 6109840
