Wall and support bracket AW 15 FT
Item no. 6420656 | EAN 4012196207077
- Product description
-
Product descriptionLight-duty wall and support bracket with welded head plate.
-
- Technical data
-
Technical data

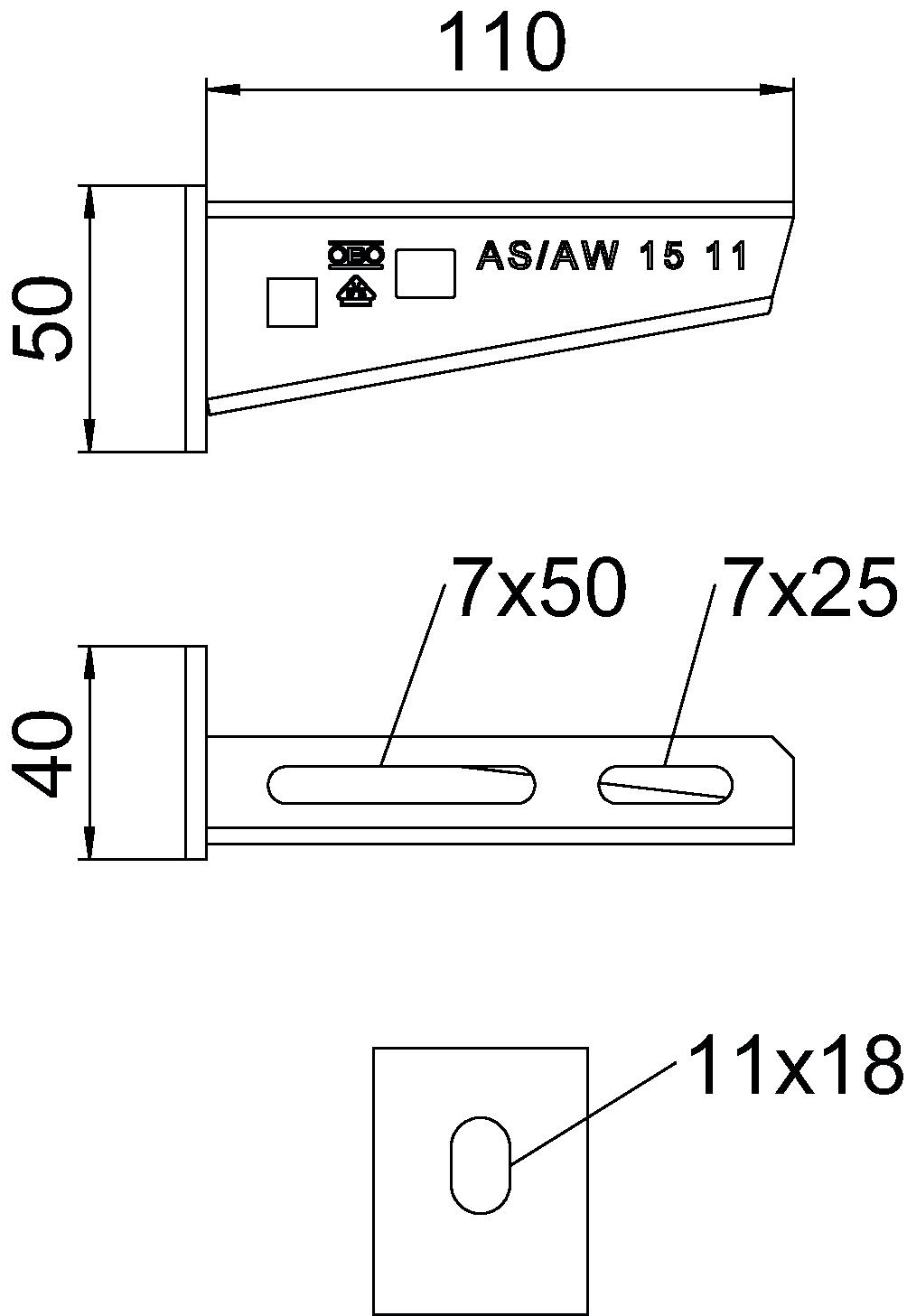

Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension B110mm Dimension A 40 mm Dimension B 110 mm Dimension H 50 mm EPD article yes F in kN 1,5 kN Height 50 mm Height 1,97 in Hole diameter 11 mm Length 40 mm Maintain electrical functions yes Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 4 in Width 110 mm Technical data
Load diagram, bracket, type AW 15
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
