Wall and support bracket MWA 12 A2
Item no. 6424432 | EAN 4012197253554
- Product description
-

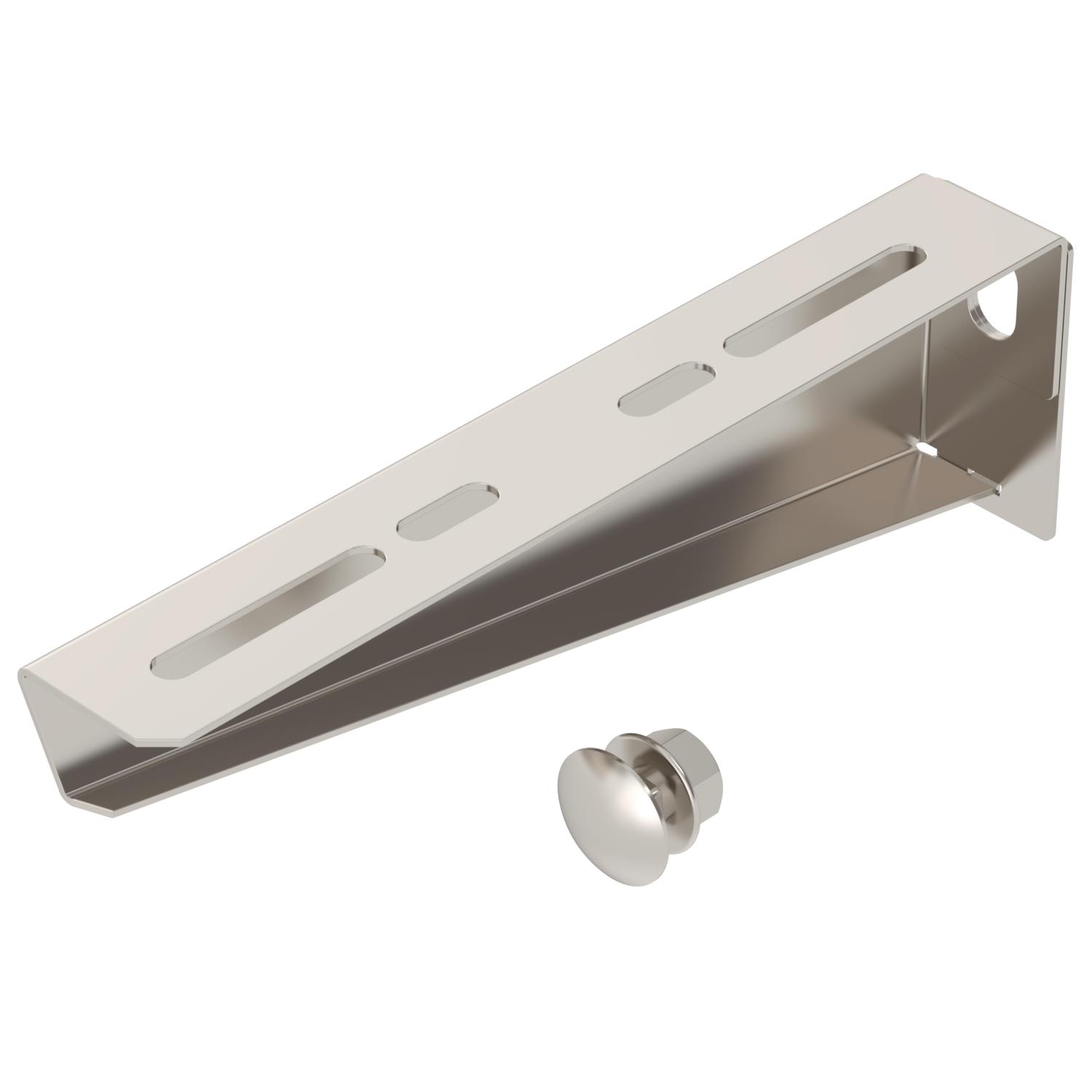

Product descriptionLight-duty wall and support bracket.
Including truss-head bolt M10 x 25 for fastening to
U supports.
-
- Technical data
-
Technical data

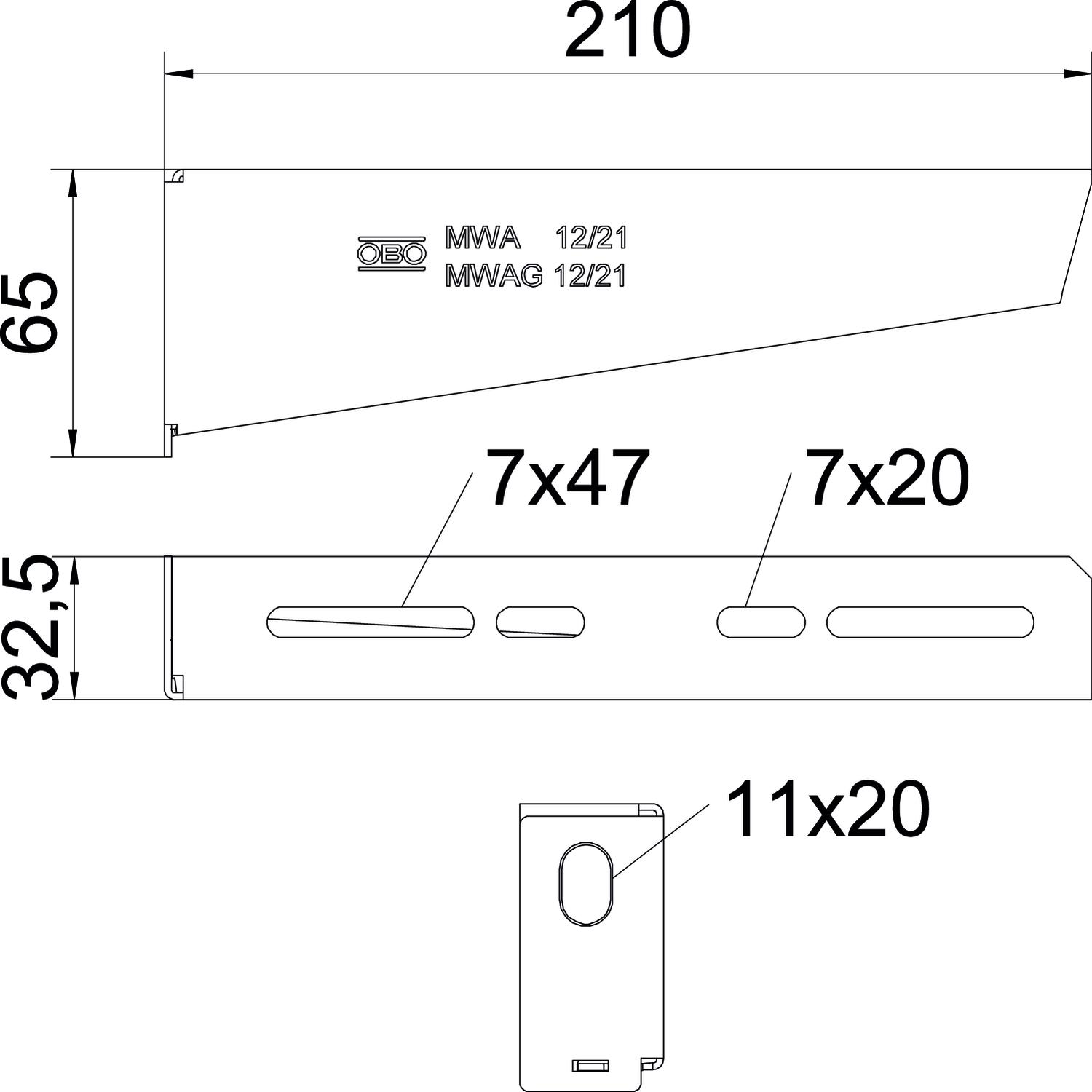

Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 1,7774 kg CO2e / 1 Piece Colour stainless steel Dimension B210mm Dimension A 32,5 mm Dimension B 210 mm Dimension H 65 mm Dimension L 210 mm F in kN 1,2 kN Height 65 mm Height 2,56 in Hole diameter 11 mm Length 32,5 mm Maintain electrical functions yes Material Stainless steel 1.4301 Rustproof steel, pickled no Surface Bright, treated Version for Wall and support bracket Width 210 mm Width 8 in - All types
- Downloads
-
Data sheet MWA 12 21S A2 / 6424432 , 0.20MB , pdfEU declaration of conformity MWA 12 21S A2 / 6424432 , 0.11MB , pdfUK Declaration of Conformity MWA 12 21S A2 / 6424432 , 0.09MB , pdfREACH Declaration of conformity MWA 12 21S A2 / 6424432 , 0.12MB , pdfRoHS Declaration of conformity MWA 12 21S A2 / 6424432 , 0.12MB , pdfMounting instructions Mounting instructions, U support systems , 2.02MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
