Wall and support bracket MWA 12 A4
Item no. 6424444 | EAN 4012197253707
- Product description
-

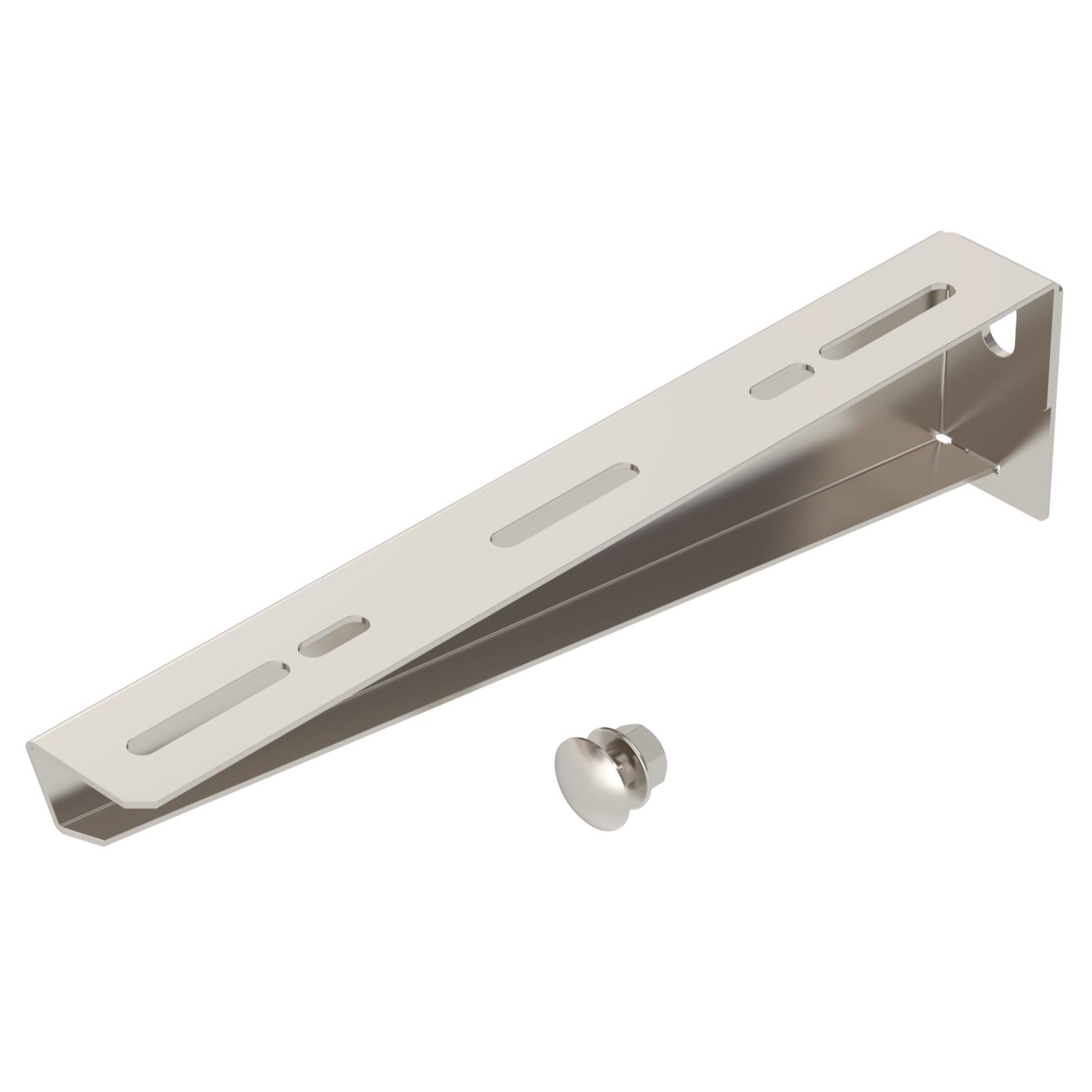

Product descriptionLight-duty wall and support bracket.
Including truss-head bolt M10 x 25 for fastening to
U supports.
-
- Technical data
-
Technical data

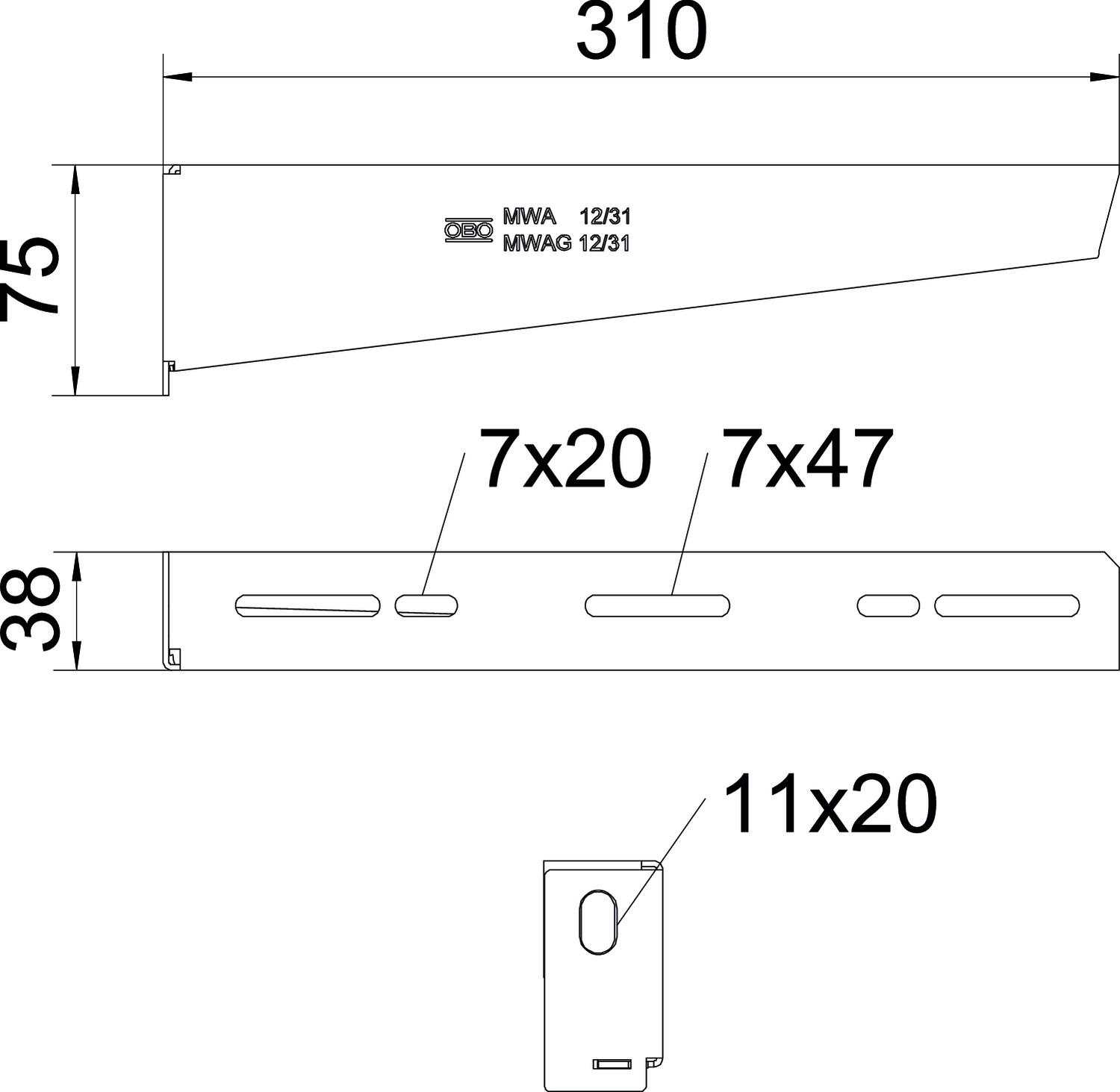

Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 3,3169 kg CO2e / 1 Piece Colour stainless steel Dimension B310mm Dimension A 38 mm Dimension B 310 mm Dimension H 75 mm Dimension L 310 mm F in kN 1,2 kN Height 2,95 in Height 75 mm Hole diameter 11 mm Length 38 mm Maintain electrical functions yes Material Stainless steel 1.4571 Rustproof steel, pickled no Surface Bright, treated Version for Wall and support bracket Width 310 mm Width 12 in - All types
- Downloads
-
Data sheet MWA 12 31S A4 / 6424444 , 0.21MB , pdfEU declaration of conformity MWA 12 31S A4 / 6424444 , 0.11MB , pdfUK Declaration of Conformity MWA 12 31S A4 / 6424444 , 0.09MB , pdfREACH Declaration of conformity MWA 12 31S A4 / 6424444 , 0.12MB , pdfRoHS Declaration of conformity MWA 12 31S A4 / 6424444 , 0.12MB , pdfMounting instructions Mounting instructions, U support systems , 2.02MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
