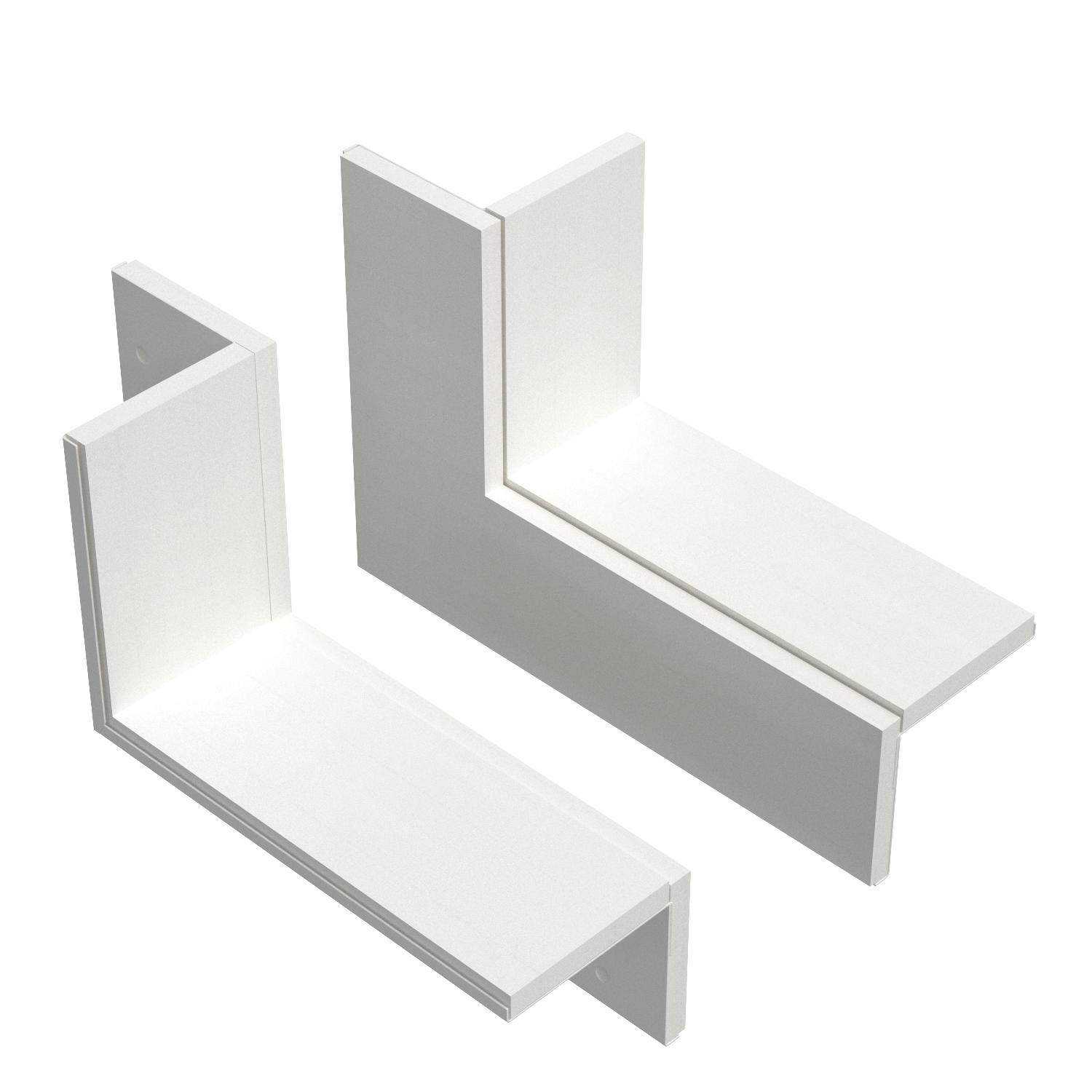

Wall connection set, 2-sided, for corner mounting, duct height 120 mm, pure white

Item no. 7218144 | EAN 4012197310417

7218144 / PLM CC 1220 RW
Pure white; RAL 9010
Product description
Product description
Wall connection collar, 2-sided, with integrated seal for PYROLINE® Rapid PLM installation duct. For mounting in the area of wall and ceiling connections as well as wall penetrations in room corners. Set consisting of 2 opposing components, suitable for ceiling or wall mounting of the installation duct.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories yes
Colour Pure white; RAL 9010

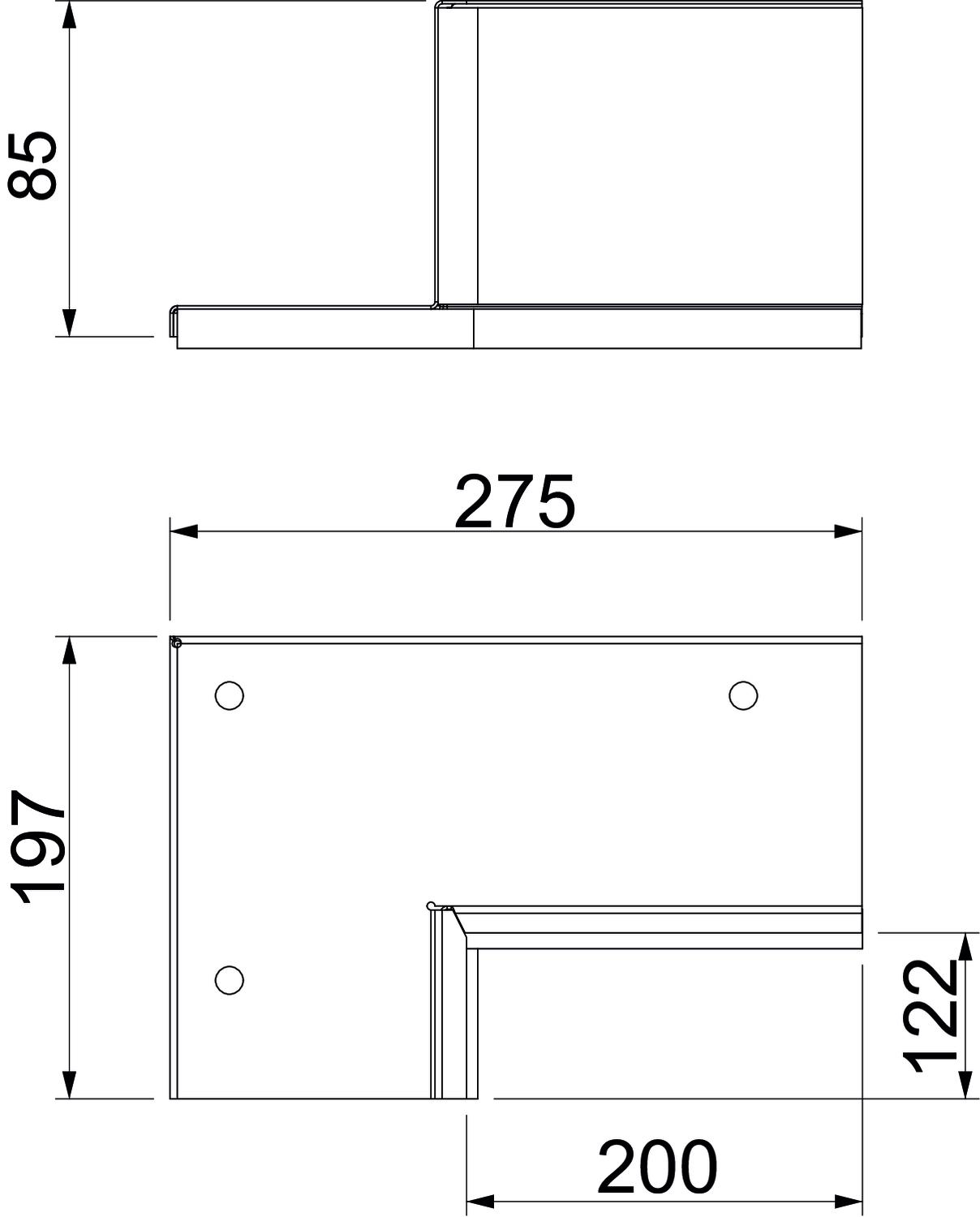

Dimension 85x275x197
Dimension b 200 mm
Dimension B 275 mm
Dimension d 122 mm
Dimension H 197 mm
Material Steel
Spare part no
Surface Powder-coated
Type of accessory Wall connection collar
All types

All types

Types Colour Item no. Quantity SSU
PLM CC 1220 RW Pure white; RAL 9010 7218144
1 piece
Downloads

Download

EU declaration of conformity PLM CC 1220 RW / 7218144 , 0.11MB , pdf
Download

No invitation to tender text is available for this product.
