Washer A2 16 | | 8.4 | 1.6 | M8
morepic-1 morepic-2

Washer A2

Item no. 3402312 | EAN 4012195300557

Product description
Product description
Washer according to DIN 125, shape A, for universal use.
  • Communautés Européennes, EC declaration of conformity according to EC directives

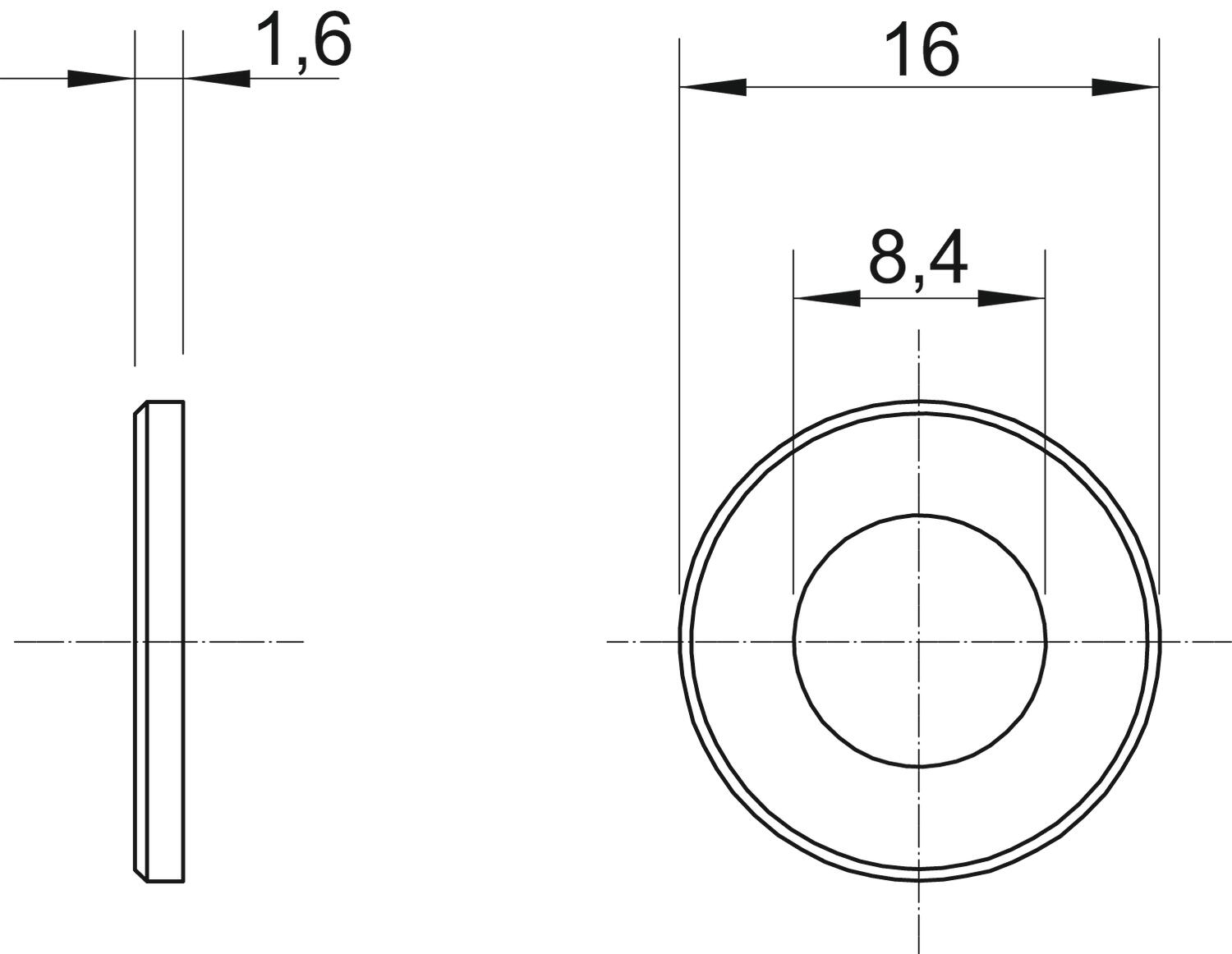

Technical data

Technical data

Diameter 16 mm
Dimension M8
Dimension d 8,4 mm
Dimension d min. 16 mm
Dimension h 1,6 mm
External diameter 16 mm
Faceted no
Hole diameter 8,4 mm
Hole shape Round
Inner diameter 8,4 mm
Material Stainless steel
Material thickness 1,6 mm
Plate thickness 0,06 in
Surface Bright, treated
Thread M8
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
WS M6 D12 A2 12 mm 6.4 mm 1.6 mm M6 3402304
100 piece
WS M8 D16 A2 16 mm 8.4 mm 1.6 mm M8 3402312
100 piece
WS M10 D20 A2 20 mm 10.5 mm 2 mm M10 3402320
100 piece
WS M12 D24 A2 24 mm 13 mm 2.5 mm M12 3402339
100 piece
