Wiring trunking, type LK4 15015 2000 | 15 | 15 | Base perforation | Stone grey; RAL 7030

Wiring trunking, type LK4 15015

Item no. 6178001 | EAN 4012196000050

Item no. / Types	6178001 / LK4 15015

Length	2000 mm

Width	15 mm

Height	15 mm

Fastening type	Base perforation

Colour	Stone grey; RAL 7030

Product description

Product description

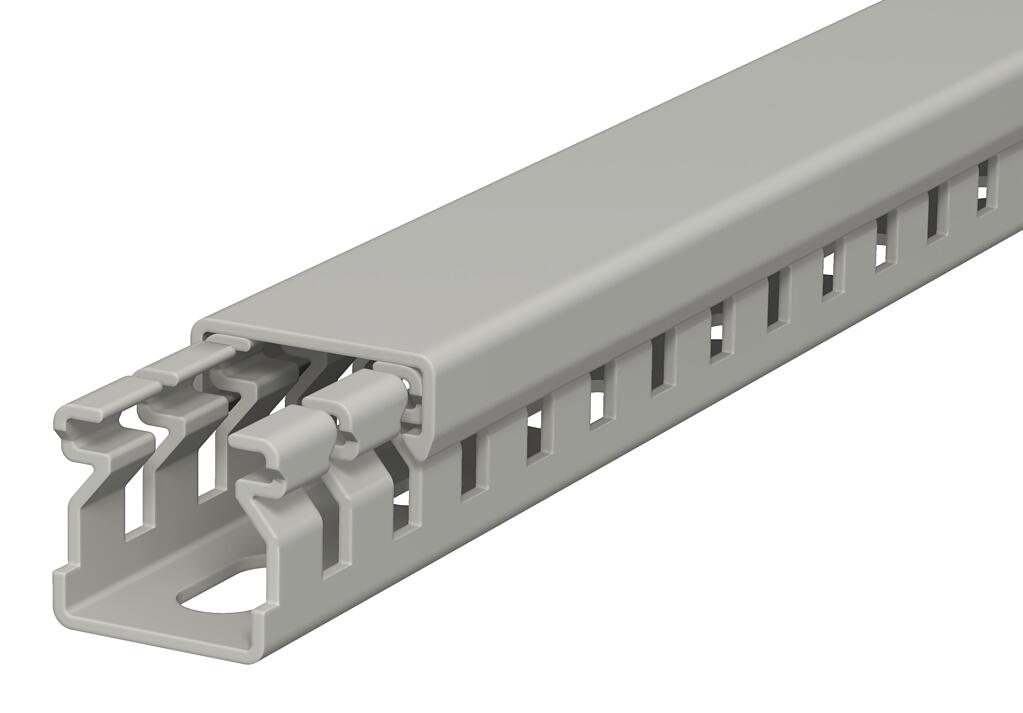

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.

Technical data

Technical data

Colour	Stone grey; RAL 7030
CO₂ Footprint (GWP) Cradle-to-Gate	0,233 kg CO₂e / 1 Meter
Creepage current-resistant	yes

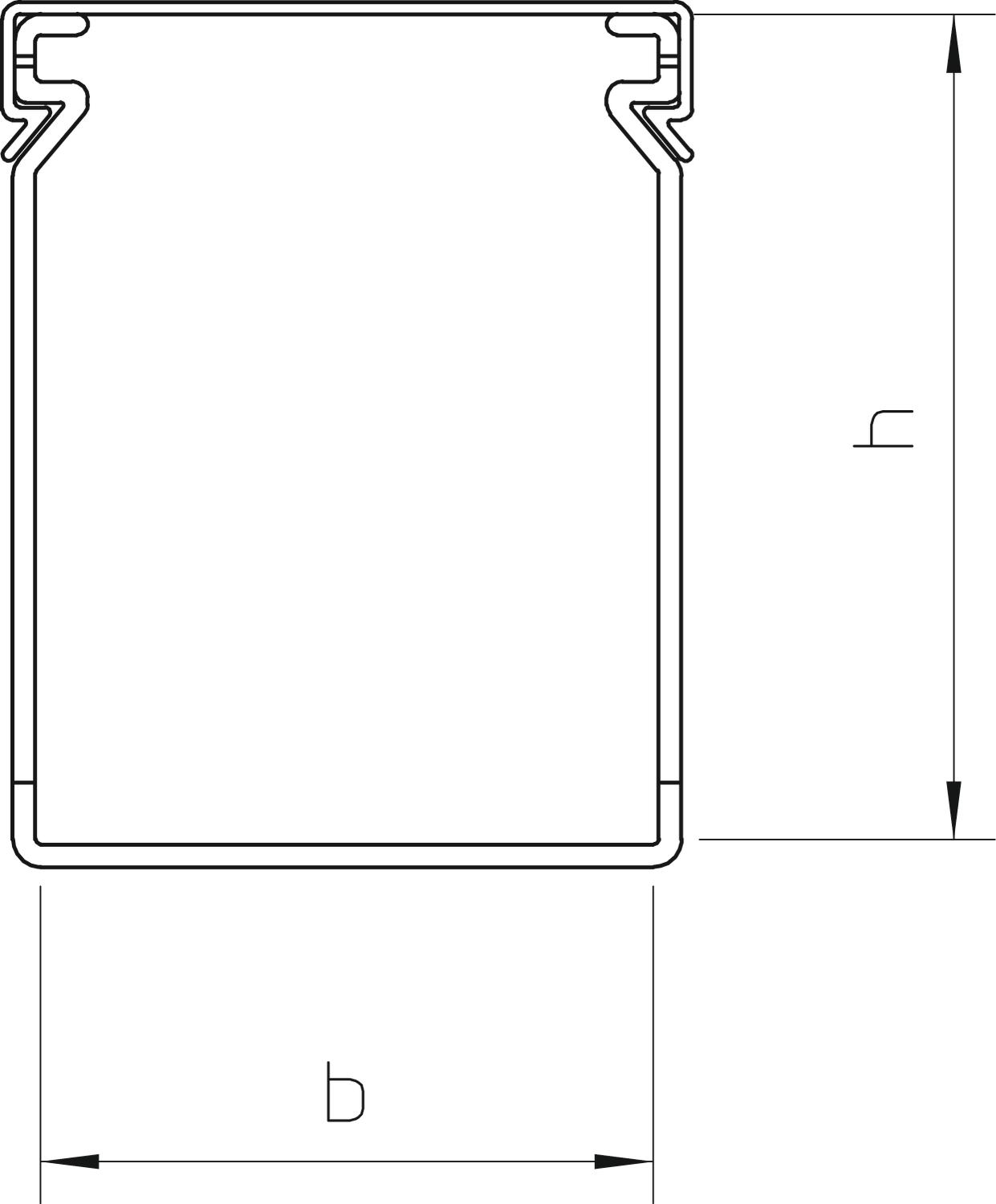

Dimension	15x15x2000
Fastening type	Base perforation
Flexible	no
Halogen-free	no
Height	15 mm
Length	2000 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Self-extinguishing	yes
Side wall version	Profile (open)
Slot spacing	10 mm
Slot width	4 mm
Usable cross-section	1,9 cm²
Width	15 mm
With cover	yes

All types

All types

Types	Length	Width	Height	Fastening type	Colour	Item no.	Quantity	SSU
LK4 15015	2000 mm	15 mm	15 mm	Base perforation	Stone grey; RAL 7030	6178001	m	2 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Spreading rivet, KSN 1	KSN1	6178520	piece	100 piece
Body-bound rivet, KSN 22	KSN22	6178525	piece	100 piece
Plastic rivet tool KNW1	KNW1	6178527	piece	1 piece
Plastic rivet tool KNW2	KNW2	6178529	piece	1 piece
Release pliers	AKZ2	6178533	piece	1 piece
Spacer	AH1	6178540	piece	100 piece
Spacer	AH2	6178542	piece	100 piece
