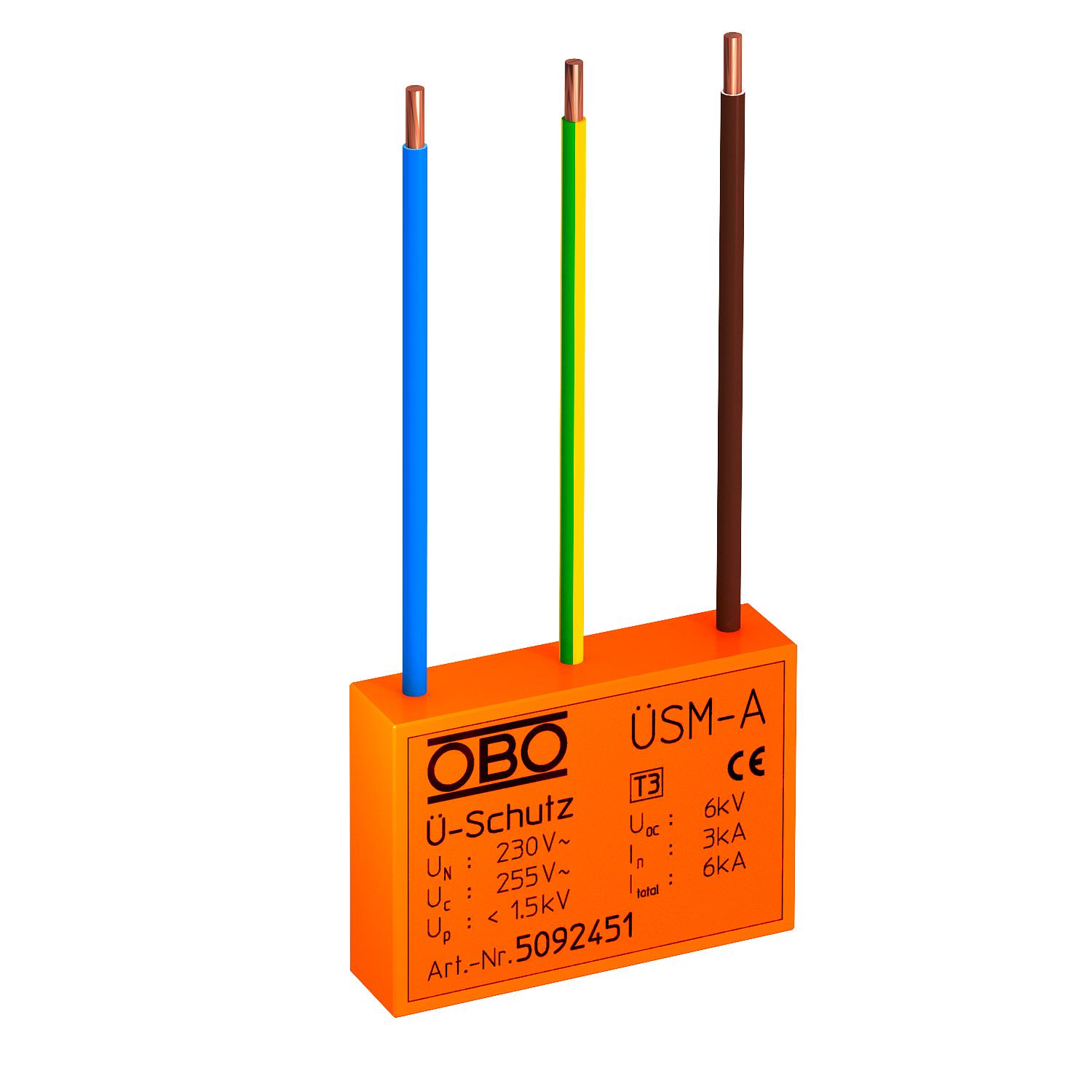

Surge protection module 230 V

Name: Surge protection module 230 V
Brand: OBO Bettermann
SKU: 5092451

Item no. 5092451 | EAN 4012195080886

Product description

Product description

Surge protection module type 3 to DIN EN 61643-11 for 230 V power grids.

• With audible defect signal
• With low construction height
• Halogen-free plastic (UL 94 V-0)
• Y circuit

Application: Universally applicable for all installation systems.

Technical data

Technical data

Cable type for surge protection devices	Power cable AV
Combined voltage protection level [L-PE]	1500 kV
Dimension	255V
Installation type	Miscellaneous
Lightning protection zone LPZ	2→3
Max. mains-side overcurrent protection	16
Maximum back-up fuse	16 A
Maximum continuous voltage AC	255
Maximum discharge current (8/20 μs)	6 kA
Network form	Other
Nominal discharge current (8/20 µs)	3 kA
Nominal voltage AC (50/60 Hz)	230 V

OBO_Nominal load current (input/output terminal)	16 A
Operating temperature, max.	60 °C
Operating temperature, min.	-15 °C
Pole version	Other
Protection level wire-earth	1500 V
Protection level [L-N]	≤1500
Response time	<25 ns
Signalling on device	Acoustic
SPD to EN 61643-11	Type 3
SPD to IEC 61643-1	Class III
Version for	Acoustic operating display
